Запчасти Case IH 8500 (9-038) - FERTILIZER FEED CONTROLS, UNITS WITH 12 INCH ROW SPACING, 45 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS

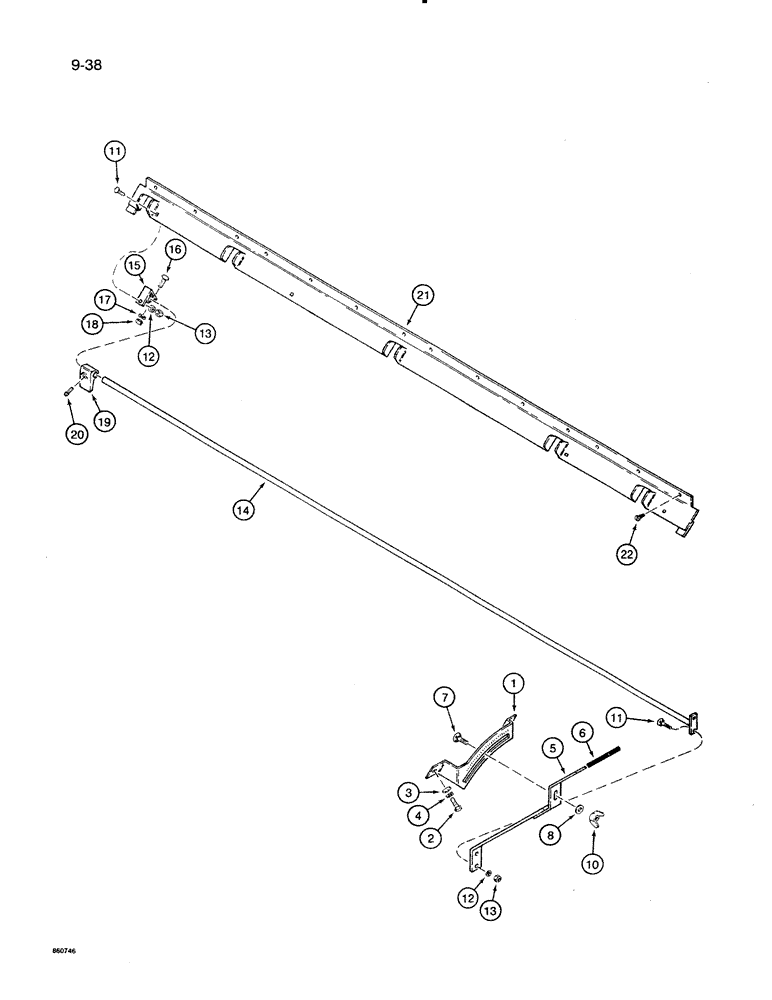

Схема запчастей Case IH 8500 - (9-038) - FERTILIZER FEED CONTROLS, UNITS WITH 12 INCH ROW SPACING, 45 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS
2
3
11
11
13
18
14
1
10
17
15
12
5
7
4
6
22
12
20
8
13
21
16
19

Артикул

Название

Примечание

Количество

1

842012C1

INDICATOR

- feed, fertilizer

1шт.

2

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1"

2шт.

3

619856R1

WASHER

- flat, 3/8"

2шт.

4

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

843087C2

LEVER

- control, fertilizer feed

1шт.

6

842315C1

GRIP

- rubber, lever

1шт.

7

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - carriage head, 3/8" - 16 NC x 1"

1шт.

8

120394

WASHER,3/8", SAE

WASHER - flat, 3/8"

1шт.

10

1333923C1

NUT

- winged, 3/8" - 16 NC

1шт.

11

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT - carriage head, 1/4" - 20 NC x 3/4"

6шт.

12

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

13

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

14

842936C1

ROD ASSY.

ROD - control, fertilizer gate

1шт.

15

603455R1

LEVER GUIDE

SUPPORT - control rod

4шт.

16

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage head, 3/8" - 16 NC x 3/4"

4шт.

17

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

18

120377

NUT,3/8" - 16, Gr 5

4шт.

19

842464C1

DOOR

GATE - control, fertilizer feed

5шт.

20

178758

SET SCREW,Sq Hd, 5/16" - 18 x 3/4", Cup Pt

SCREW - set, square head, 5/16" - 18 NC x 3/4"

5шт.

21

843031C1

PANEL

- back, fertilizer feed control

1шт.

22

850677C1

SCREW,Hex Wash Hd, 5/16"-18 x 1/2"

- hex head, self-tapping, 5/16" - 18 NC x 1/2"

14шт.

Выбрано товаров: 21
