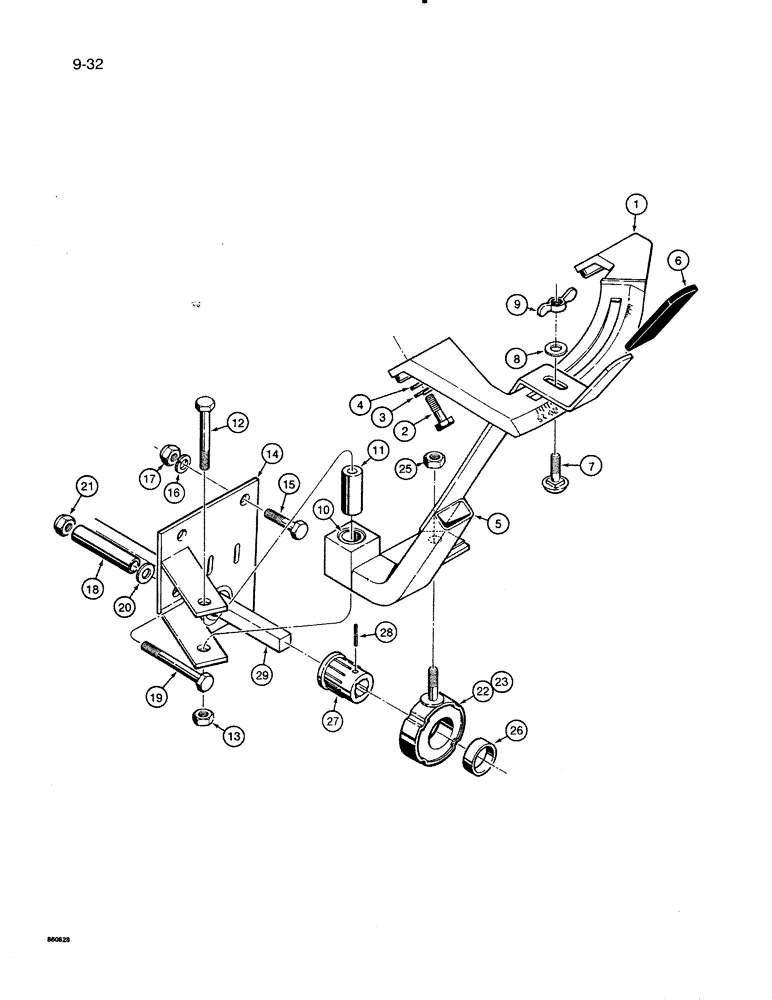

Запчасти Case IH 8500 (9-032) - GRAIN FEED CONTROLS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
842176C1
INDICATOR
- grain feed control
1шт.
2
113-233
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
- hex, 3/8"-16 NC x 1-3/4", grade 5
2шт.
3
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
4
120394
WASHER,3/8", SAE
WASHER - flat, 3/8"
2шт.
5
843090C1
LEVER
- feed control
1шт.
6
842315C1
GRIP
- control lever
1шт.
7
599577R1
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5
BOLT - carriage head, 3/8" - 16 NC x 1-1/4"
1шт.
8
120394
WASHER,3/8", SAE
WASHER - flat, 3/8"
1шт.
9
1333923C1
NUT
- winged, 3/8" - 16 NC
1шт.
10
1333849C1
BUSHING
- pivot, control lever
1шт.
11
1333866C1
SPACER
- control, Serial Range: lever-bracket
1шт.
12
180191
BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5
- hex head, 1/2" - 13 NC x 3-1/4"
1шт.
13
9413967
LOCK NUT,1/2"-13, GB
NUT - hex, self-locking, 1/2" - 13 NC
1шт.
14
842235C1
SUPPORT
BRACKET - mounting, control lever
1шт.
15
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
- hex head, 3/8" - 16NC x 1"
2шт.
16
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
17
120377
NUT,3/8" - 16, Gr 5
2шт.
18
80438R1
SPACER,3/8" Pipe x 3"
- bracket to frame
1шт.
19
191163
BOLT,Hex, 3/8" - 16 x 4", Gr 5
- hex head, 3/8" - 16 NC x 4"
1шт.
20
619856R1
WASHER
- flat, 3/8"
1шт.
21
230-4216
LOCK NUT,3/8"-16, GA
NUT - hex, self-locking, 3/8 inch NC
1шт.
1279109C91
BEARING ASSY
ASSEMBLY - shift rod
1шт.
22
NSS
NOT SOLD SEPARAT
HOUSING - bearing
1шт.
23
616154R92
BEARING, ROLLER, CYL,16 mm
BEARING - shift rod
1шт.
25
9411655
LOCK NUT,3/8"-16, GB
NUT - hex, self-locking, 3/8" - 16 NC
1шт.
26
609389R1
SPACER
- shift rod bearing
1шт.
27
1279145C1
SPACER
BUSHING - shift, Serial Range: rod-bearing
1шт.
28
19442R1
PIN,3/16" x 1 1/2", Coiled
Bushing to shift rod 3/16" x 1 1/2", Coiled
1шт.
29
REF
INSTRUCTION
SHAFT - grain feed, see pages 9-45 through 9-51 for
1шт.
shaft used with different row spacing
1шт.
Выбрано товаров: 30
