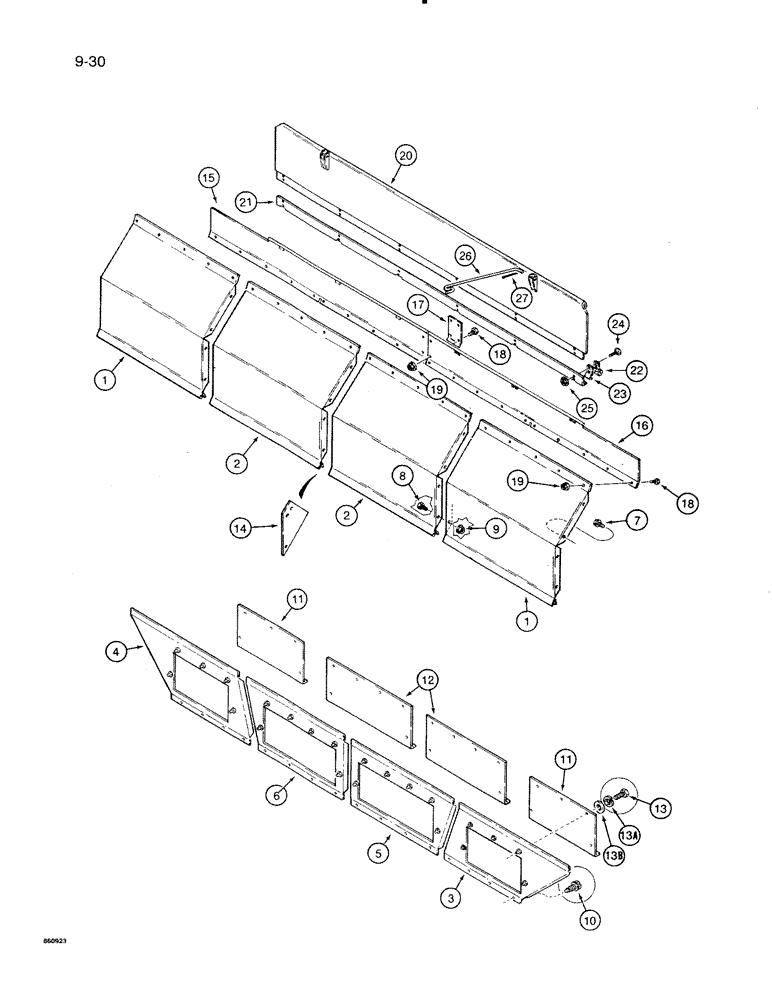

Запчасти Case IH 8500 (9-030) - HOPPER PANELS, COMBINATION GRAIN AND FERTILIZER (09) - CHASSIS/ATTACHMENTS

1

841625C1

PANEL

- hopper, upper, outside

2шт.

2

842939C1

PANEL

- hopper, upper, inside

2шт.

3

88834C1

PANEL ASSY.

PANEL - hopper, lower, right-hand outside

1шт.

4

88833C1

PANEL ASSY.

PANEL - hopper, lower, left-hand outside

1шт.

5

88830C1

PANEL ASSY.

PANEL - hopper, lower, right-hand inside

1шт.

6

88828C1

PANEL ASSY.

PANEL - hopper, lower, left-hand inside

1шт.

7

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

- hex, flange lock, 5/16" - 18 NC x 1/2"

8шт.

8

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex head, 5/16" - 18 NC x 3/4"

27шт.

9

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, flange lock, 5/16" - 18 NC

27шт.

10

850677C1

SCREW,Hex Wash Hd, 5/16"-18 x 1/2"

- hex head, self-tapping, 5/16" - 18 NC x 1/2"

16шт.

11

88838C1

COVER

- panel, used with 88834C1 and 88833C1 panels

1шт.

items 3 and 4

2шт.

12

88839C1

COVER

- panel, used with 88828C1 and 88830C1 panels

1шт.

items 5 and 6

2шт.

13

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex head, 5/16" - 18 NC x 3/4", cover to panel

22шт.

13a

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

22шт.

13b

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 5/16"

22шт.

14

842948C1

SUPPORT

COVER - corner, hopper

3шт.

15

88816C1

PANEL

- top support, left-hand

1шт.

16

88817C1

PANEL

- top support, right-hand

1шт.

17

91264C1

BAR

COVER - support panel

1шт.

18

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

24шт.

19

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, flange lock, 5/16" - 18 NC

24шт.

20

91261C1

COVER

LID - hopper, grain and fertilizer

1шт.

21

88841C1

SHIELD

COVER - hinge, hopper lid

1шт.

22

841774C1

CLAMP

- hinge, outer

6шт.

23

841775C1

CLAMP

- hinge, inner

6шт.

24

598796R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1", Gr 5

BOLT - carriage head, 1/4" - 20 NC x 1"

12шт.

25

480891R1

NUT

- hex, flange lock, 1/4" - 20 NC

12шт.

26

91235C1

ROD ASSY.

ROD - support, hopper lid

2шт.

27

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.
