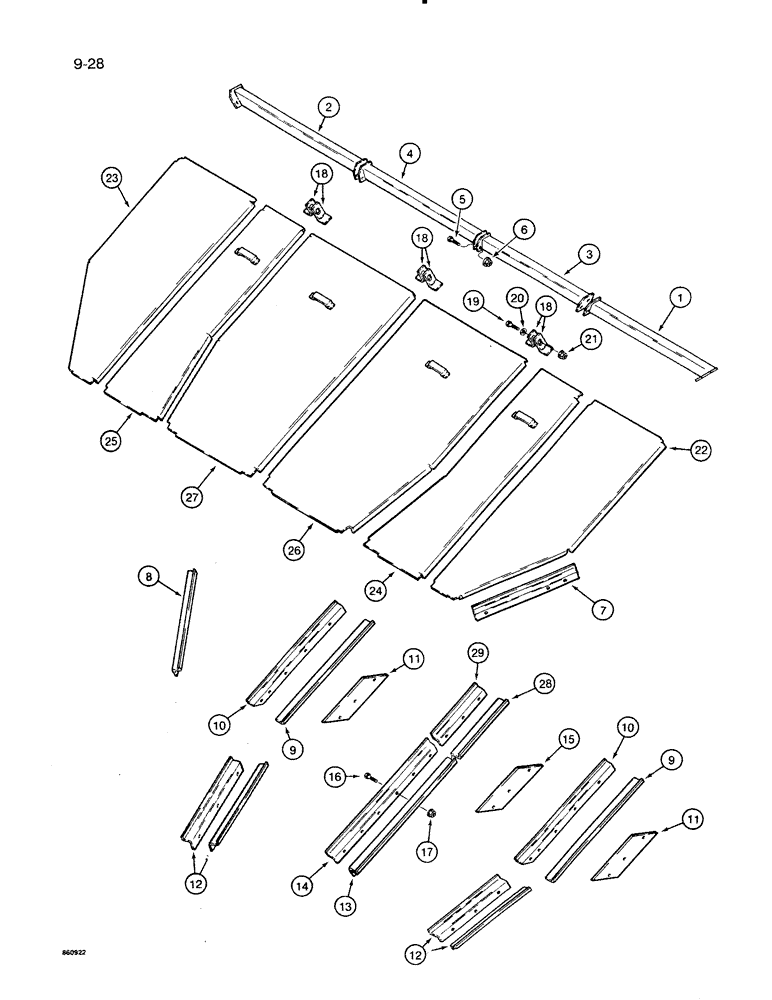

Запчасти Case IH 8500 (9-028) - HOPPER PANELS, ALL FERTILIZER (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
89135C1
BRACKET
BRACE - hopper partition, right-hand outside
1шт.
2
89136C1
BRACKET
BRACE - hopper partition, left-hand outside
1шт.
3
89137C1
BRACKET
BRACE - hopper partition, right-hand inside
1шт.
4
89138C1
BRACKET
BRACE - hopper partition, left-hand inside
1шт.
6
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
- hex, flange lock, 5/16" - 18 NC
10шт.
7
89101C1
SUPPORT
- panel, right-hand, hopper outer
1шт.
8
89102C1
SUPPORT
- panel, left-hand, hopper outer
1шт.
9
89103C1
SUPPORT
- panel, right-hand, outer partition
2шт.
10
89104C1
SUPPORT
- panel, left-hand, outer partition
2шт.
11
88858C1
FILLER
PANEL - filler, outer
2шт.
12
88862C1
SUPPORT
- panel, lower, outer partition
4шт.
13
89105C1
SUPPORT
- panel, right-hand, center partition, lower section
1шт.
14
89106C1
SUPPORT
- panel, left-hand, center partition, lower section
1шт.
15
88859C1
FILLER
PANEL - filler, center
1шт.
16
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
- hex head, 5/16" - 18 NC x 3/4"
35шт.
17
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
- hex, flange lock, 5/16" - 18 NC
35шт.
18
88844C1
SUPPORT
BRACKET - support, upper
6шт.
19
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
- hex head, 5/16" - 18 NC x 3/4"
3шт.
20
120393
BEARING WASHER,5/16", SAE
WASHER - flat, 5/16"
3шт.
21
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
- hex, flange lock, 5/16" - 18 NC
3шт.
22
89111C1
PLATFORM
PANEL - fertilizer, right-hand outer
1шт.
23
89112C1
FLOOR
PANEL - fertilizer, left-hand outer
1шт.
24
89116C1
PLATFORM
PANEL - fertilizer, right-hand inner
1шт.
25
89117C1
PLATFORM
PANEL - fertilizer, left-hand inner
1шт.
26
89118C1
PLATFORM
PANEL - fertilizer, right-hand center
1шт.
27
89119C1
PLATFORM
PANEL - fertilizer, left-hand center
1шт.
28
1336818C1
SUPPORT
- panel, right-hand, center partition, upper section
1шт.
29
1336819C1
SUPPORT
- panel, left-hand, center partition, upper section
1шт.
Выбрано товаров: 29
