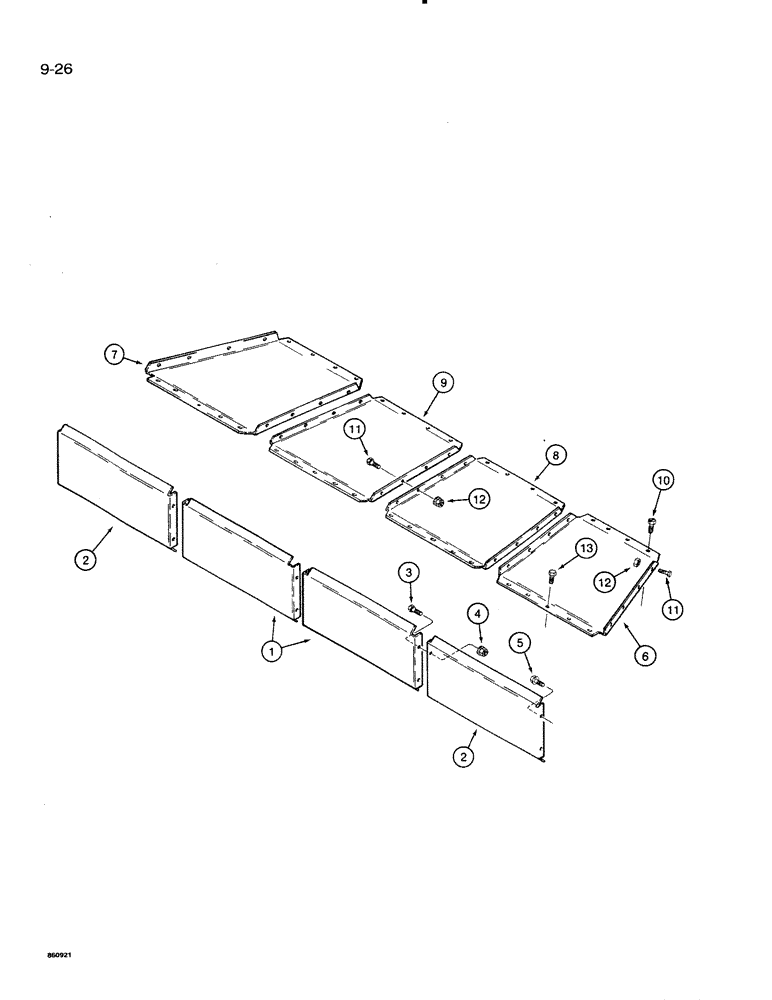

Запчасти Case IH 8500 (9-026) - HOPPER PANELS, ALL GRAIN (09) - CHASSIS/ATTACHMENTS

1

842907C1

PANEL

- hopper, upper, inside

2шт.

2

841244C1

PANEL

- hopper, upper, outside

2шт.

3

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex head, 5/16" - 18 NC x 3/4"

6шт.

4

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, flange lock, 5/16" - 18 NC

6шт.

5

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

- hex, flange lock, 5/16" - 18 NC x 1/2"

4шт.

6

841790C1

PANEL ASSY.

PANEL - hopper, lower, right-hand outside

1шт.

7

841789C1

PANEL

- hopper, lower, left-hand outside

1шт.

8

842916C1

PANEL ASSY.

PANEL - hopper, lower, right-hand inside

1шт.

9

842914C1

PANEL ASSY.

PANEL - hopper, lower, left-hand inside

1шт.

10

850677C1

SCREW,Hex Wash Hd, 5/16"-18 x 1/2"

- hex head, self-tapping, 5/16" - 18 NC X 1/2"

16шт.

11

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex head, 5/16" - 18 NC x 3/4"

20шт.

12

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, flange lock, 5/16" - 18 NC

20шт.

13

850679C1

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 3/4"

SCREW - hex head, self-tapping, 5/16" - 18 NC x 3/4"

20шт.
