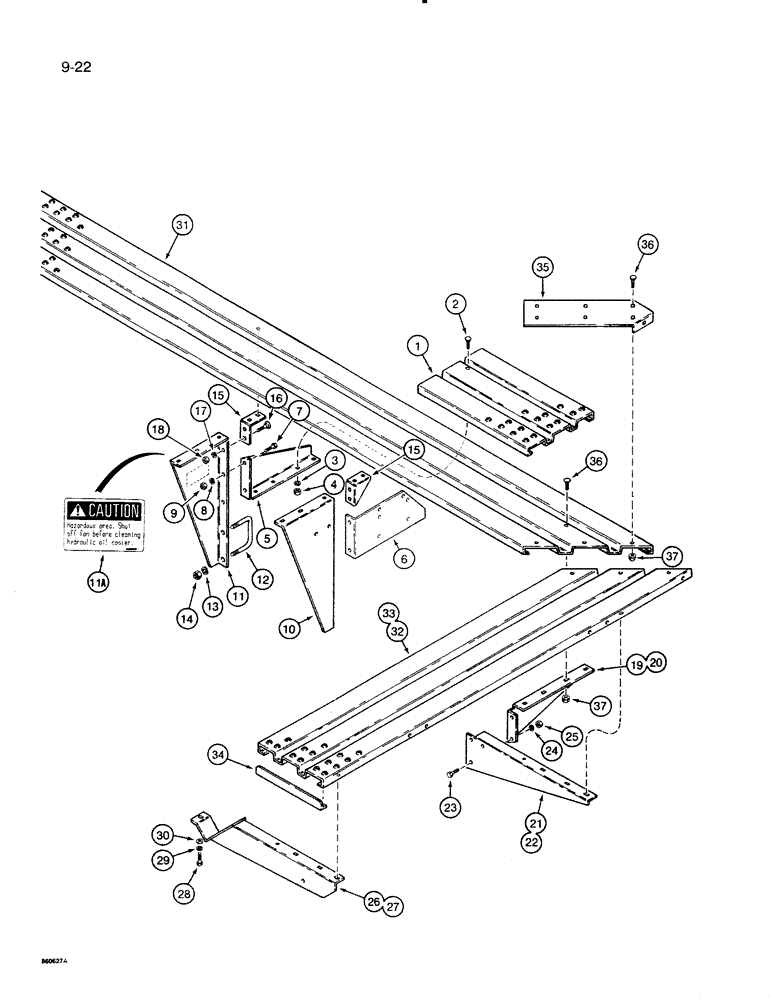

Запчасти Case IH 8500 (9-022) - HOPPER STEPS AND PLATFORM, UNITS WITH SIDE GUARD RAILS (09) - CHASSIS/ATTACHMENTS

1

842313C1

ASSEMBLY

STEP - front, platform

1шт.

2

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - carriage head, 5/16" - 18 NC x 3/4"

8шт.

3

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

4

120376

NUT,5/16"-18, G5

8шт.

5

841444C1

SUPPORT

- front step, left-hand

1шт.

6

842976C2

SUPPORT

- front step and hydraulic tank, right-hand

1шт.

7

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex head, 3/8" - 16 NC x 3/4"

4шт.

8

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

9

120377

NUT,3/8" - 16, Gr 5

4шт.

10

842974C1

SUPPORT

- front platform, right-hand inner

1шт.

11

1337047C1

SUPPORT

- front platform, left-hand inner, includes decal

1шт.

11a

842529C1

PRODUCT GRAPHIC

DECAL - "Caution", cooler fan hazard

1шт.

12

842977C1

BOLT

- special, front support

2шт.

13

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

14

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8" - 11NC

4шт.

15

842307C1

BRACKET

- front support

2шт.

16

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - carriage head, 5/16" - 18 NC x 3/4"

4шт.

17

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

18

120376

NUT,5/16"-18, G5

4шт.

19

842962C1

SUPPORT

- front platform, right-hand outer

1шт.

20

842963C1

SUPPORT

- front platform, left-hand outer

1шт.

21

841391C1

SUPPORT

- side platform, right-hand front

1шт.

22

841390C1

SUPPORT

- side platform, left-hand front

1шт.

23

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

- hex head, 1/2" - 13 NC x 1-1/4"

6шт.

24

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

25

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

26

842992C1

SUPPORT ASSY.

SUPPORT - side platform, right-hand rear

1шт.

27

842993C1

SUPPORT ASSY.

SUPPORT - side platform, left-hand rear

1шт.

28

413-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5

- hex head, 5/8" - 11 NC x 1"

4шт.

29

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

30

21782R1

WASHER

- flat, 5/8"

4шт.

31

842964C1

ASSEMBLY

PLATFORM - front

1шт.

32

842965C1

ASSEMBLY

PLATFORM - side, right-hand

1шт.

33

842966C1

ASSEMBLY

PLATFORM - side, left-hand

1шт.

34

842760C1

ANGLE

COVER - platform end

2шт.

35

842628C1

BRACKET

COVER - joint, side to front platform

2шт.

36

598801R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT - carriage head, 5/16" - 18 NC x 1/2"

52шт.

37

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, flange lock, 5/16" - 18 NC

52шт.
