Запчасти Case IH 8500 (9-020) - HOPPER GUARD RAILS, UNITS WITHOUT SIDE GUARD RAILS (09) - CHASSIS/ATTACHMENTS

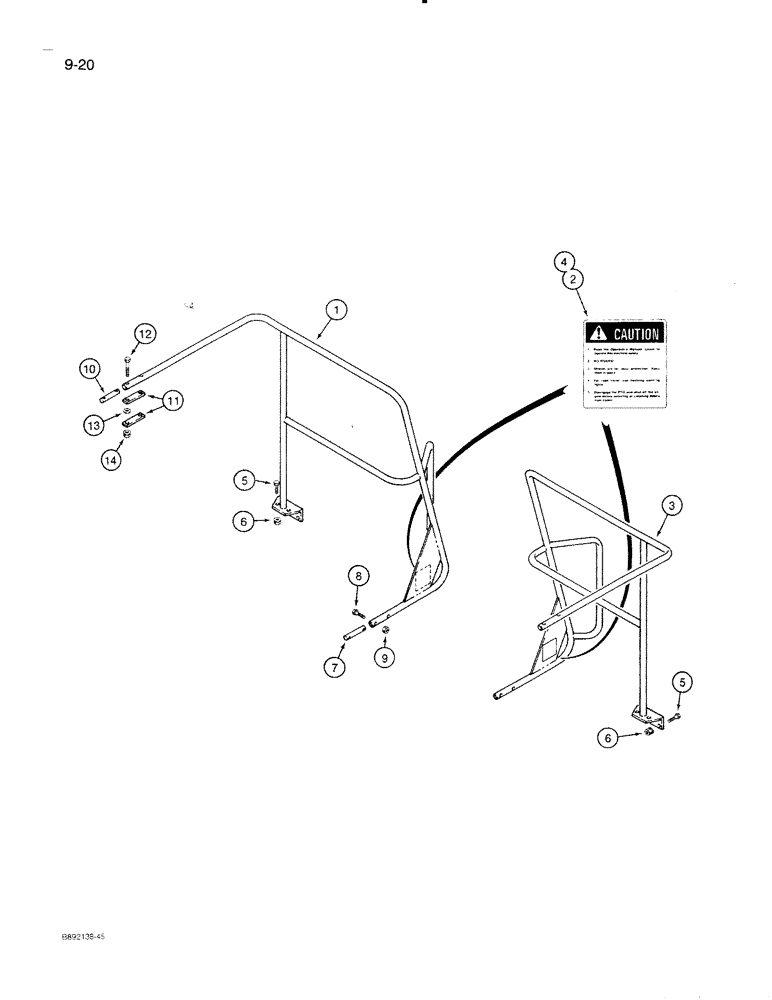

Схема запчастей Case IH 8500 - (9-020) - HOPPER GUARD RAILS, UNITS WITHOUT SIDE GUARD RAILS (09) - CHASSIS/ATTACHMENTS
6
4
14
7
6
2
11
1
3
8
5
9
13
10
5
12

Артикул

Название

Примечание

Количество

1980918C1

RAIL

ASSEMBLY - guard, front, left-hand

1шт.

1

NSS

NOT SOLD SEPARAT

RAIL - guard, front, left-hand

1шт.

2

88934C1

PRODUCT GRAPHIC

DECAL - "Caution", general instruction

1шт.

1980920C1

RAIL

ASSEMBLY - guard, front, right-hand

1шт.

3

NSS

NOT SOLD SEPARAT

RAIL - guard, front, right-hand

1шт.

4

88934C1

PRODUCT GRAPHIC

DECAL - "Caution", general instruction

1шт.

5

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex head, 3/8" - 16 NC x 3/4"

8шт.

6

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, flange lock, 3/8" - 16 NC

8шт.

7

842296C1

PIN

- end, guard rail

2шт.

8

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8"-16 NC x 1-3/4", grade 5

4шт.

9

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, self-locking, 3/8" - 16 NC

4шт.

10

842296C1

PIN

- end, guard rail

2шт.

11

842767C1

BAR

- spacer, guard, Serial Range: rail-hopper

4шт.

12

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex head, 3/8" - 16 NC x 2-1/2"

4шт.

13

842798C1

SEALING WASHER

- special sealing, 3/8"

4шт.

14

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, flange lock, 3/8" - 16 NC

4шт.

Выбрано товаров: 16
