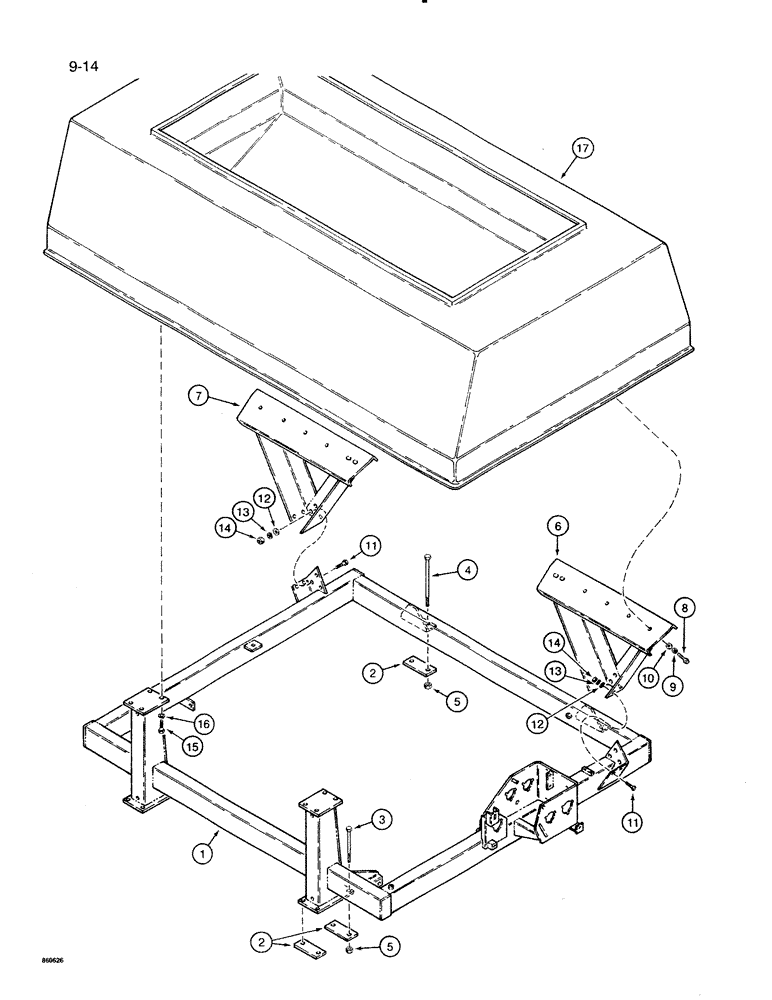

Запчасти Case IH 8500 (9-014) - HOPPER FRAME AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

842999C3

FRAME

- mounting, hopper

1шт.

2

842981C1

BAR

CLAMP -, Serial Range: frame-cart

6шт.

3

19827R1

BOLT,Hex, 5/8" - 11 x 8", Gr 5

- hex head, 5/8" - 11 NC x 8"

8шт.

4

28118R1

BOLT,Hex, 5/8" - 11 x 12", Gr 5

- hex head, 5/8" - 11 NC x 12"

4шт.

5

9413969

NUT,5/8"-11, GB

- hex, self-locking, 5/8" - 11 NC

12шт.

6

842958C1

SUPPORT

- hopper, right-hand front

1шт.

7

842959C1

SUPPORT

- hopper, left-hand front

1шт.

8

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1"

12шт.

9

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

10

120394

WASHER,3/8", SAE

WASHER - flat, 3/8"

12шт.

11

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

- hex head, 1/2" - 13 NC x 1-1/4"

10шт.

12

20601R1

WASHER

- flat, 1/2"

10шт.

13

120384

WASHER,1/2"

LOCK, 1/2"

10шт.

14

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

10шт.

15

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

- hex head, 5/8" - 11 NC x 1-1/2"

8шт.

16

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

17

842929C1

HOPPER

- grain and fertilizer, see page 9-17 for

1шт.

hopper cover and related parts

1шт.
