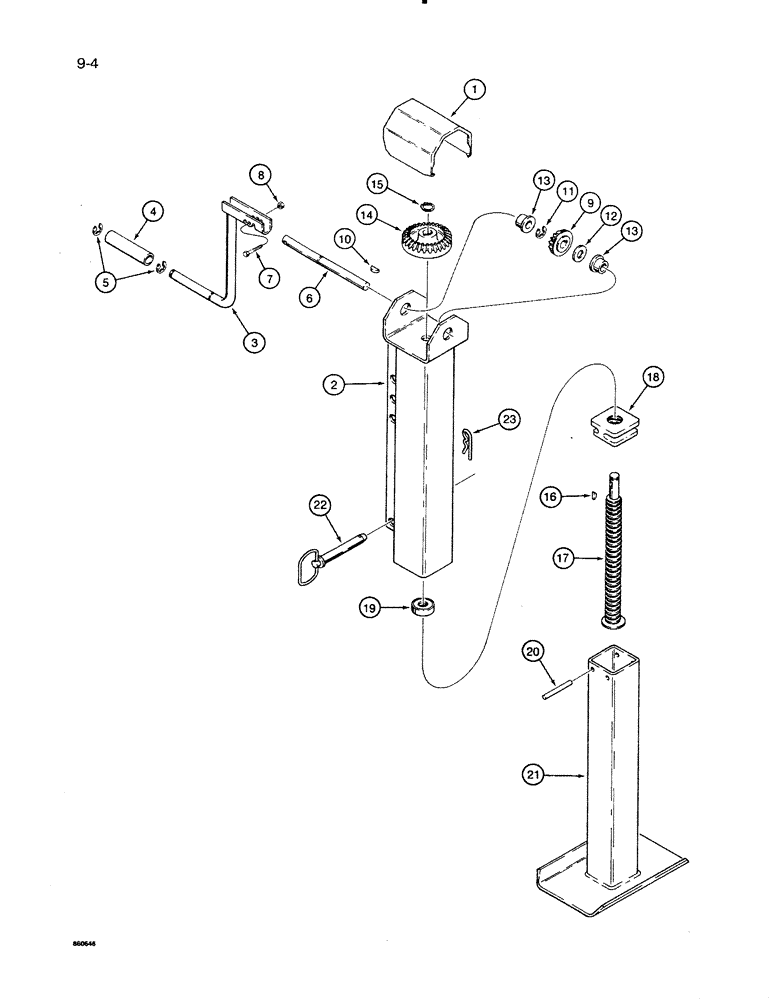

Запчасти Case IH 8500 (9-004) - CART FRAME JACK (09) - CHASSIS/ATTACHMENTS

1337451C1

JACK

ASSEMBLY - frame

1шт.

1

1337481C1

COVER

- gear

1шт.

2

1337484C1

HOUSING

FRAME - jack

1шт.

3

1337486C1

HANDLE

- jack

1шт.

4

1337487C1

GRIP

- jack handle

1шт.

5

154665R1

SNAP RING,#75, Ext

Ring, Snap, , grip to handle #75, Ext

2шт.

6

1337485C1

CRANK

SHAFT - jack crank

1шт.

7

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

- hex head, 5/16" - 18 NC x 1-1/2"

1шт.

8

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

1шт.

9

1337453C1

GEAR

- bevel, small, 15 tooth

1шт.

10

124549

WOODRUFF KEY,#9, 3/16" x 3/4", HT

Gear to shaft #9, 3/16" x 3/4", HT

1шт.

11

378066R1

SNAP RING,#X74, .616" Dia, E-Type

Ring, Retaining, , gear to shaft #X74, .616" Dia, E-Type

1шт.

12

1337483C1

BUSHING

SPACER - bevel gear

1шт.

13

1337482C1

BUSHING

- shaft to jack frame

2шт.

14

1337452C1

GEAR

- bevel, large, 30 tooth

1шт.

15

23090R1

SNAP RING,#75, Ext

Ring, Snap, , gear to jack screw #75, Ext

1шт.

16

124549

WOODRUFF KEY,#9, 3/16" x 3/4", HT

Gear to shaft #9, 3/16" x 3/4", HT

1шт.

17

1337490C1

JACK SCREW

- jack

1шт.

18

1337489C1

NUT

PLATE - threaded, jack screw

1шт.

19

1337488C1

THRUST BEARING

- thrust

1шт.

20

1337491C1

PIN

-, Serial Range: plate-stand

2шт.

21

1337492C1

STAND

BASE - jack

1шт.

22

1337462C1

PIN

- jack, transport

1шт.

23

480523R1

HAIR PIN COTTER

jack pin retainer

1шт.
