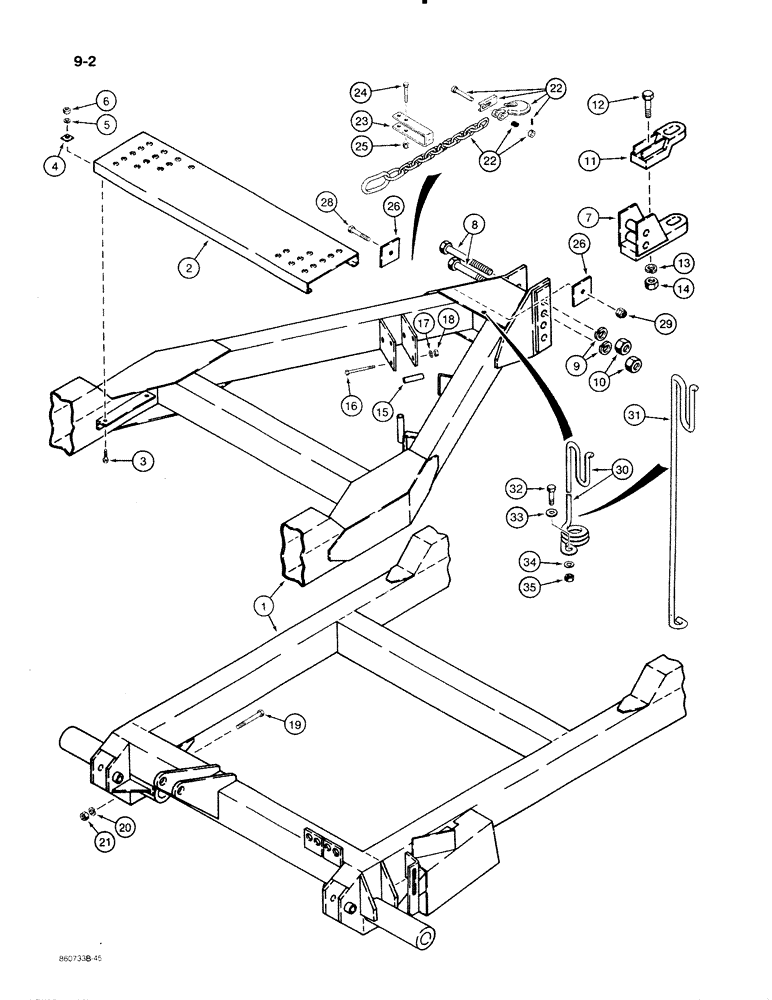

Запчасти Case IH 8500 (9-002) - CART FRAME (09) - CHASSIS/ATTACHMENTS

1

1337461C1

FUNNEL

FRAME - hopper cart

1шт.

2

1337433C1

STEP

- cart frame

1шт.

3

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4"

4шт.

4

1337463C1

RETAINER

-, Serial Range: step-bracket

4шт.

5

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

6

120377

NUT,3/8" - 16, Gr 5

4шт.

7

1337435C1

STRAP

HITCH - cart, lower section

1шт.

8

27557R1

BOLT,Hex, 1 1/4" - 7 x 9 1/2", Gr 8

- hex head, 1-1/4" - 7 NC x 9-1/2"

2шт.

9

131050

WASHER,1 1/4"

1 1/4"

2шт.

10

9849649

NUT,1 1/4"-7, G5

2шт.

11

1337434C1

TRAILER HITCH

HITCH - cart, upper section

1шт.

12

113-902

BOLT,Hex, 1" - 8 x 3-1/2", Gr 5

- hex head, 1" - 8 NC x 3-1/2"

1шт.

13

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

14

9849633

NUT,1"-8, G5

1шт.

15

1337478C1

TUBE

SPACER - bolt, jack mounting

2шт.

16

433163

BOLT,Hex, 1/2" - 13 x 5", Gr 5

- hex head, 1/2" - 13 NC x 5"

2шт.

17

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

18

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

19

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

- hex head, 3/4" - 10 NC x 5" , Course threads

2шт.

20

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

21

280954

NUT,3/4"-10, G5

2шт.

22

822544C2

CHAIN (AG)

CHAIN ASSEMBLY - transport

1шт.

22a

1279720C91

CHAIN (AG)

KIT - hardware, chain, not shown

1шт.

23

1279163C1

CLEVIS COUPLING

SUPPORT -, Serial Range: chain-drawbar

1шт.

24

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

- hex head, 5/8" - 11 NC x 3-1/2"

1шт.

25

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

1шт.

26

822395C1

BAR

PLATE - retainer

2шт.

27

RESERVED

1шт.

28

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

- hex head, 3/4" - 10 NC X 3-1/2"

1шт.

29

22244R1

LOCK NUT

- hex, self-locking, 3/4" - 10 NC

1шт.

30

814888C1

SPRING

SUPPORT - hose, spring type, if used

1шт.

31

651793R2

SUPPORT

- hose, rigid type, if used

1шт.

32

NLS

NO LONGER SERVICED

BOLT - hex head, 5/8" - 11 NC X 1-3/4"

1шт.

33

464623R1

WASHER

- flat, 5/8"

1шт.

34

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

35

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8" - 11 NC

1шт.
