(8-54) - STROKE CONTROL CYLINDER, USED WITH CESSNA GLAND TYPE CYLINDERS, 45 FOOT WIDE DRILL

Запчасти Case IH 8500 (8-54) - STROKE CONTROL CYLINDER, USED WITH CESSNA GLAND TYPE CYLINDERS, 45 FOOT WIDE DRILL (08) - HYDRAULICS

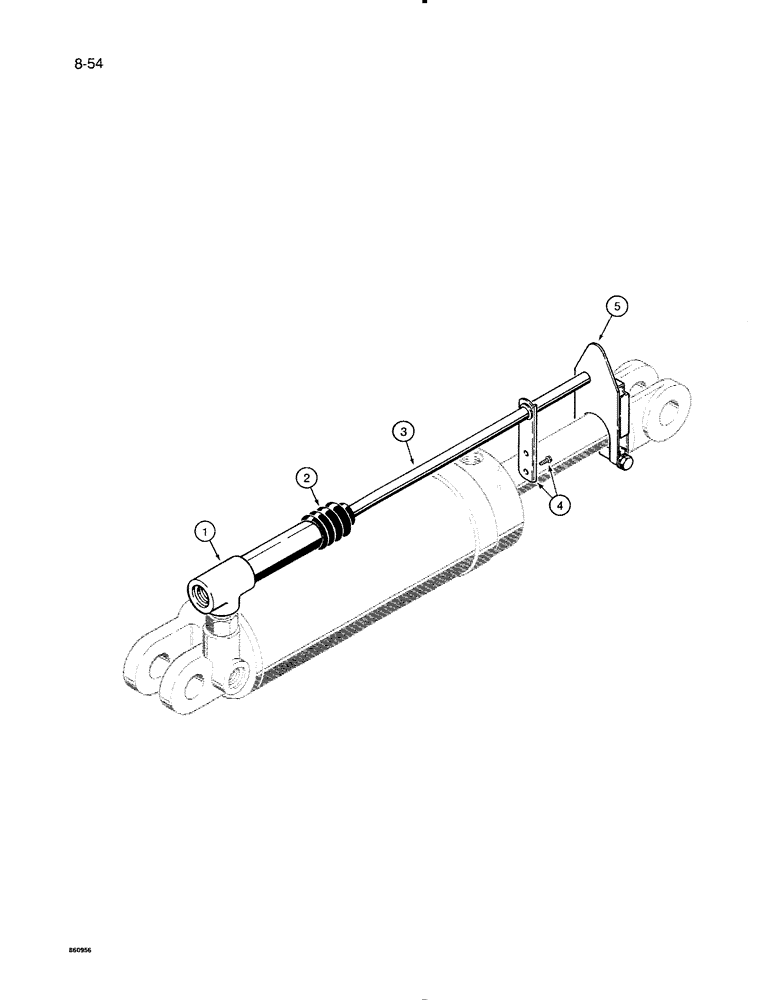

Схема запчастей Case IH 8500 - (8-54) - STROKE CONTROL CYLINDER, USED WITH CESSNA GLAND TYPE CYLINDERS, 45 FOOT WIDE DRILL (08) - HYDRAULICS
5
3
2
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1337464C1

CONTROL

CYLINDER ASSEMBLY - stroke control

1шт.

1

50-2202T1

HOUSING

- cylinder

1шт.

2

50-2201T1

SEAL

- dust, housing

1шт.

3

1337467C1

ROD

- push, cylinder

1шт.

4

50-2204T1

GUIDE

- push rod, includes mounting screw

1шт.

5

50-2222T1

CLAMP

- stop, cylinder, includes mounting

1шт.

hardware

1шт.

6

1337479C1

SEAL KIT

- seal, cylinder, stroke control, not shown

1шт.
