Запчасти Case IH 8500 (8-52) - FRAME FOLDING LINES, 33 FOOT WIDE DRILL (08) - HYDRAULICS

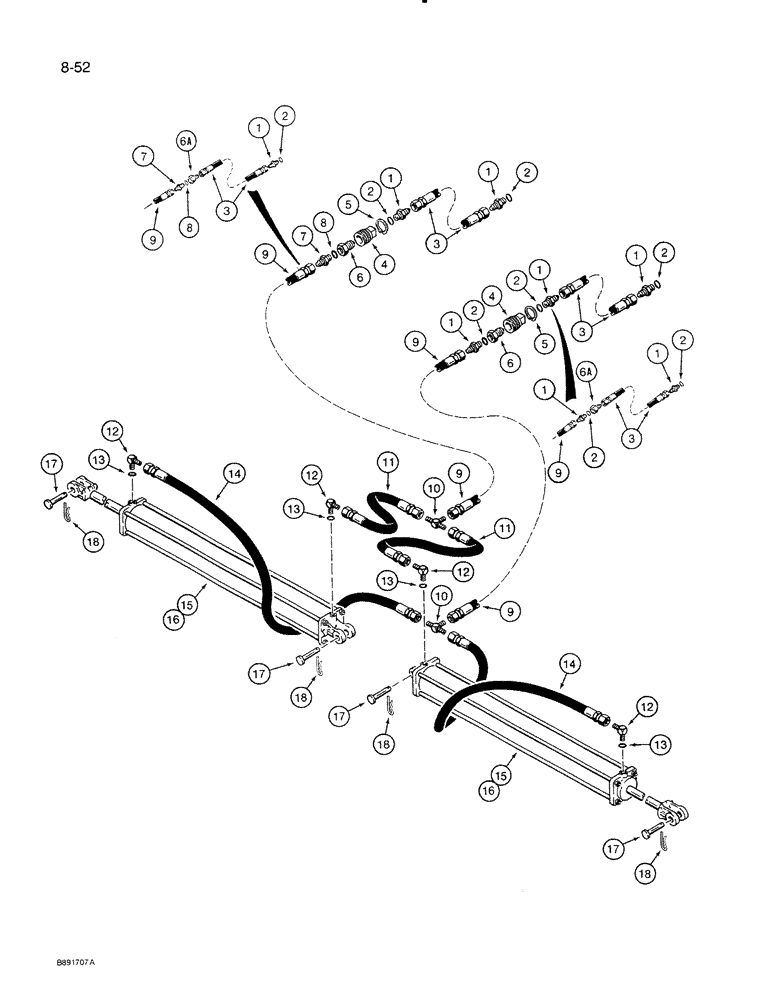

Схема запчастей Case IH 8500 - (8-52) - FRAME FOLDING LINES, 33 FOOT WIDE DRILL (08) - HYDRAULICS
9
3
17
1
9
8
4
2
13
6a
6
9
10
1
3
17
2
2
14
2
7
4
9
2
18
6
1
16
13
2
1
1
5
6a
14
18
7
17
12
11
16
8
12
15
3
9
11
5
1
3
10
2
13
18
15
1
1
12
12
2
13
18
9
17

Артикул

Название

Примечание

Количество

1

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

3-5шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3

91162C1

HYDRAULIC HOSE,12.70 mm ID x 6730.00 mm, SAE 100R1

12.70 mm ID X 6730.00 mm, at Cart Frame

2шт.

4

1337480C1

COUPLING

DISCONNECT - quick, female, if used

2шт.

5

69339R1

SNAP RING,#150, Ext

Ring, Snap, , disconnect to frame, if used #150, Ext

2шт.

6

1285718C2

QUICK MALE COUPLING

DISCONNECT - quick, male, if used

2шт.

6a

102413A1

CONNECTOR, ELEC

ADAPTER - special, used when quick disconnects, items 4 and 6, are not used

2шт.

7

1337448C1

ADAPTER

- special, male, orifice type

1шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

9

195869C2

HYDRAULIC HOSE

HOSE - 75 inch long, Serial Range: disconnect-tee

2шт.

10

218-594

TEE,3/4"-16, 37 Degree

- 3/4-16 inch flare

2шт.

11

1344615C1

HYDRAULIC HOSE

HOSE - 21 inch long, crossover, closed end

1шт.

of folding cylinders

2шт.

12

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

4шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

14

195869C2

HYDRAULIC HOSE

HOSE - 75 inch long, tee to rod end

1шт.

of folding cylinders

2шт.

15

1344614C1

CYLINDER

ASSEMBLY - hydraulic, folding, 3-1/2 inch ID x 36 inch

1шт.

stroke, major component parts not serviced separately

2шт.

16

1337477C1

SEAL KIT

- seal, cylinder repair, not shown

1шт.

17

24581R1

PIN

-, Serial Range: cylinder-frame

4шт.

18

1978738C1

HAIR PIN COTTER

- retainer

4шт.

Выбрано товаров: 22
