Запчасти Case IH 8500 (8-50) - FRAME FOLDING LINES, SEQUENCING VALVE TO CHECK VALVES, AND OUTER FOLDING CYLINDERS, 45 WIDE DRILL (08) - HYDRAULICS

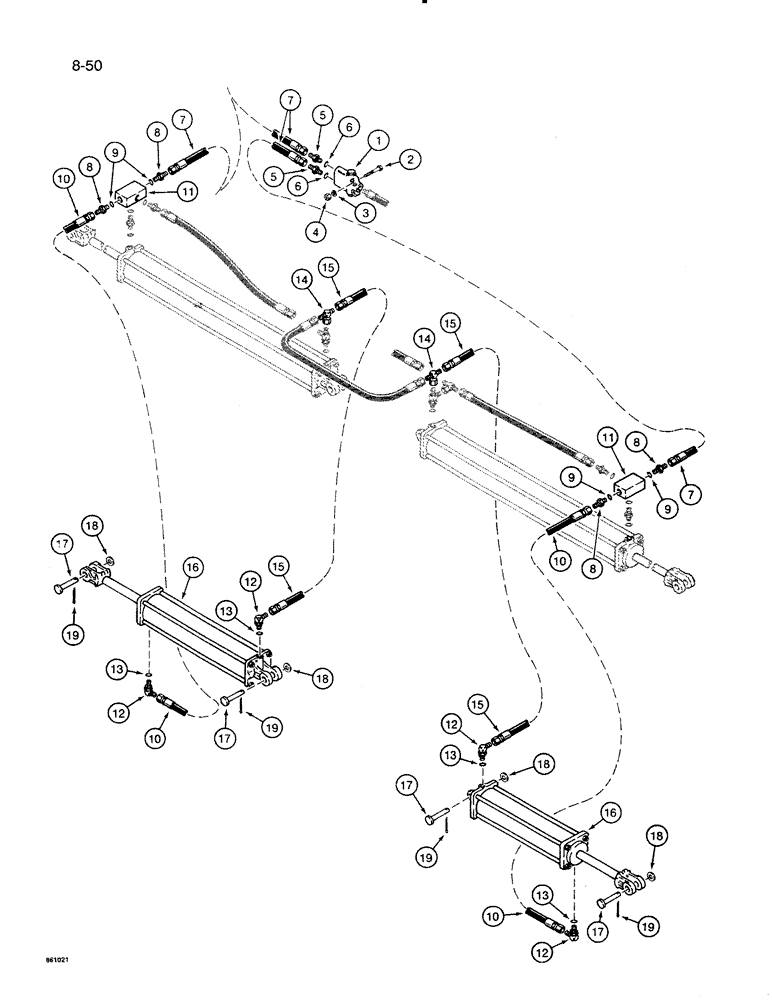

Схема запчастей Case IH 8500 - (8-50) - FRAME FOLDING LINES, SEQUENCING VALVE TO CHECK VALVES, AND OUTER FOLDING CYLINDERS, 45 WIDE DRILL (08) - HYDRAULICS
18
17
18
13
19
9
8
12
10
16
19
17
8
18
12
8
15
18
3
5
15
13
19
8
13
7
3
1
11
10
12
14
9
12
10
7
4
10
7
16
6
11
17
19
5
6
5
14
2
17
9
15

Артикул

Название

Примечание

Количество

1

1337450C1

VALVE

- cylinder sequencing

1шт.

2

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

3

492-11038

LOCK WASHER,3/8"

2шт.

4

425-106

NUT,3/8"-16, Cl 5

2шт.

5

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

2шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

7

147843C2

HYDRAULIC HOSE,12.70 mm ID x 2795.00 mm, SAE 100R17

Sequencing Valve to Check Valve 12.70 mm ID x 2795.00 mm, SAE 100R17

2шт.

8

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

4шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

10

1337361C1

HOSE ASSY.

HOSE - 160 inch long, check valve to rod end of cy;linder

2шт.

11

1337449C2

VALVE

- check, hydraulic circuit

2шт.

11a

1969471C2

VALVE

- pilot operated, used with 1337449C2 check valve, item 11, not shown

2шт.

12

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

4шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

14

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

- 3/4-16 inch swivel straight thread branch x flare, closed end of inner folding cylinders

2шт.

15

1337360C1

HOSE ASSY.

HOSE - 175 inch long, tee to closed end of outer folding cylinder

2шт.

16

1337454C1

CYLINDER

ASSEMBLY - hydraulic, outer folding, 3-1/2 inch ID x 20 inch stroke, major component parts not serviced separately

2шт.

16a

1337477C1

SEAL KIT

- seal, cylinder repair, not shown

1шт.

17

1337429C1

PIN

- cylinder to frame, rod and closed end of cylinder

4шт.

18

495-21106

WASHER,1"

- flat, 1-1/16 x 2-1/2 x 9/64 inch

4шт.

19

432-1232

COTTER PIN,3/16" OD x 2" L

3/16" x 2"

4шт.
