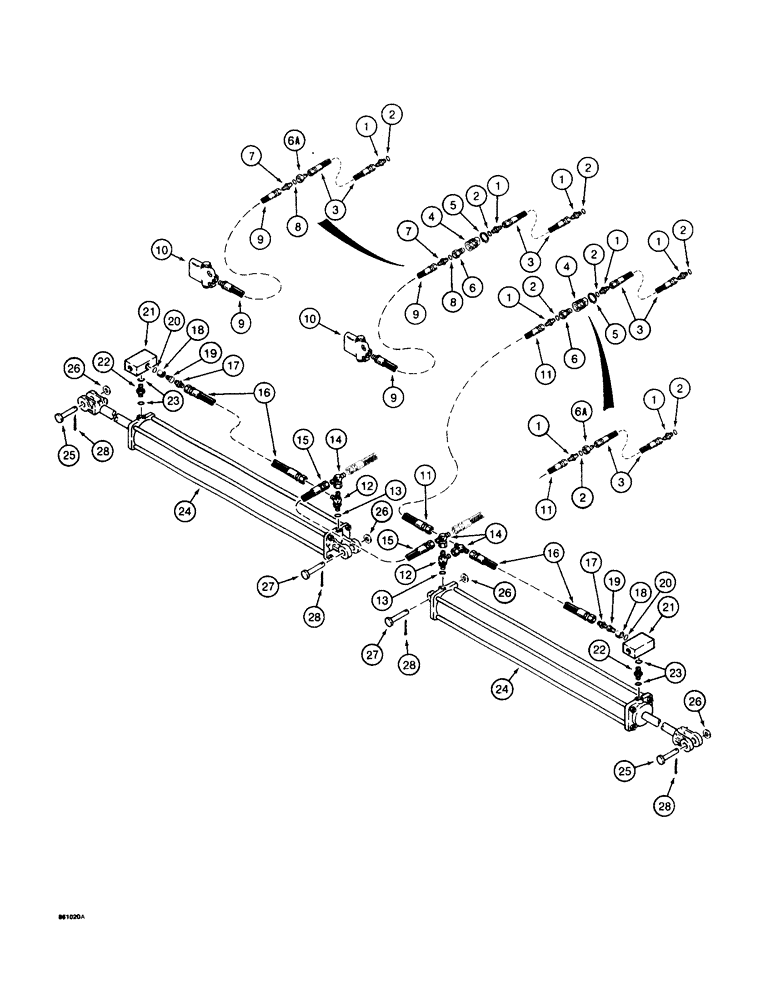

Запчасти Case IH 8500 (8-48) - FRAME FOLDING LINES, TO SEQUENCING VALVE AND INNER FOLDING CYLINDERS, 45 FOOT WIDE DRILL (08) - HYDRAULICS

1

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

3-5шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3

91162C1

HYDRAULIC HOSE,12.70 mm ID x 6730.00 mm, SAE 100R1

12.70 mm ID X 6730.00 mm, at Cart Frame

2шт.

4

1337480C1

COUPLING

COUPLER - female, disconnect, if used

2шт.

5

100-11150

SNAP RING,#150, Ext

Ring, Snap, , disconnect to frame, if used #150, Ext

2шт.

6

1285718C2

QUICK MALE COUPLING

- male, disconnect, if used

2шт.

6a

102413A1

CONNECTOR, ELEC

ADAPTER - special, used when quick disconnects, items 4 and 6, are not used

2шт.

7

1337448C1

ADAPTER

- special, male, orifice type

1шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

9

168132C2

HYDRAULIC HOSE,12.70 mm ID x 1650.00 mm

- to sequencing valve 12.70 mm ID x 1650.00 mm

1шт.

10

1337450C1

VALVE

ASSEMBLY - sequencing, see page 8-51 for hydraulic circuit continuation

1шт.

11

91239C1

HYDRAULIC HOSE,12.70 mm ID x 2285.00 mm, SAE 100R1

to Inner Folding Cylinders 12.70 mm ID x 2285.00 mm, SAE 100R1

1шт.

12

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 inch flare branch x flare x adj O-ring boss

2шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

14

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

- 3/4-16 inch swivel straight thread branch x flare

3шт.

15

90882C1

HYDRAULIC HOSE,12.70 mm ID x 1195.00 mm, SAE 100R1

Crossover, Closed End of Inner Folding Cylinders 12.70 mm ID x 1195.00 mm, SAE 100R1

1шт.

16

1304251C2

HYDRAULIC HOSE

HOSE - 41 inch long, tee to check valve

2шт.

17

218-434

HYD CONNECTOR,3/4" - 16 Male JIC x 3/4" - 16 Male JIC

CONNECTOR - straight, 3/4-16 inch flare

2шт.

18

218-344

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT - hex, 3/4 inch NF

2шт.

19

218-792

REDUCER,37 Degree, 1/2" x 3/8" Tube

ADAPTER - reducing, 1/2 tube OD x 9/16-18 inch flare

2шт.

21

1337449C2

VALVE

- check, hydraulic circuit, see page 8-51 for circuit continuation

2шт.

22

189608A1

FITTING

ADAPTER - straight, male(replaces 9409300)

2шт.

a straight adjustable o'ring boss fitting has been released for ref. 22, part number is 189608a1

1шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

4шт.

24

1337455C1

CYLINDER

ASSEMBLY - hydraulic, inner folding, 4 inch ID x 40 inch stroke, major component parts not serviced separately

2шт.

24a

1337476C1

SEAL KIT

- seal, cylinder repair, not shown

1шт.

25

1337429C1

PIN

- cylinder to frame, rod end

2шт.

26

495-21106

WASHER,1"

- flat, 1-1/16 x 2-1/2 x 9/64 inch

4шт.

27

439-11668

HEADED PIN,25.4mm OD x 107.95mm L

PIN - cylinder to frame, closed end

2шт.

28

432-1232

COTTER PIN,3/16" OD x 2" L

3/16" x 2"

4шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.
