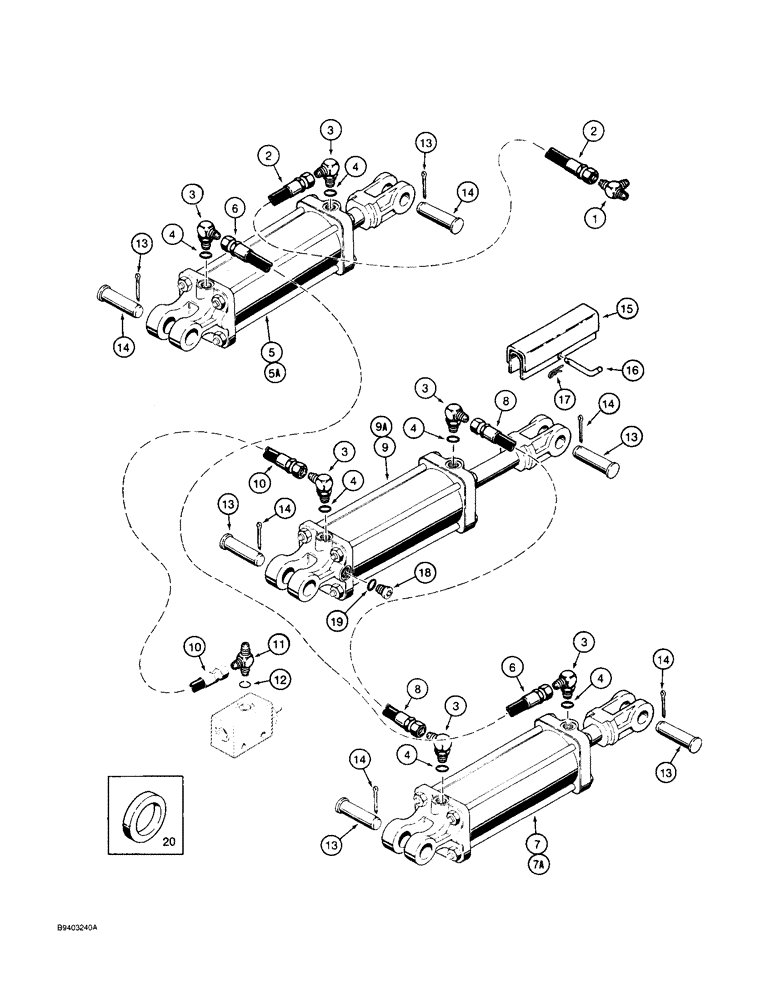

Запчасти Case IH 8500 (8-46) - GAUGE WHEEL LINES, LEFT HAND GAUGE WHEEL CYLINDERS, W/ MIDWAY TIE ROD TYPE CYLINDERS, 33 WIDE DRILL (08) - HYDRAULICS

1

218-594

TEE,3/4"-16, 37 Degree

- 3/4-16 inch flare, hose to cylinders, see item number 6

1шт.

page 8-45 for other connections

1шт.

2

1978105C1

HYDRAULIC HOSE

HOSE - 222 inch long, tee to single gauge wheel

1шт.

4 inch ID cylinder, rod end

1шт.

3

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

6шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

5

118567A1

CYLINDER

ASSEMBLY - single gauge wheel, 4 inch ID, major

1шт.

component parts not serviced separately

1шт.

5a

118614A1

SEAL KIT

- seal, cylinder repair, not shown

1шт.

6

1337360C1

HOSE ASSY.

HOSE - 174 inch long, closed end of 4 inch ID single

1шт.

gauge wheel cylinder to rod end of 4-1/4 inch ID cylinder

1шт.

7

118578A1

CYLINDER

ASSEMBLY - master, 4-1/4 inch ID, major

1шт.

component parts not serviced separately

1шт.

7a

118615A1

SEAL KIT

- seal, cylinder repair, not shown

1шт.

8

195869C2

HYDRAULIC HOSE

HOSE - 74 inch long, closed end of 4-1/4 inch ID cylinder

1шт.

to rod end of 4-1/2 inch ID dual gauge wheel cylinder

1шт.

9

118579A1

CYLINDER

ASSEMBLY - dual gauge wheel, 4-1/2 inch ID, major

1шт.

component parts not serviced separately

1шт.

9a

118616A1

SEAL KIT

- seal, cylinder repair, not shown

1шт.

10

195869C2

HYDRAULIC HOSE

HOSE - 74 inch long, closed end of 4-1/2 inch ID dual gauge

1шт.

wheel cylinder to stroke control valve, see item 8, page 8-43

1шт.

11

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 inch flare branch x flare x adj O-ring boss

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

13

118883A1

PIN

- clevis, cylinder mounting

6шт.

14

432-1228

COTTER PIN,3/16" x 1 3/4"

3/16" x 1 3/4"

6шт.

15

118701A1

LOCK, CYLINDER

LOCK - cylinder, channel

1шт.

16

1344885C1

PIN

- cylinder lock

1шт.

17

473443R1

COTTER PIN

- hair type, lock pin

1шт.

18

214389

PLUG,3/4" - 16 ORB

1шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

20

118636A1

SPACER

- cylinder mounting

1шт.
