Запчасти Case IH 8500 (8-44) - GAUGE WHEEL LINES, RIGHT HAND GAUGE WHEEL CYLINDERS, WITH MIDWAY TIE TYPE CYLINDERS, 33 WIDE DRILL (08) - HYDRAULICS

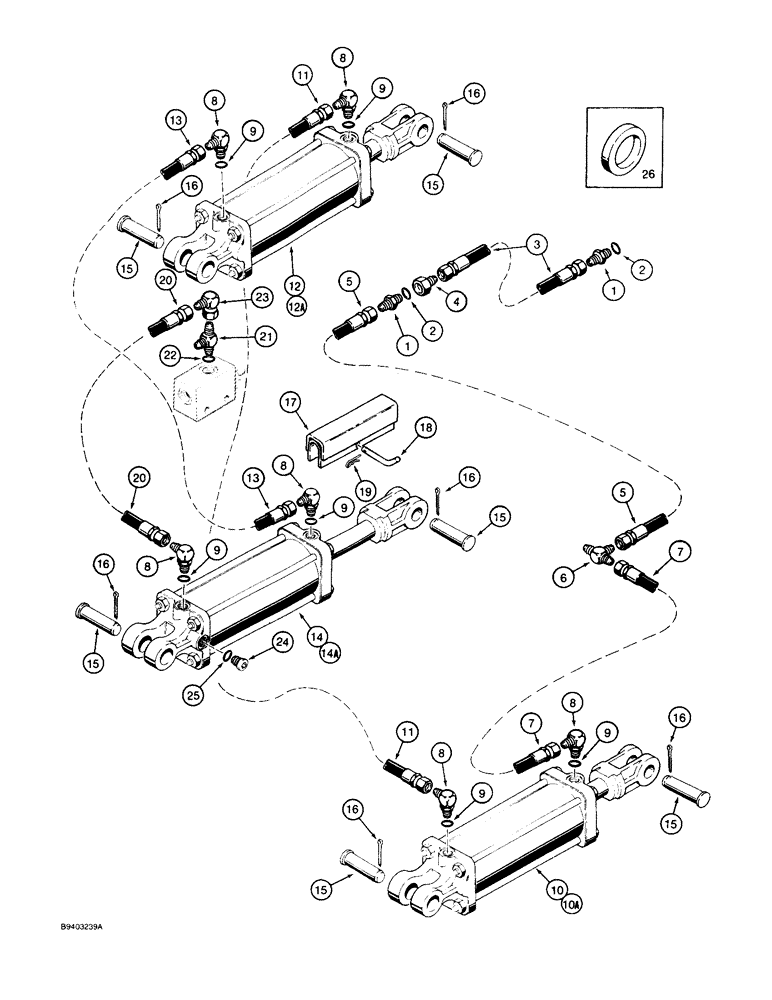

Схема запчастей Case IH 8500 - (8-44) - GAUGE WHEEL LINES, RIGHT HAND GAUGE WHEEL CYLINDERS, WITH MIDWAY TIE TYPE CYLINDERS, 33 WIDE DRILL (08) - HYDRAULICS
12a
2
21
6
10
9
18
5
4
9
9
11
8
1
14a
7
15
6
2
26
20
17
7
20
16
16
5
23
16
16
9
15
15
16
24
9
25
12
15
13
19
11
1
8
15
8
3
10a
8
9
8
14
22
16
15
13

Артикул

Название

Примечание

Количество

1

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3

91162C1

HYDRAULIC HOSE,12.70 mm ID x 6730.00 mm, SAE 100R1

12.70 mm ID X 6730.00 mm, at Cart Frame

1шт.

4

102413A1

CONNECTOR, ELEC

ADAPTER - special, used when quick disconnects are not used

1шт.

5

1301963C2

HYDRAULIC HOSE,12.7mm ID x 1270mm L

HOSE - 51 inch long, Serial Range: adapter-tee

1шт.

6

218-594

TEE,3/4"-16, 37 Degree

- 3/4-16 inch flare, hose to cylinders

1шт.

7

1337360C1

HOSE ASSY.

HOSE - 174 inch long, tee to 4 inch ID single gauge wheel

1шт.

cylinder, rod end

1шт.

8

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

6шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

10

118567A1

CYLINDER

ASSEMBLY - single gauge wheel, 4 inch ID, major

1шт.

component parts not serviced separately

1шт.

10a

118614A1

SEAL KIT

- seal, cylinder repair, not shown

1шт.

11

1978105C1

HYDRAULIC HOSE

HOSE - 222 inch long, closed end of 4 inch ID single gauge

1шт.

wheel cylinder to rod end of 4-1/4 inch ID cylinder

1шт.

12

118578A1

CYLINDER

ASSEMBLY - master, 4-1/4 inch ID, major

1шт.

component parts not serviced separately

1шт.

12a

118615A1

SEAL KIT

- seal, cylinder repair, not shown

1шт.

13

147843C2

HYDRAULIC HOSE,12.70 mm ID x 2795.00 mm, SAE 100R17

Closed End 12.70 mm ID x 2795.00 mm, SAE 100R17

1шт.

cylinder to rod end of 4-1/2 inch ID dual gauge wheel cylinder

1шт.

14

118579A1

CYLINDER

ASSEMBLY - dual gauge wheel, 4-1/2 inch ID, major

1шт.

component parts not serviced separately

1шт.

14a

118616A1

SEAL KIT

- seal, cylinder repair, not shown

1шт.

15

118883A1

PIN

- clevis, cylinder mounting

6шт.

16

432-1228

COTTER PIN,3/16" x 1 3/4"

3/16" x 1 3/4"

6шт.

17

118701A1

LOCK, CYLINDER

LOCK - cylinder, channel

1шт.

18

1344885C1

PIN

- cylinder lock

1шт.

19

473443R1

COTTER PIN

- hair type, lock pin

1шт.

20

147843C2

HYDRAULIC HOSE,12.70 mm ID x 2795.00 mm, SAE 100R17

Closed End of 4.50" Dual Gauge 12.70 mm ID x 2795.00 mm, SAE 100R17

1шт.

wheel cylinder to stroke control valve, see item 8, page 8-43

1шт.

21

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 inch flare branch x flare x adj O-ring boss

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

23

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel flare

1шт.

24

214389

PLUG,3/4" - 16 ORB

1шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

26

118636A1

SPACER

- cylinder mounting

1шт.
