Запчасти Case IH 8500 (8-42) - GAUGE WHEEL LINES, CYLINDER AND STROKE CONTROL, WITH MIDWAY TIE ROD TYPE CYLINDERS, 33 WIDE DRILL (08) - HYDRAULICS

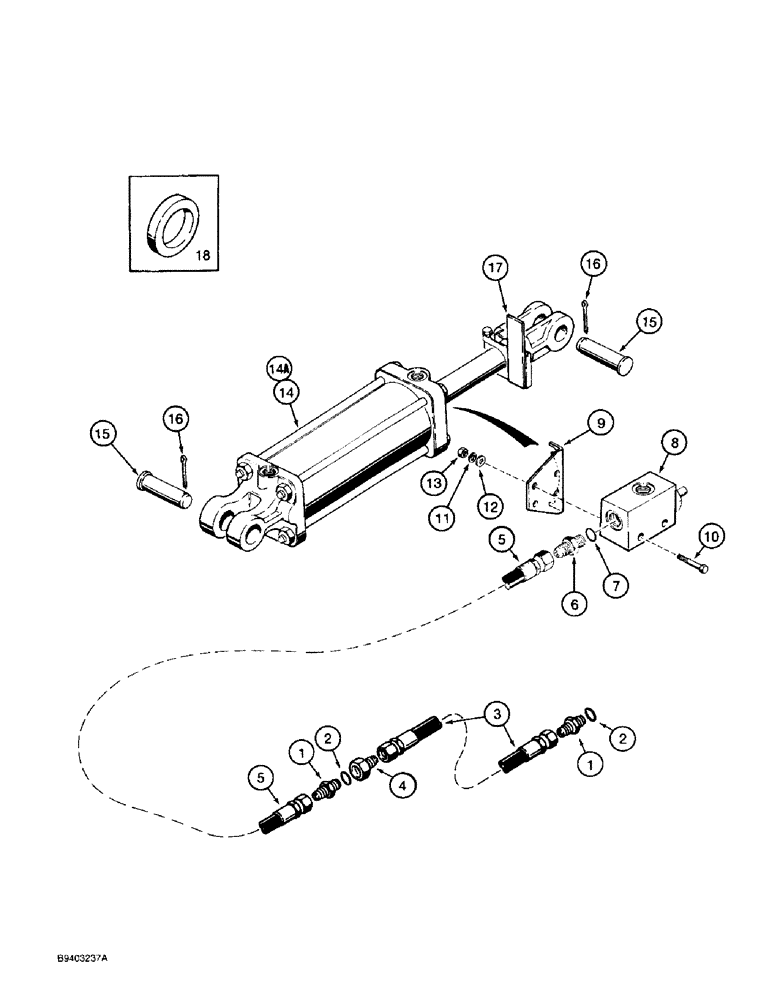

Схема запчастей Case IH 8500 - (8-42) - GAUGE WHEEL LINES, CYLINDER AND STROKE CONTROL, WITH MIDWAY TIE ROD TYPE CYLINDERS, 33 WIDE DRILL (08) - HYDRAULICS
14a
9
10
2
16
7
17
12
16
11
8
15
2
5
1
14
6
5
3
1
15
18
4
13

Артикул

Название

Примечание

Количество

1

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3

91162C1

HYDRAULIC HOSE,12.70 mm ID x 6730.00 mm, SAE 100R1

12.70 mm ID X 6730.00 mm, at Cart Frame

1шт.

4

102413A1

CONNECTOR, ELEC

ADAPTER - special, used when quick disconnects are not used

1шт.

5

91202C1

HYDRAULIC HOSE,12.70 mm ID x 2160.00 mm, SAE 100R1

12.70 mm ID X 2160.00 mm, Adapter to Stroke Control Valve

1шт.

6

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

1шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

8

1344628C1

VALVE

- stroke control

1шт.

9

118635A1

BRACKET

- valve mounting

1шт.

10

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

2шт.

11

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

13

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

14

118578A1

CYLINDER

ASSEMBLY - left-hand side gauge wheel, 4-1/4 inch ID

1шт.

major component parts not serviced separately

1шт.

14a

118615A1

SEAL KIT

- seal, cylinder repair, not shown

1шт.

15

118883A1

PIN

- clevis, cylinder mounting

2шт.

16

432-1228

COTTER PIN,3/16" x 1 3/4"

3/16" x 1 3/4"

2шт.

17

118768A1

STOP

CLAMP - stop, cylinder

1шт.

18

118636A1

SPACER

- cylinder mounting

1шт.

Выбрано товаров: 20
