Запчасти Case IH 8500 (8-36) - GAUGE WHEEL LINES, CYLINDERS AND STROKE CONTROL, WITH MIDWAY TIE ROD TYPE CYLINDERS, 45 WIDE DRILL (08) - HYDRAULICS

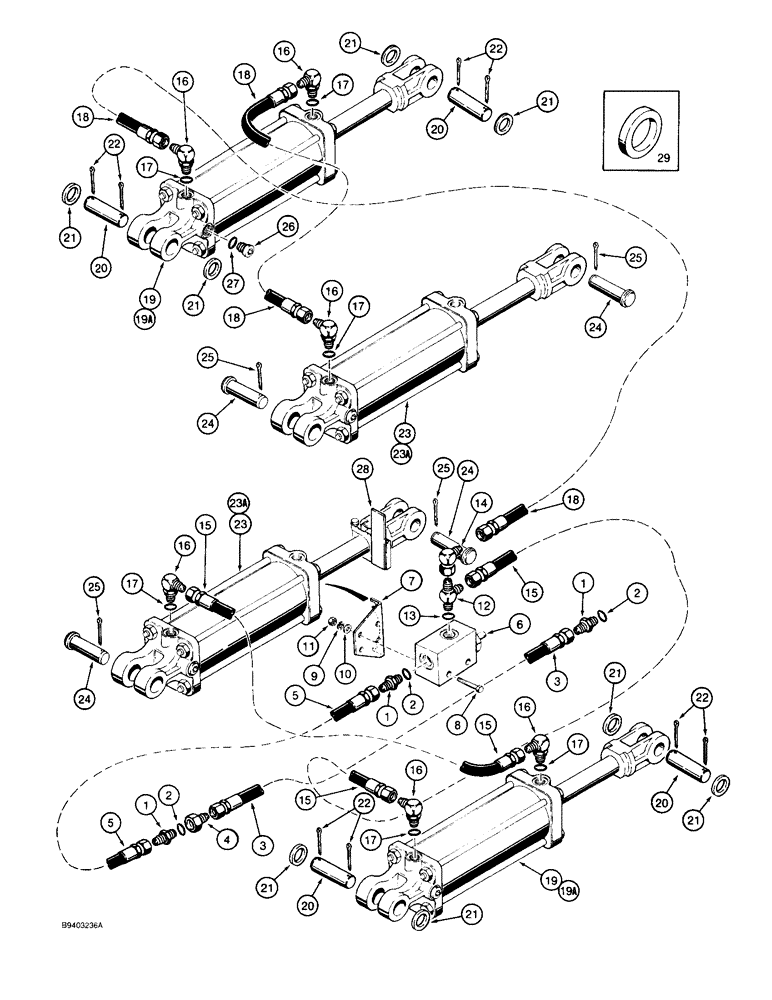

Схема запчастей Case IH 8500 - (8-36) - GAUGE WHEEL LINES, CYLINDERS AND STROKE CONTROL, WITH MIDWAY TIE ROD TYPE CYLINDERS, 45 WIDE DRILL (08) - HYDRAULICS
5
1
24
8
15
27
3
11
19
23a
24
21
21
22
20
10
6
14
16
19a
2
5
18
2
16
21
21
23a
1
25
9
21
24
16
21
23
22
25
4
18
28
1
15
25
17
17
20
19a
16
15
17
20
19
25
21
16
3
24
17
2
7
23
26
12
16
21
22
18
17
17
15
22
18
20
29
13

Артикул

Название

Примечание

Количество

1

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

3шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3

91162C1

HYDRAULIC HOSE,12.70 mm ID x 6730.00 mm, SAE 100R1

12.70 mm ID X 6730.00 mm, at Cart Frame

1шт.

4

102413A1

CONNECTOR, ELEC

ADAPTER - special, used when quick disconnects are not used

1шт.

5

91202C1

HYDRAULIC HOSE,12.70 mm ID x 2160.00 mm, SAE 100R1

12.70 mm ID X 2160.00 mm, Adapter to Stroke Control Valve

1шт.

6

1344628C1

VALVE

- stroke control

1шт.

7

118635A1

BRACKET

- valve mounting

1шт.

8

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

2шт.

9

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

10

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

11

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

12

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 inch flare branch x flare x adj O-ring boss

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

14

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel flare

1шт.

15

195869C2

HYDRAULIC HOSE

HOSE - 74 inch long, tee to closed end of left-hand side 4-3/4 inch ID cylinder and rod end of left-hand side 4-3/4 inch ID cylinder to base end of left-hand side 4-1/2 inch ID cylinder

2шт.

16

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

6шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

18

147843C2

HYDRAULIC HOSE,12.70 mm ID x 2795.00 mm, SAE 100R17

Elbow to Closed End of Right-Hand Side 4.75" ID Cylinder and Rod End of Right-Hand Side 4.75" ID Cylinder to Base End of Right-Hand Side 4.50" ID Cylinder 12.70 mm ID x 2795.00 mm, SAE 100R17

2шт.

19

118580A1

CYLINDER

ASSEMBLY - gauge wheel, 4-3/4 inch ID, major component parts not serviced separately

2шт.

19a

118617A1

SEAL KIT

- seal, cylinder repair, not shown

1шт.

20

134198A1

PIN

- cylinder mounting, used with 4-3/4 inch ID

4шт.

21

495-11106

WASHER,1", SAE

- flat, 1-1/16 x 2 x 1/8 inch

8шт.

22

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

8шт.

23

118579A1

CYLINDER

ASSEMBLY - gauge wheel, 4-1/2 inch ID, major component parts not serviced separately

2шт.

23a

118616A1

SEAL KIT

- seal, cylinder repair, not shown

1шт.

24

118883A1

PIN

- clevis, 4-1/2 inch ID cylinder mounting

4шт.

25

432-1228

COTTER PIN,3/16" x 1 3/4"

3/16" x 1 3/4"

4шт.

26

214389

PLUG,3/4" - 16 ORB

4шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

28

118768A1

STOP

CLAMP - stop, cylinder

1шт.

29

118636A1

SPACER

- cylinder mounting

1шт.

Выбрано товаров: 31
