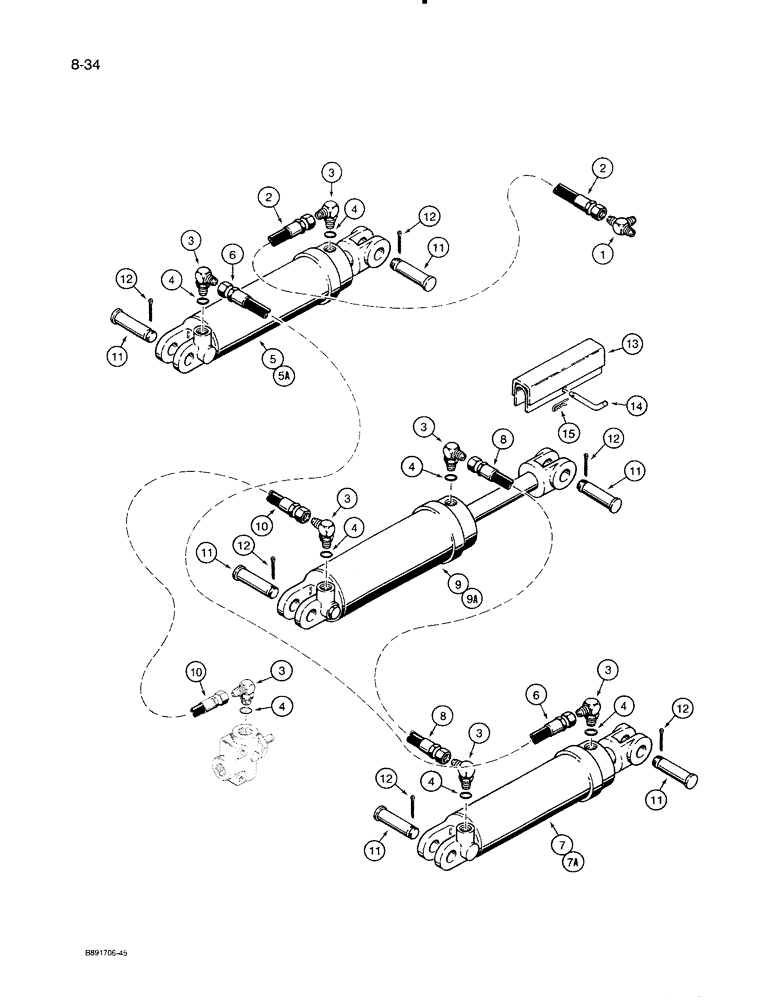

Запчасти Case IH 8500 (8-34) - GAUGE WHEEL LINES, LEFT HAND GAUGE WHEEL CYLINDERS, W/ CESSNA GLAND TYPE CYLINDERS, 33 WIDE DRILL (08) - HYDRAULICS

1

218-594

TEE,3/4"-16, 37 Degree

- 3/4-16 inch flare, hose to cylinders, see item number 8, page 8-33 for other connections

1шт.

2

1978105C1

HYDRAULIC HOSE

HOSE - 222 inch long, tee to single gauge wheel 4 inch ID cylinder, rod end

1шт.

3

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

7шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Component parts not serviced separately

1шт.

5a

1337475C1

SEAL KIT

KIT - seal, cylinder repair, not shown

1шт.

6

1337360C1

HOSE ASSY.

HOSE - 174 inch long, closed end of 4 inch ID single gauge wheel cylinder to rod end of 4-1/4" ID master cylinder

1шт.

7

1337458C1

CYLINDER

ASSEMBLY - master, 4-1/4" ID, major component parts not serviced separately

1шт.

7a

1337474C1

SEAL KIT

- seal, cylinder repair, not shown

1шт.

8

91202C1

HYDRAULIC HOSE,12.70 mm ID x 2160.00 mm, SAE 100R1

12.70 mm ID X 2160.00 mm, Closed End of 4.25" ID Master Cylinder to Rod End of 4.50" ID Dual Gauge Wheel Cylinder

1шт.

9

1337457C1

CYLINDER

ASSEMBLY - dual gauge wheel, 4-1/2" ID, major component parts not serviced separately

1шт.

9a

1337473C1

SEAL KIT

- seal, cylinder repair, not shown

1шт.

10

195869C2

HYDRAULIC HOSE

HOSE - 74 inch long, closed end of 4-1/2" ID dual gauge wheel cylinder to stroke control valve, see item 10, page 8-31

1шт.

11

1337470C1

PIN

- clevis, cylinder mounting

6шт.

12

432-1232

COTTER PIN,3/16" OD x 2" L

3/16" x 2"

6шт.

13

1337439C1

CHANNEL

LOCK - cylinder, channel

1шт.

14

1344885C1

PIN

- cylinder lock

1шт.

15

473443R1

COTTER PIN

- hair type, lock pin

1шт.
