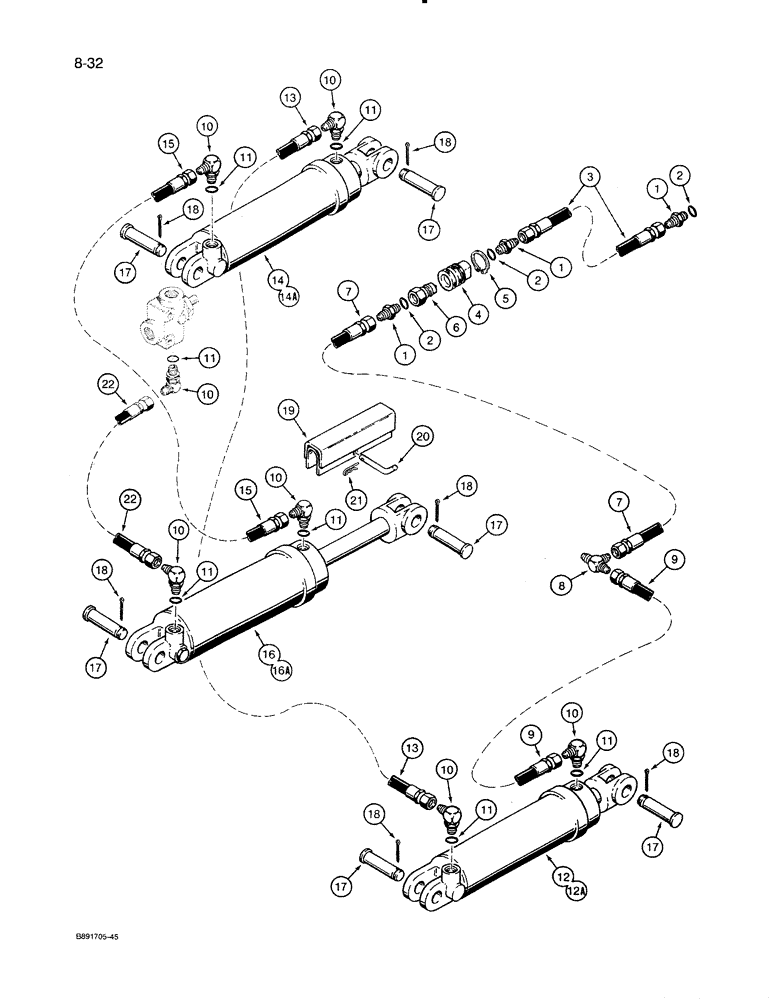

Запчасти Case IH 8500 (8-32) - GAUGE WHEEL LINES, RIGHT HAND GAUGE WHEEL CYLINDERS, W/ CESSNA GLAND TYPE CYLINDERS, 33 WIDE DRILL (08) - HYDRAULICS

1

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - male, straight

3шт.

2

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- adapter

3шт.

3

91162C1

HYDRAULIC HOSE,12.70 mm ID x 6730.00 mm, SAE 100R1

12.70 mm ID X 6730.00 mm, at Cart Frame

1шт.

4

1337480C1

COUPLING

DISCONNECT - quick, female

1шт.

5

69339R1

SNAP RING,#150, Ext

Ring, Snap, , disconnect to frame #150, Ext

1шт.

6

1285718C2

QUICK MALE COUPLING

DISCONNECT - quick, male

1шт.

7

1301963C2

HYDRAULIC HOSE,12.7mm ID x 1270mm L

HOSE - 51 inch long, Serial Range: disconnect-tee

1шт.

8

9402982

TEE,3/4"-16, 37 Degree

- hose to cylinders

1шт.

9

1337360C1

HOSE ASSY.

HOSE - 174 inch long, tee to single gauge wheel

1шт.

cylinder, rod end

1шт.

10

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 90 degree

7шт.

11

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- elbow

7шт.

12

1337459C1

CYLINDER

ASSEMBLY - single gauge wheel, 4 inch ID, major

1шт.

component parts not serviced separately

1шт.

12a

1337475C1

SEAL KIT

KIT - seal, cylinder repair, not shown

1шт.

13

1978105C1

HYDRAULIC HOSE

HOSE - 222 inch long, closed end of 4 inch ID single gauge

1шт.

wheel cylinder to rod end of 4-1/4 inch ID master cylinder

1шт.

14

1337458C1

CYLINDER

ASSEMBLY - master, 4-1/4 inch ID, major

1шт.

component parts not serviced separately

1шт.

14a

1337474C1

SEAL KIT

- seal, cylinder repair, not shown

1шт.

15

147843C2

HYDRAULIC HOSE,12.70 mm ID x 2795.00 mm, SAE 100R17

Closed End of 4.50" Master 12.70 mm ID x 2795.00 mm, SAE 100R17

1шт.

cylinder to rod end of 4-1/2 inch ID dual gauge wheel cylinder

1шт.

16

1337457C1

CYLINDER

ASSEMBLY - dual gauge wheel, 4-1/2 inch ID, major

1шт.

component parts not serviced separately

1шт.

16a

1337473C1

SEAL KIT

- seal, cylinder repair, not shown

1шт.

17

1337470C1

PIN

- clevis, cylinder mounting

6шт.

18

NLS

NO LONGER SERVICED

SPLIT (COTTER), 3/16" x 2"

6шт.

19

1337439C1

CHANNEL

LOCK - cylinder, channel

1шт.

20

1344885C1

PIN

- cylinder lock

1шт.

21

473443R1

COTTER PIN

- hair type, lock pin

1шт.

22

147843C2

HYDRAULIC HOSE,12.70 mm ID x 2795.00 mm, SAE 100R17

Closed End of 4.50" Dual Gauge 12.70 mm ID x 2795.00 mm, SAE 100R17

1шт.

wheel cylinder to stroke control valve, see item 10, page 8-31

1шт.
