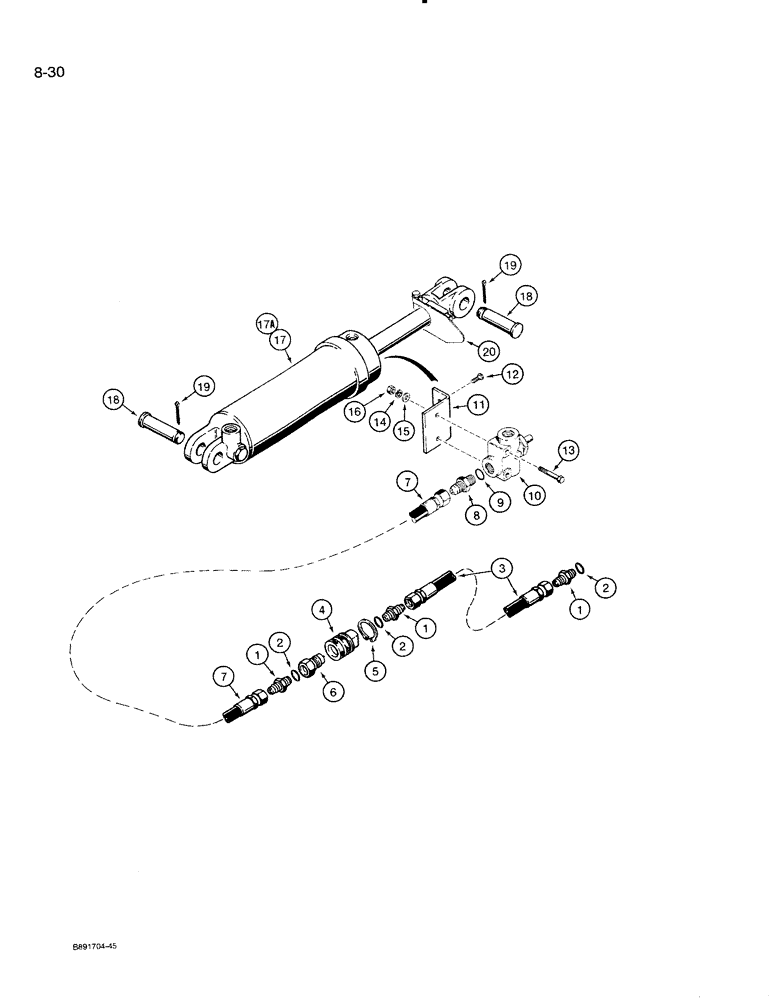

Запчасти Case IH 8500 (8-30) - GAUGE WHEEL LINES, MASTER CYLINDER & STROKE CONTROL, W/ CESSNA GLAND TYPE CYLINDERS, 33 WIDE DRILL (08) - HYDRAULICS

1

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - male, straight

3шт.

2

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- adapter

3шт.

3

91162C1

HYDRAULIC HOSE,12.70 mm ID x 6730.00 mm, SAE 100R1

12.70 mm ID X 6730.00 mm, at Cart Frame

1шт.

4

1337480C1

COUPLING

DISCONNECT - quick, female

1шт.

5

69339R1

SNAP RING,#150, Ext

Ring, Snap, , disconnect to frame #150, Ext

1шт.

6

1285718C2

QUICK MALE COUPLING

DISCONNECT - quick, male

1шт.

7

91202C1

HYDRAULIC HOSE,12.70 mm ID x 2160.00 mm, SAE 100R1

12.70 mm ID X 2160.00 mm, Disconnect to Stroke

1шт.

control valve

1шт.

8

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - male, straight

1шт.

9

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- adapter

1шт.

10

1980338C1

SEAL KIT

VALVE - stroke control(replaces 1980248C1)

1шт.

seal kit for 1980248c1, stroke control valve is 1980338c1

1шт.

11

1344886C1

BRACKET

- valve mounting

1шт.

12

1344631C1

SELF-TAP SCREW,Hex Wshr Hd, 1/4" - 20 x 1/2"

- mounting, Serial Range: bracket-cylinder

2шт.

13

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC X 2-1/4 inch

2шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

15

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

16

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

17

1337459C1

CYLINDER

ASSEMBLY - gauge wheel, 4 inch ID, major

1шт.

component parts not serviced separately

1шт.

17a

1337475C1

SEAL KIT

KIT - seal, cylinder repair, not shown

1шт.

18

1337471C1

PIN

- clevis, cylinder mounting

2шт.

19

103411

SPLIT (COTTER), 3/16" x 2"

2шт.

20

1337469C1

CLAMP

- stop, cylinder

1шт.
