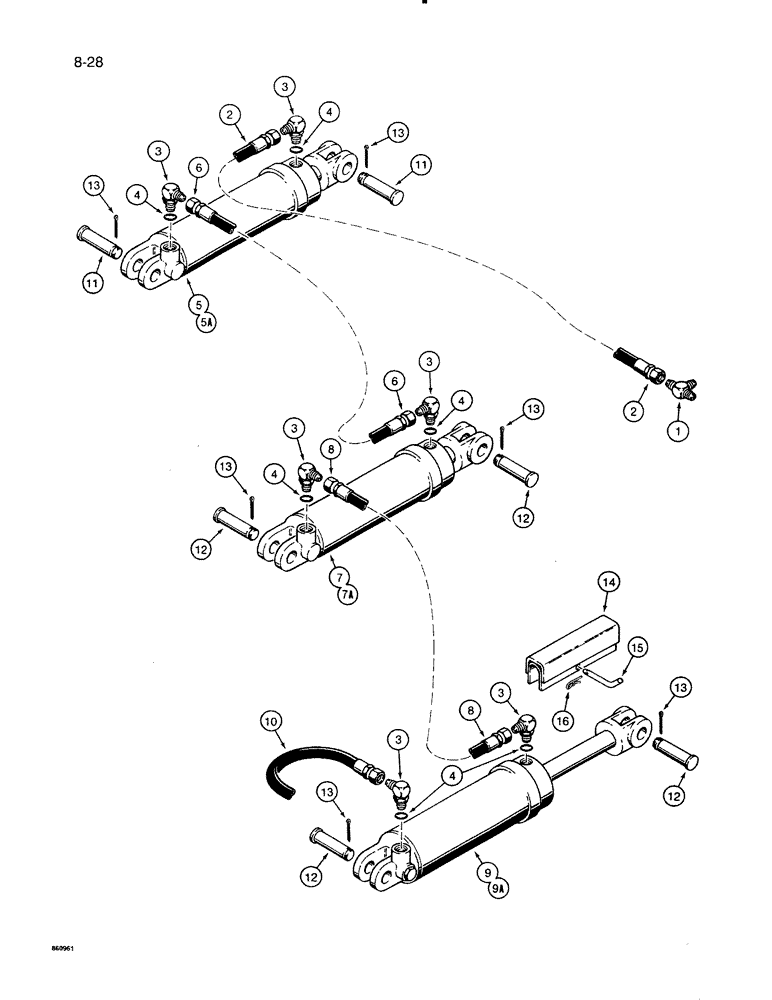

Запчасти Case IH 8500 (8-28) - GAUGE WHEEL LINES, LEFT HAND GAUGE WHEEL CYLINDERS, WITH CESSNA GLAND TYPE CYLINDERS, 45 WIDE DRILL (08) - HYDRAULICS

1

9402982

TEE,3/4"-16, 37 Degree

- hose to cylinders, see reference number 8

1шт.

page 8-27 for additional connections

1шт.

2

1337374C1

HYDRAULIC HOSE

HOSE - 22.3 ft (6.81 m) long, tee to parallel arm

1шт.

cylinder, rod end

1шт.

3

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 90 degree

6шт.

4

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- elbow

6шт.

5

1337459C1

CYLINDER

ASSEMBLY - parallel arm, 4" ID, major

1шт.

component parts not serviced separately

1шт.

5a

1337475C1

SEAL KIT

KIT - seal, cylinder repair, not shown

1шт.

6

91202C1

HYDRAULIC HOSE,12.70 mm ID x 2160.00 mm, SAE 100R1

Closed End of Parallel Arm 12.70 mm ID x 2160.00 mm, SAE 100R1

1шт.

cylinder to rod end of 4-1/4" ID gauge wheel cylinder

1шт.

7

1337458C1

CYLINDER

ASSEMBLY - gauge wheel, 4-1/4" ID, major

1шт.

component parts not serviced separately

1шт.

7a

1337474C1

SEAL KIT

- seal, cylinder repair, not shown

1шт.

8

1337376C1

HYDRAULIC HOSE

HOSE - 11.67 ft (3.56 m) long, closed end of 4-1/4" ID gauge

1шт.

wheel cylinder to rod end of 4-1/2" ID gauge wheel cylinder

1шт.

9

1337457C1

CYLINDER

ASSEMBLY - gauge wheel, 4-1/2" ID, major

1шт.

component parts not serviced separately

1шт.

9a

1337473C1

SEAL KIT

- seal, cylinder repair, not shown

1шт.

10

REF

INSTRUCTION

HOSE - 6.83 ft (2.08 m) long, closed end of 4-1/2" ID gauge wheel cylinder to rod end of 4-3/4" ID master cylinder

1шт.

see item number 11, page 8-25

1шт.

11

1337471C1

PIN

- clevis, 4" ID parallel arm cylinder mounting

2шт.

12

24003R1

HEADED PIN

PIN - clevis, 4-1/4" and 4-1/2" ID gauge wheel

1шт.

cylinder mounting

4шт.

13

NLS

NO LONGER SERVICED

SPLIT (COTTER), 3/16" x 2"

6шт.

14

1337439C1

CHANNEL

LOCK - cylinder, channel

1шт.

15

1344885C1

PIN

- cylinder lock

1шт.

16

473443R1

COTTER PIN

- hair type, lock pin

1шт.
