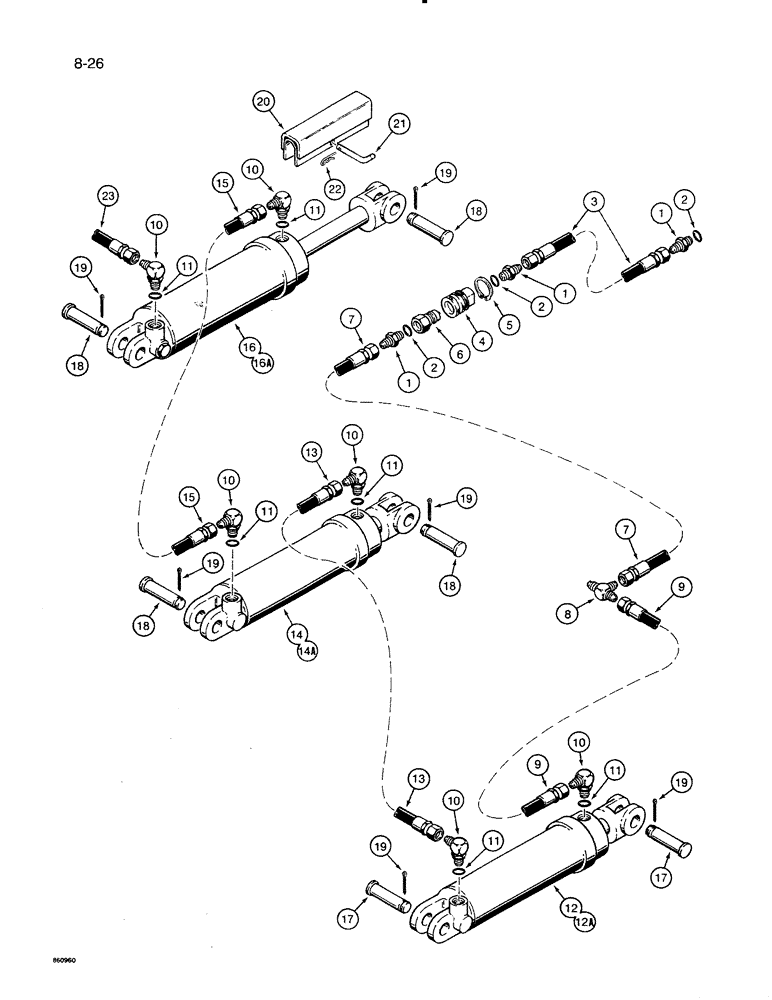

Запчасти Case IH 8500 (8-26) - GAUGE WHEEL LINES, RIGHT HAND GAUGE WHEEL CYLINDERS, W/ CESSNA GLAND TYPE CYLINDERS, 45 WIDE DRILL (08) - HYDRAULICS

1

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - male, straight

3шт.

2

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- adapter

3шт.

3

91162C1

HYDRAULIC HOSE,12.70 mm ID x 6730.00 mm, SAE 100R1

12.70 mm ID X 6730.00 mm, at Cart Frame

1шт.

4

1337480C1

COUPLING

DISCONNECT - quick, female

1шт.

5

69339R1

SNAP RING,#150, Ext

Ring, Snap, , disconnect to frame #150, Ext

1шт.

6

1285718C2

QUICK MALE COUPLING

DISCONNECT - quick, male

1шт.

7

1301963C2

HYDRAULIC HOSE,12.7mm ID x 1270mm L

HOSE - 4.25 ft (1.3 m) long, Serial Range: disconnect-tee

1шт.

8

9402982

TEE,3/4"-16, 37 Degree

- hose to cylinders

1шт.

9

1337374C1

HYDRAULIC HOSE

HOSE - 22.3 ft (6.81 m) long, tee to parallel arm

1шт.

cylinder, rod end

1шт.

10

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 90 degree

6шт.

11

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- elbow

6шт.

12

1337459C1

CYLINDER

ASSEMBLY - parallel arm, 4" ID, major

1шт.

component parts not serviced separately

1шт.

12a

1337475C1

SEAL KIT

KIT - seal, cylinder repair, not shown

1шт.

13

91202C1

HYDRAULIC HOSE,12.70 mm ID x 2160.00 mm, SAE 100R1

Closed End of Parallel Arm 12.70 mm ID x 2160.00 mm, SAE 100R1

1шт.

cylinder to rod end of 4-1/4" ID gauge wheel cylinder

1шт.

14

1337458C1

CYLINDER

ASSEMBLY - gauge wheel, 4-1/4" ID, major

1шт.

component parts not serviced separately

1шт.

14a

1337474C1

SEAL KIT

- seal, cylinder repair, not shown

1шт.

15

1337376C1

HYDRAULIC HOSE

HOSE - 11.67 ft (3.56 m) long, closed end of 4-1/4" ID

1шт.

cylinder to rod end of 4-1/2" ID cylinder

1шт.

16

1337457C1

CYLINDER

ASSEMBLY - gauge wheel, 4-1/2" ID, major

1шт.

component parts not serviced separately

1шт.

16a

1337473C1

SEAL KIT

- seal, cylinder repair, not shown

1шт.

17

1337471C1

PIN

- clevis, 4" ID parallel arm cylinder mounting

2шт.

18

24003R1

HEADED PIN

PIN - clevis, 4-1/4" and 4-1/2" ID cylinder mounting

4шт.

19

103411

SPLIT (COTTER), 3/16" x 2"

6шт.

20

1337439C1

CHANNEL

LOCK - cylinder, channel

1шт.

21

1344885C1

PIN

- cylinder lock

1шт.

22

473443R1

COTTER PIN

- hair type, lock pin

1шт.

23

91202C1

HYDRAULIC HOSE,12.70 mm ID x 2160.00 mm, SAE 100R1

12.70 mm ID X 2160.00 mm, Closed End of 4.50" ID Gauge Wheel Cylinder to Rod End of 4.75" ID Master Cylinder

1шт.

see item number 14, page 8-25

1шт.
