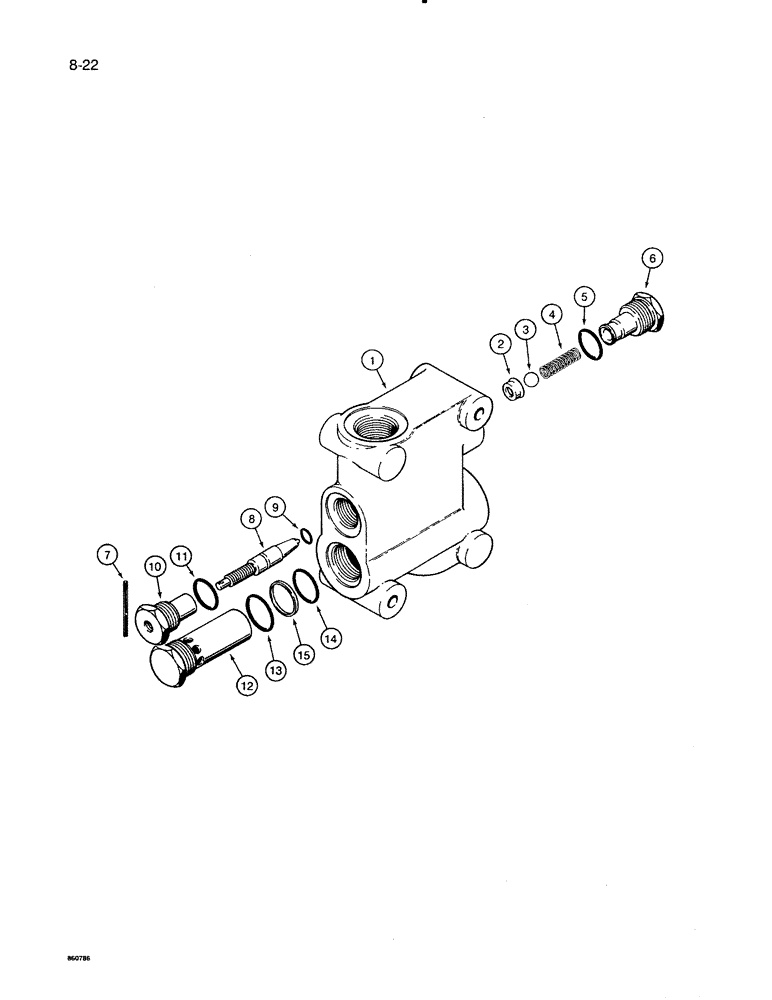

Запчасти Case IH 8500 (8-22) - FLOW CONTROL VALVE (08) - HYDRAULICS

84982C92

VALVE

ASSEMBLY - flow control, units with 3-1/4 inch wide fan

1шт.

84935C92

VALVE, CHECK

VALVE ASSEMBLY - flow control, units with 5 inch wide fan

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - flow control valve

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - check ball

1шт.

3

17016R1

BALL,1/2" Dia

1шт.

4

262253C1

SPRING

- check ball

1шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

1шт.

6

59060C1

PLUG

- check ball

1шт.

7

17165R1

LOCK PIN,1/8" x 1 3/4", Slotted

Pin, 1/8" x 1 3/4", Slotted

1шт.

8

127745C1

ADJUSTMENT SCREW,3/8" - 24 x 59.18mm

- adjusting, valve

1шт.

9

145637C1

O-RING,0.237" ID x 0.103", 70 Duro

- adjusting screw

1шт.

10

127744C1

RETAINER,7/8" - 14 x 30mm, UNC

ADAPTER - adjusting screw

1шт.

11

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

12

388208R93

VALVE

- relief, pilot operated, 1600 PSI (12065 KPa)

1шт.

used with 84982C92 control valve

1шт.

12

93159C1

VALVE

- relief, pilot operated, 2600 PSI (17926 KPa)

1шт.

used with 84935C92 control valve

1шт.

13

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

- outer, relief valve body

1шт.

14

362796R1

O-RING,0.924" ID x 0.103" Width

- inner, relief valve body

1шт.

15

378985R2

BACK-UP RING

RING - backup, inner O-ring

1шт.
