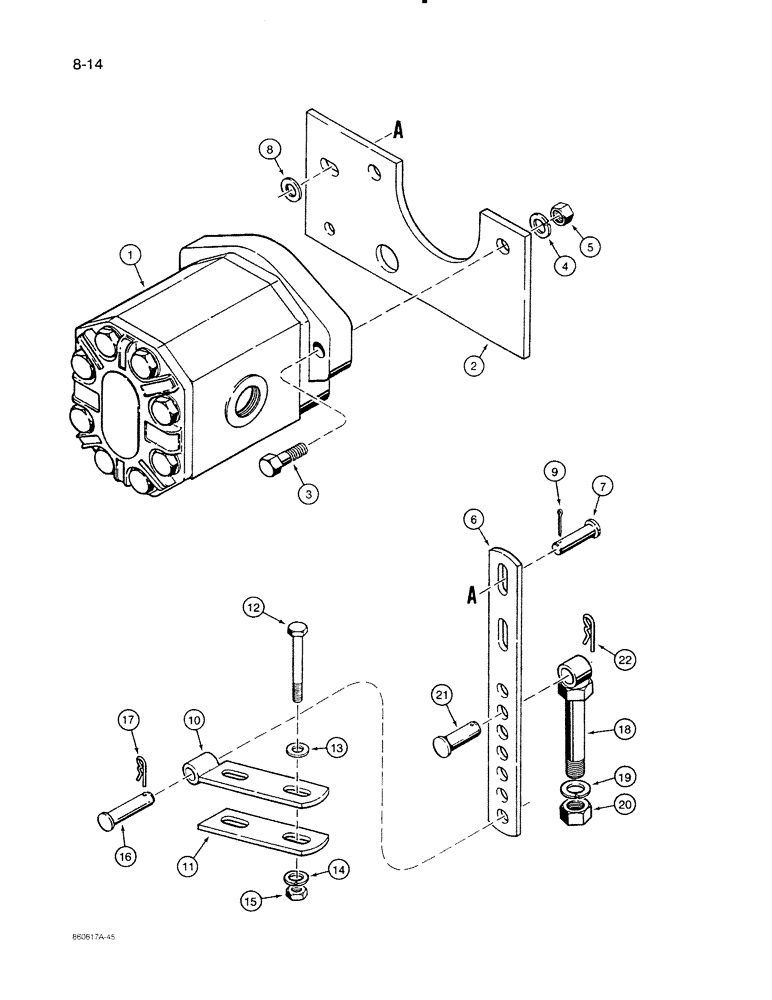

Запчасти Case IH 8500 (8-14) - HYDRAULIC PUMP MOUNTING, WITH PIN ADJUSTABLE SUPPORT PARTS (08) - HYDRAULICS

1

85036C91

PUMP

ASSEMBLY - hydraulic, fan drive, parts list page 8-11

1шт.

1343578C1R

REMAN-HYD PUMP

8500, Reman For New P/N 85036C91

1шт.

1343578C1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

56773C1

PLATE

- pump mounting

1шт.

3

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

- hex head, 1/2" - 13 NC x 2"

2шт.

4

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

5

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

6

56774C1

BRACKET

BAR - pump support, must be shortened when used

1шт.

with anchor pin, item 18

1шт.

7

M906

HEADED PIN,7/16" x 1 1/8"

CLEVIS PIN - 7/16" x 1-1/8"

2шт.

8

21331R1

WASHER

- flat, 7/16"

2шт.

9

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

10

1254128C1

STRAP

BRACKET - mounting, support bar to drawbar, if used

1шт.

11

56776C1

BAR

PLATE - mounting bracket, if used

1шт.

12

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

- hex head, 1/2" - 13 NC x 4-1/2"

2шт.

13

20601R1

WASHER

- flat, 1/2"

2шт.

14

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

15

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

16

22092R1

PIN

CLEVIS PIN - 5/8" x 2-3/4"

1шт.

17

520175R1

CLIP

PIN - cotter, hair type

1шт.

18

1958312C1

ANCHOR

PIN - anchor, drawbar, if used

1шт.

19

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

20

280954

NUT,3/4"-10, G5

1шт.

21

22092R1

PIN

CLEVIS PIN - bar to anchor pin, 5/8" x 2-3/4"

1шт.

22

520175R1

CLIP

PIN - cotter, hair type

1шт.
