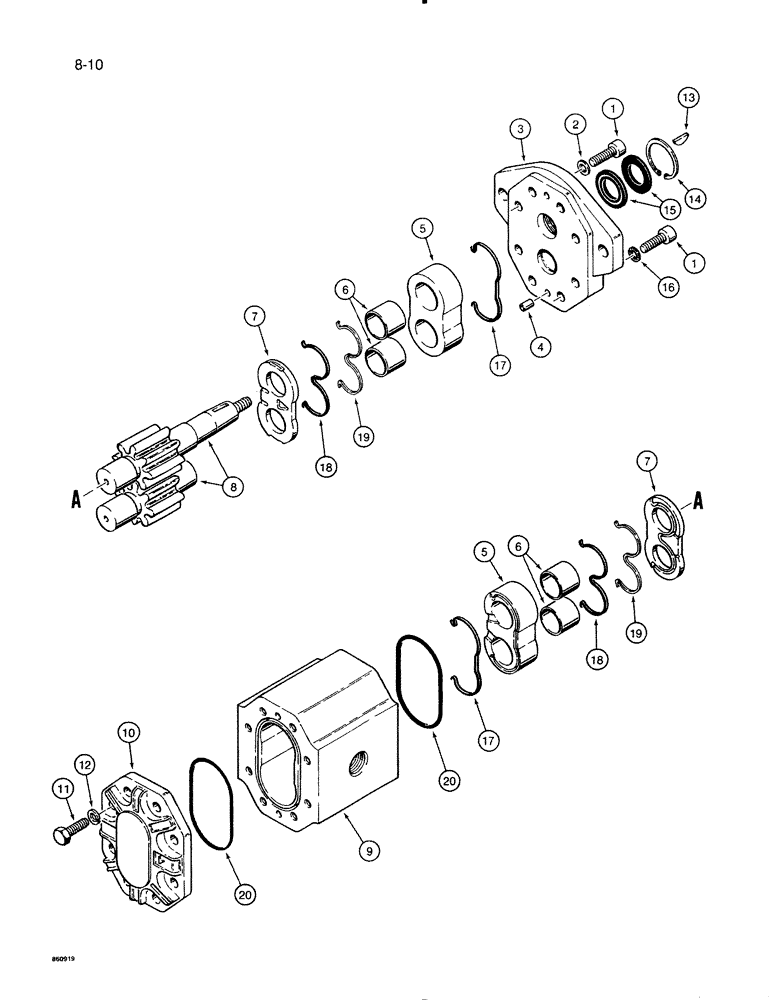

Запчасти Case IH 8500 (8-10) - HYDRAULIC PUMP, 85036C91 (08) - HYDRAULICS

85036C91

PUMP

ASSEMBLY - hydraulic, fan drive

1шт.

1343578C1R

REMAN-HYD PUMP

8500, Reman For New P/N 85036C91

1шт.

1343578C1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

SCREW - hex socket head, drive shaft end cover

8шт.

2

NSS

NOT SOLD SEPARAT

WASHER - flat

4шт.

3

NSS

NOT SOLD SEPARAT

COVER - drive shaft end

1шт.

4

NSS

NOT SOLD SEPARAT

DOWEL PIN - cover

2шт.

5

NSS

NOT SOLD SEPARAT

RETAINER - bushing

2шт.

6

NSS

NOT SOLD SEPARAT

BUSHING - pump

4шт.

7

NSS

NOT SOLD SEPARAT

WEAR PLATE - pump

2шт.

8

NSS

NOT SOLD SEPARAT

GEAR SET AND SHAFT - drive and driven, matched set

1шт.

9

NSS

NOT SOLD SEPARAT

HOUSING - gear

1шт.

10

NSS

NOT SOLD SEPARAT

COVER - port end

1шт.

11

NSS

NOT SOLD SEPARAT

BOLT - hex, port end cover

8шт.

12

NSS

NOT SOLD SEPARAT

WASHER - lock

8шт.

13

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

KEY - 1/4" x 7/8", Woodruff

1шт.

93408C1

SEAL KIT

- seal, pump

1шт.

14

376219R1

SNAP RING,1.653, Int, #165

Ring, Snap, 1.653", Int, #165, seal

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - shaft

2шт.

16

NSS

NOT SOLD SEPARAT

WASHER - copper

4шт.

17

NSS

NOT SOLD SEPARAT

SEAL - retainer

2шт.

18

NSS

NOT SOLD SEPARAT

SEAL - pressure

2шт.

19

NSS

NOT SOLD SEPARAT

SPACER - seal

2шт.

20

NSS

NOT SOLD SEPARAT

O-RING - cover to gear housing

2шт.
