Запчасти Case IH 8500 (8-08) - FAN HYDRAULIC SYSTEM, USED WITH TRACTOR REMOTE DIRECT DRIVE PRESSURE (08) - HYDRAULICS

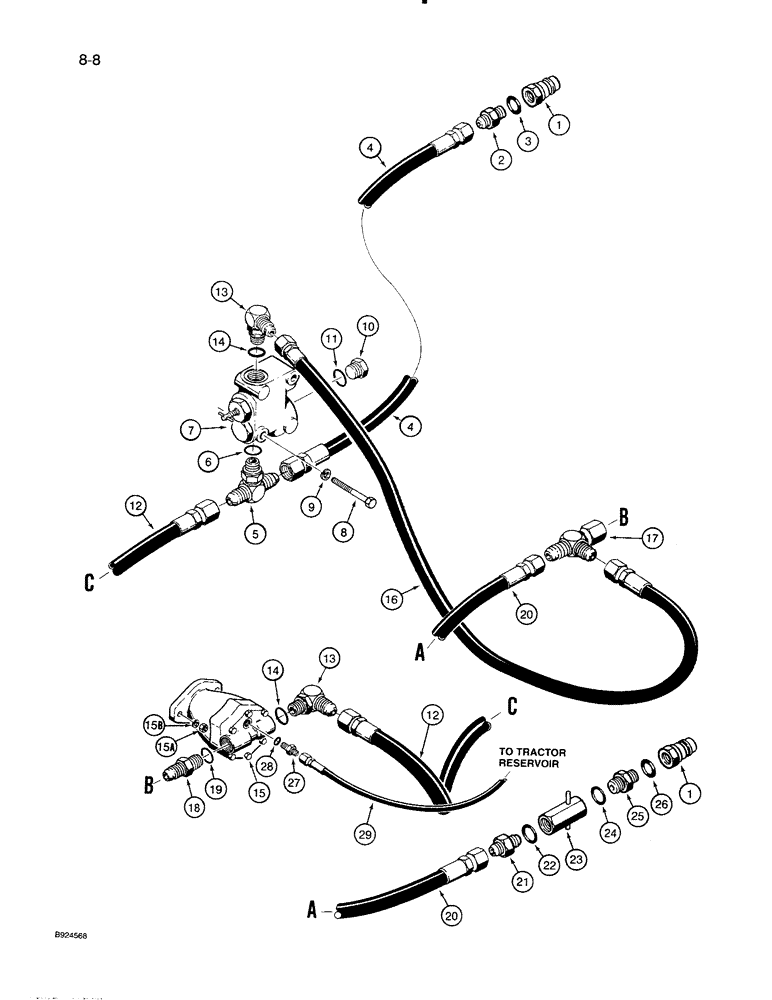

Схема запчастей Case IH 8500 - (8-08) - FAN HYDRAULIC SYSTEM, USED WITH TRACTOR REMOTE DIRECT DRIVE PRESSURE (08) - HYDRAULICS
10
15b
20
17
12
23
3
4
7
2
1
5
21
29
24
16
6
13
20
15
11
28
25
1
14
22
26
27
19
12
8
9
4
18
13
14
15a

Артикул

Название

Примечание

Количество

1

1285718C2

QUICK MALE COUPLING

COUPLER - remote, male

2шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

118236A1

HOSE

- 185 inch (4700 mm) long, coupler to flow control valve

1шт.

5

218-5185

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 1-1/16-12 inch adj O-ring branch x flare, at "A" port

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

7

84982C92

VALVE

ASSEMBLY - flow control, parts list page 8-19

1шт.

8

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

9

492-11038

LOCK WASHER,3/8"

2шт.

10

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

- hex, 1-1/16-12 inch O-ring boss, "C" port of valve

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

12

843062C1

HYDRAULIC HOSE,0.63" ID x 20.00"

HOSE , To Motor Inlet 0.63" ID x 20.00"

1шт.

13

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss

2шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

15

85005C92

MOTOR

ASSEMBLY - hydraulic, fan drive, parts list page 8-21

1шт.

85005C93R

REMAN-HYD MOTOR

8500 REMAN FOR NEW P/N 85005C92

1шт.

85005C93C

CORE-MOTOR HYDRAULIC

RETURN NUMBER

1шт.

15a

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

15b

492-11038

LOCK WASHER,3/8"

2шт.

16

843064C1

HOSE ASSY.

HOSE - 28 inch (711 mm) long, return, flow control valve to return tee

1шт.

17

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

Adj straight thread, return, at pump 37º, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

18

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

20

118237A1

HYDRAULIC HOSE,19.05 mm ID x 5840.00 mm

- Return, Pump to check valve 19.05 mm ID x 5840.00 mm

1шт.

21

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 7/8-14 inch O-ring

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

23

1279338C1

VALVE

- check

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

25

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8-14 flare x 3/4-16 inch O-ring boss

1шт.

26

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

27

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

1шт.

29

810939C1

HOSE

- 210 inch (5335 mm) long, motor drain

1шт.

28

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Выбрано товаров: 33
