Запчасти Case IH 8500 (8-04) - FAN HYDRAULIC SYSTEM, SUCTION AND PRESSURE LINES, USED WITH P.T.O. PUMP PRESSURE (08) - HYDRAULICS

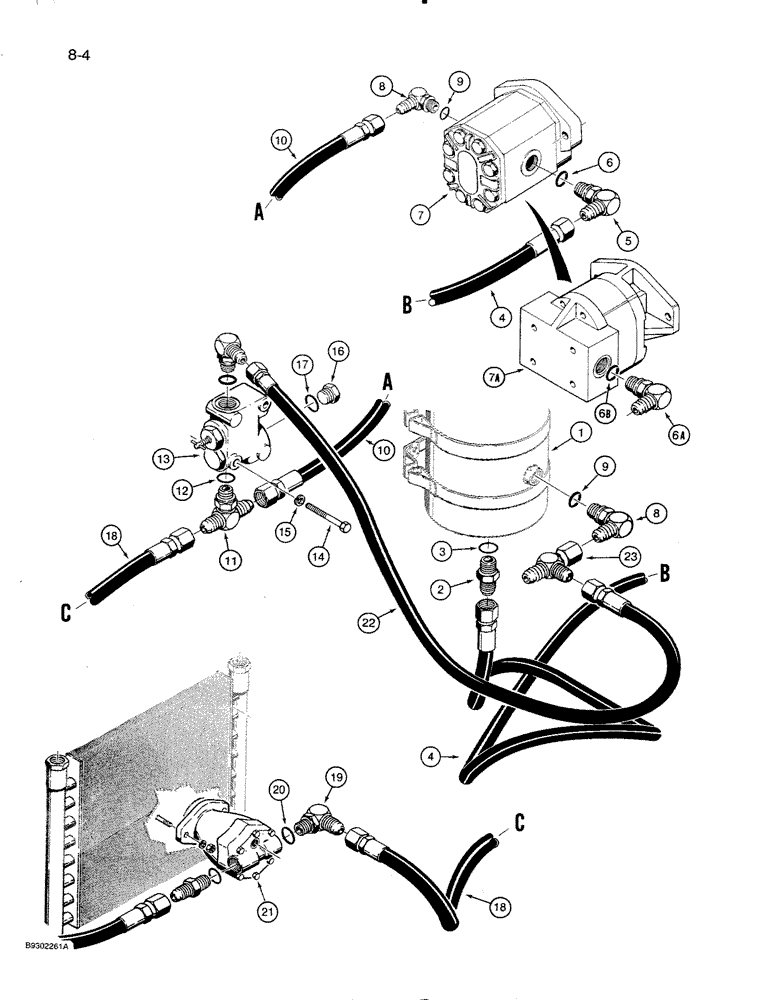

Схема запчастей Case IH 8500 - (8-04) - FAN HYDRAULIC SYSTEM, SUCTION AND PRESSURE LINES, USED WITH P.T.O. PUMP PRESSURE (08) - HYDRAULICS
4
20
5
4
7a
21
12
6b
15
10
13
7
2
18
9
17
14
6a
1
19
18
9
11
22
16
3
6
23
8
8
10

Артикул

Название

Примечание

Количество

1

156395C91

RESERVOIR

ASSEMBLY - hydraulic, see page 8-3 for components

1шт.

2

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-5/8-12 flare x 1-5/16-12 inch O-ring

1шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 1/8 inch

1шт.

4

843065C1

HOSE ASSY.

HOSE - 132 inch (3353 mm) long, Serial Range: reservoir-pump

1шт.

5

218-5112

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

- 90 degree, 1-5/8-12 inch flare x adj O-ring boss, used with 85036C91 pump, item 7

1шт.

6

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

6a

218-5116

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 deg, 1-5/8-12 flare x 1-5/16-12 inch adj O-ring, used with 1343578C1 pump, item 7A

1шт.

6b

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 1/8 inch

1шт.

7

85036C91

PUMP

ASSEMBLY - hydraulic, fan drive, parts list page 8-11

1шт.

1343578C1R

REMAN-HYD PUMP

8500, Reman For New P/N 85036C91

1шт.

1343578C1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

7a

1343578C1

PUMP

ASSEMBLY - hydraulic, fan drive, parts list page 8-13

1шт.

1343578C1R

REMAN-HYD PUMP

8500

1шт.

1343578C1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

8

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss

3шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

10

843061C1

HYDRAULIC HOSE,0.63" ID x 138.00", SAE 100R2A

Pump to Flow Control Valve 0.63" ID x 138.00", SAE 100R2A

1шт.

11

218-5185

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 1-1/16-12 inch adj O-ring branch x flare, at "A" port

1шт.

12

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

13

84935C92

VALVE, CHECK

VALVE ASSEMBLY - flow control, 2600 PSI, used with 5 inch fan, parts list page 8-23

1шт.

13

84982C92

VALVE

ASSEMBLY - flow control, 1600 PSI, used with 3-1/4 inch fan, parts list page 8-23

1шт.

14

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

15

492-11038

LOCK WASHER,3/8"

2шт.

16

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

- hex, 1-1/16-12 inch O-ring boss, "C" port of valve

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

18

843062C1

HYDRAULIC HOSE,0.63" ID x 20.00"

HOSE , To Motor Inlet 0.63" ID x 20.00"

1шт.

19

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss

1шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

21

85005C92

MOTOR

ASSEMBLY - hydraulic, fan drive, parts list page 8-21, see page 8-7 for cooler return lines

1шт.

85005C93R

REMAN-HYD MOTOR

8500 REMAN FOR NEW P/N 85005C92

1шт.

85005C93C

CORE-MOTOR HYDRAULIC

RETURN NUMBER

1шт.

22

843064C1

HOSE ASSY.

HOSE - 28 inch (711 mm) long, return, flow control valve to reservoir tee

1шт.

23

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

Adj straight thread, at reservoir, See page 8-7 for cooler return lines 37º, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.
