Запчасти Case IH 8500 (8-02) - FAN HYDRAULIC SYSTEM, HYDRAULIC RESERVOIR AND MOUNTING PARTS, USED WITH P.T.O. PUMP PRESSURE (08) - HYDRAULICS

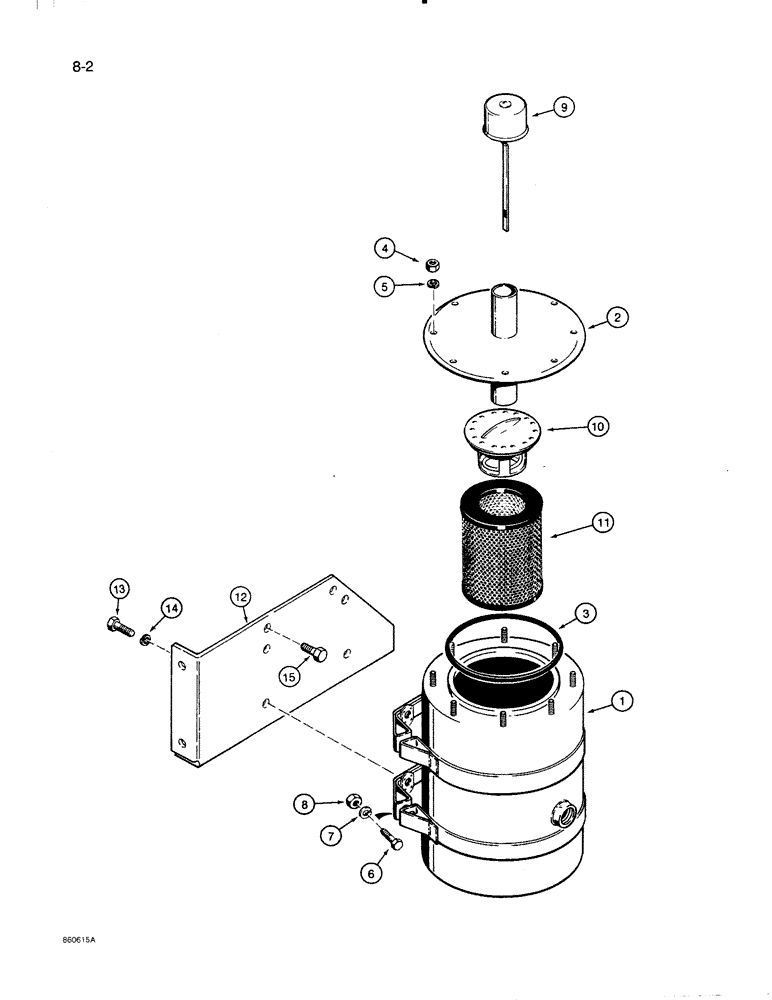

Схема запчастей Case IH 8500 - (8-02) - FAN HYDRAULIC SYSTEM, HYDRAULIC RESERVOIR AND MOUNTING PARTS, USED WITH P.T.O. PUMP PRESSURE (08) - HYDRAULICS
15
1
9
11
6
10
3
12
4
8
7
13
2
14
5

Артикул

Название

Примечание

Количество

156395C91

RESERVOIR

ASSEMBLY - hydraulic, fan drive

1шт.

1

NSS

NOT SOLD SEPARAT

RESERVOIR - hydraulic

1шт.

2

163646C91

COVER

- reservoir

1шт.

3

22760R1

O-RING,6.725" ID x 7.275" OD x 0.275"

- reservoir cover

1шт.

4

120375

NUT,Hex, 1/4" - 20, Gr 5

Cover 1/4"-20, G5

8шт.

5

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

6

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

- hex head, 5/16" - 18 NC x 1"

2шт.

7

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

120376

NUT,5/16"-18, G5

2шт.

9

567521R91

CAP

AND DIPSTICK - reservoir

1шт.

10

386121R92

VALVE

RELIEF VALVE - filter

1шт.

11

528493R3

HYDRAULIC OIL FILTER

FILTER - hydraulic oil

1шт.

12

842976C2

SUPPORT

BRACKET - mounting, reservoir and front step, right-hand

1шт.

13

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

14

492-21038

LOCK WASHER,3/8"

3/8"

4шт.

15

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

Выбрано товаров: 16
