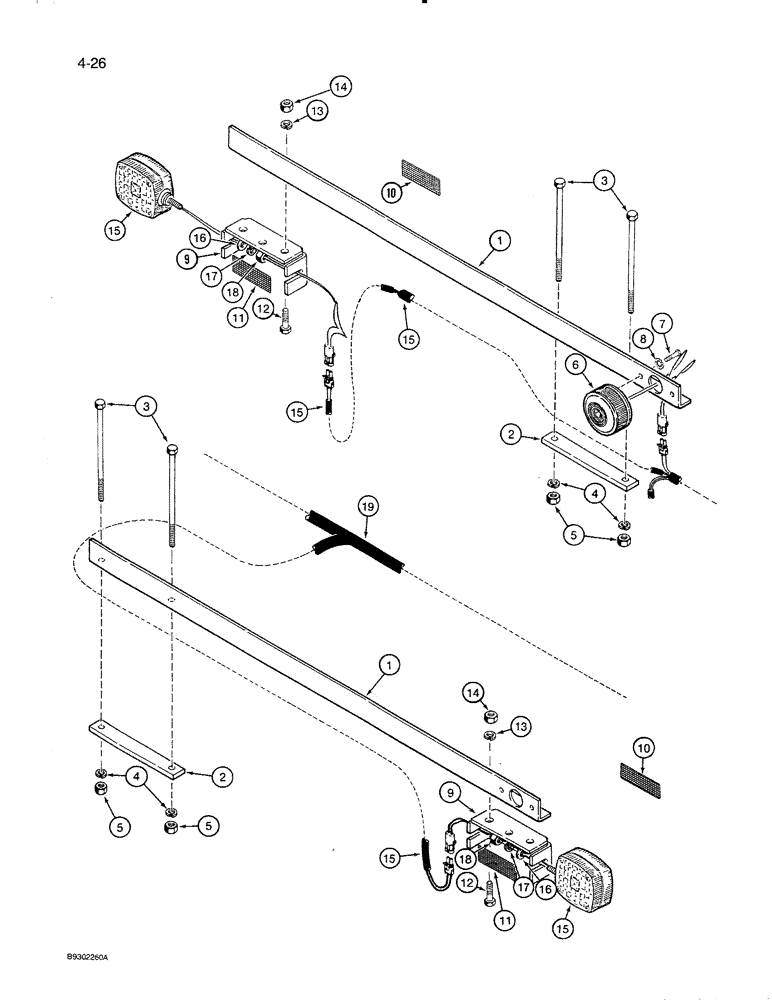

Запчасти Case IH 8500 (4-26) - TRANSPORT LAMPS, 33 FOOT AND 45 FOOT WIDE DRILLS (04) - ELECTRICAL SYSTEMS

1

1344831C1

ANGLE

SUPPORT - left-hand and right-hand, transport lamps, units with 7, 10 and 12 inch row spacing

2шт.

2

1344570C1

BAR

- mounting, lamp support

2шт.

3

413-6120

BOLT,Hex, 3/8" - 16 x 7-1/2", Gr 5

- hex, 3/8 NC x 7-1/2 inch

4шт.

4

492-11038

LOCK WASHER,3/8"

4шт.

5

425-106

NUT,3/8"-16, Cl 5

4шт.

6

91986C91

LIGHT

LAMP ASSEMBLY - tail, parts list page 4-29

1шт.

7

261-1458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - self-tapping, pan Phillips, No. 10 NC x 1/2 inch

2шт.

1344784C1

SUPPORT

BRACKET - mounting, reflectors and turn signal lamp

2шт.

9

NSS

NOT SOLD SEPARAT

BRACKET - mounting, turn signal

1шт.

10

1284365C2

REFLECTOR

- front, amber

1шт.

11

1284374C1

REFLECTOR,Reflector Red

- rear, red

1шт.

12

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

4шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

15

91913C91

LIGHT

LAMP ASSEMBY - turn signal, parts list page 4-31

2шт.

16

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

2шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

18

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

2шт.

19

REF

INSTRUCTION

HARNESS - tool bar, see pages 4-7 - 4-13 for correct harness

1шт.

8

493-81000

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, (3/16") Ext-Int Tooth, #10

2шт.
