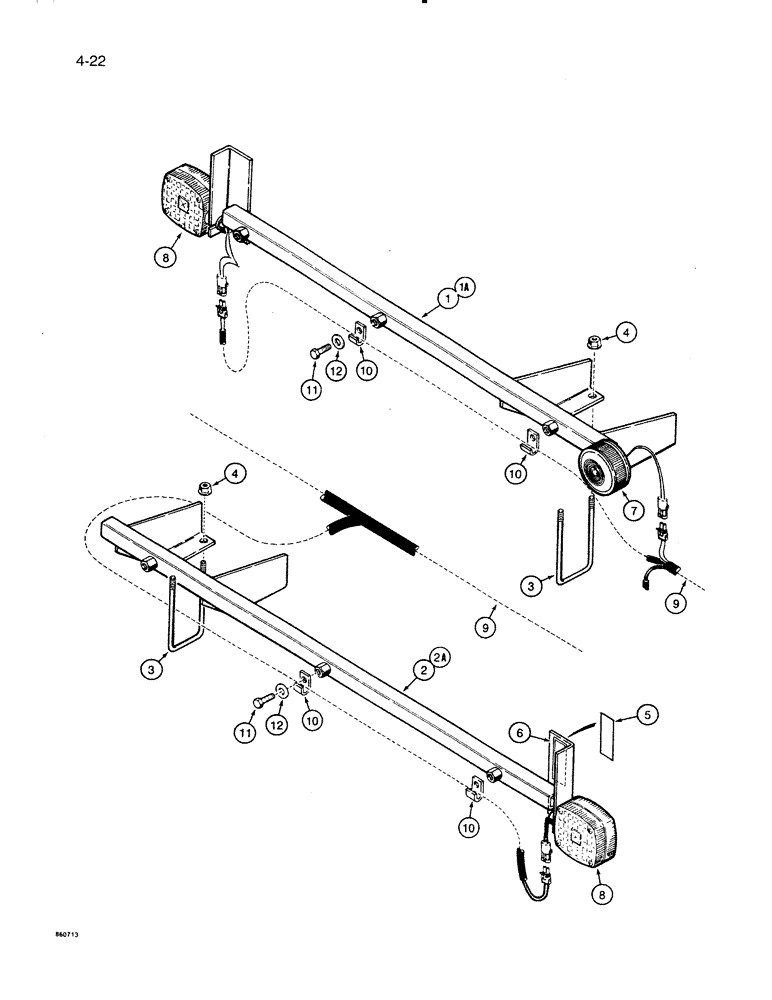

Запчасти Case IH 8500 (4-22) - TRANSPORT LAMPS, 45 FOOT WIDE DRILL (04) - ELECTRICAL SYSTEMS

1

1337053C1

SUPPORT

- left-hand, transport lamps

1шт.

units with 7 inch row spacing

1шт.

1a

1337051C1

SUPPORT

- left-hand, transport lamps

1шт.

units with 10 and 12 inch row spacing

1шт.

2

1337054C1

SUPPORT

- right-hand, transport lamps

1шт.

units with 7 inch row spacing

1шт.

2a

1337052C1

SUPPORT

- right-hand, transport lamps

1шт.

units with 10 and 12 inch row spacing

1шт.

3

89000C1

BOLT

U-bolt -, Serial Range: support-frames

4шт.

4

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, flange lock

8шт.

5

1284365C1

REFLECTOR,Reflector Amber

- side, amber

2шт.

6

1284374C1

REFLECTOR,Reflector Red

- rear, red

2шт.

7

91986C91

LIGHT

LAMP ASSEMBLY - tail, parts list page 4-29

1шт.

8

91913C91

LIGHT

LAMP ASSEMBLY - turn signal, parts list page 4-31

2шт.

9

REF

INSTRUCTION

HARNESS - tool bar, see pages 4-7 through 4-11 for

1шт.

correct harness

1шт.

10

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - harness to lamp support

6шт.

11

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

- hex head, 3/8" - 16 NC x 1/2"

6шт.

12

120394

WASHER,3/8", SAE

WASHER - flat, 3/8"

6шт.
