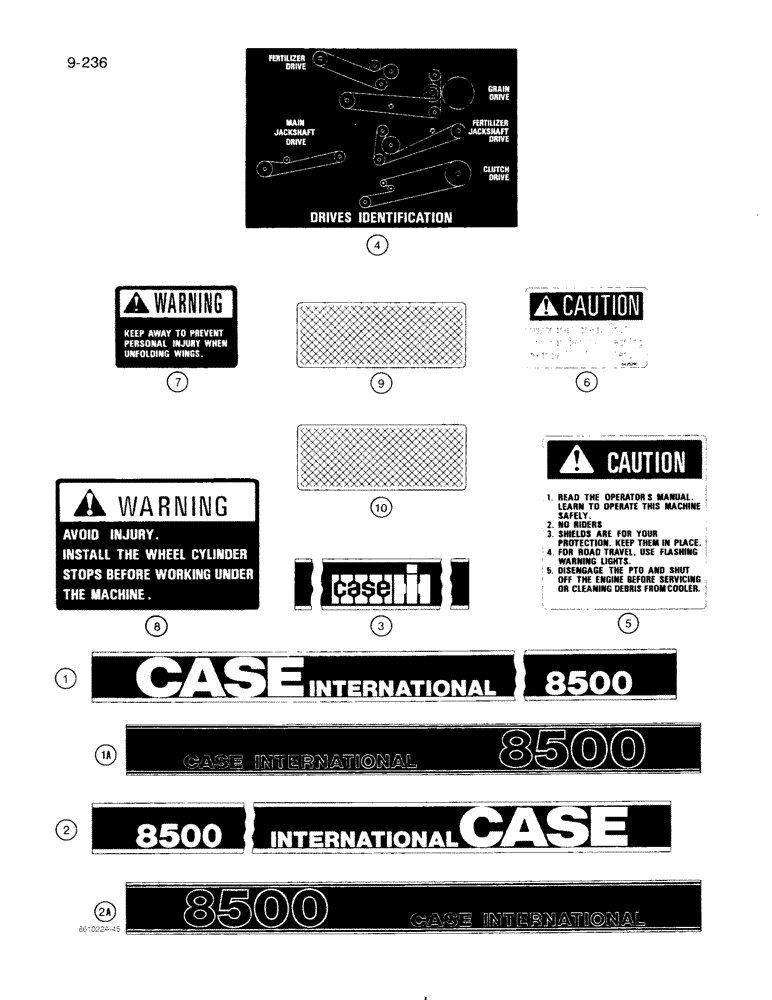

Запчасти Case IH 8500 (9-236) - DECALS (09) - CHASSIS/ATTACHMENTS

1

842231C1

DECAL

- "Case International 8500", with stripes

1шт.

left-hand hopper side, if used

1шт.

1a

1973332C1

DECAL

- "Case International 8500", with stripes

1шт.

left-hand hopper side, if used

1шт.

2

842232C1

DECAL

- "8500 International Case", with stripes

1шт.

right-hand hopper side, if used

1шт.

2a

1973331C1

DECAL

- "8500 Case International", with stripes

1шт.

right-hand hopper side, if used

1шт.

3

842233C1

DECAL

- "CaseIH", with stripes, front and rear of hopper

2шт.

4

96182C1

PRODUCT GRAPHIC

DECAL - "Drives Identification", at chain guard

1шт.

5

88934C3

DECAL

- "Caution", general instructions, at front guard rail

2шт.

6

842529C2

DECAL

- "Caution", cooler fan hazard

1шт.

7

96181C1

PRODUCT GRAPHIC

DECAL - "Warning", prevent injury, at drill frame

2шт.

8

149366C3

DECAL

- "Warning", avoid injury, at transport arms

2шт.

9

1284365C1

REFLECTOR,Reflector Amber

- amber, transport lamp arm

2шт.

10

1284374C1

REFLECTOR,Reflector Red

- red, transport lamp arm

2шт.
