Запчасти Case IH 8500 (9-228) - AIR SYSTEM HOSES, 1-3/8" ID, MANIFOLD TO FURROW OPENERS, UNITS WITH 7" ROW SPACING, 33 WIDE DRILL (09) - CHASSIS/ATTACHMENTS

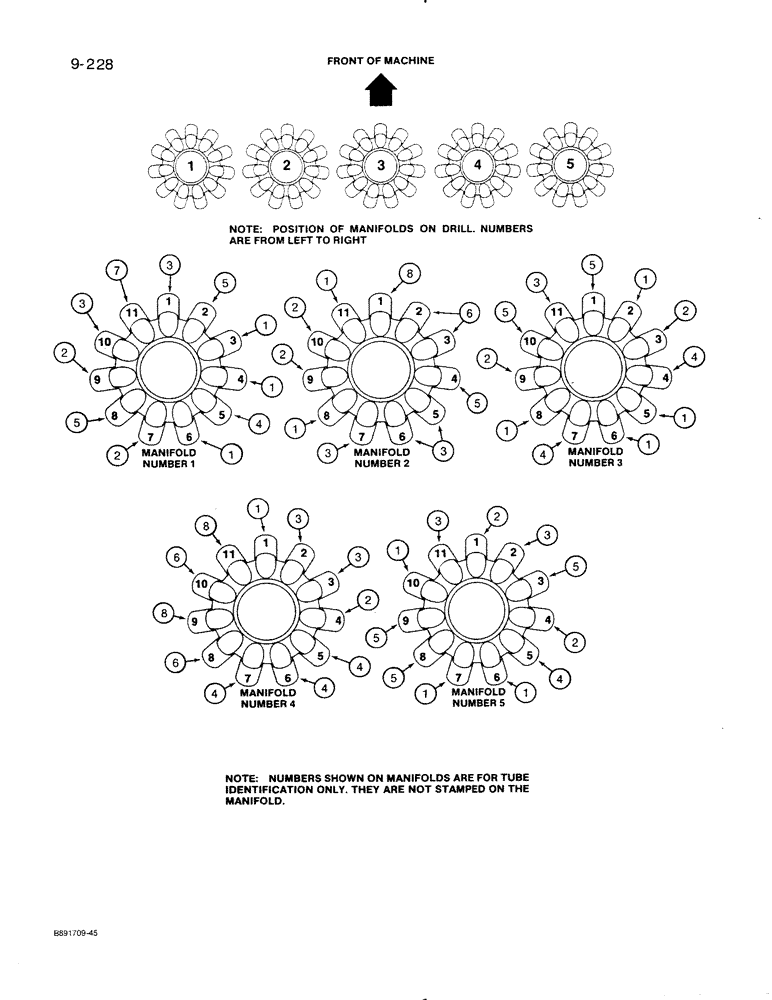

Схема запчастей Case IH 8500 - (9-228) - AIR SYSTEM HOSES, 1-3/8" ID, MANIFOLD TO FURROW OPENERS, UNITS WITH 7" ROW SPACING, 33 WIDE DRILL (09) - CHASSIS/ATTACHMENTS
4
7
1
5
1
1
8
1
4
5
6
2
2
2
1
1
5
5
5
8
5
1
1
3
3
1
3
3
3
2
5
2
8
2
4
1
3
6
3
1
4
2
3
4
1
6
5
3
2
4
1
4
2

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

HOSE - 63 inch (1600 mm) long, cut from 1333818C1

1шт.

bulk roll, see below

13шт.

2

REF

INSTRUCTION

HOSE - 68 inch (1727 mm) long, cut from 1333818C1

1шт.

bulk roll, see below

9шт.

3

REF

INSTRUCTION

HOSE - 74 inch (1880 mm) long, cut from 1333818C1

1шт.

bulk roll, see below

10шт.

4

REF

INSTRUCTION

HOSE - 79 inch (2007 mm) long, cut from 1333818C1

1шт.

bulk roll, see below

7шт.

5

REF

INSTRUCTION

HOSE - 84 inch (2134 mm) long, cut from 1333818C1

1шт.

bulk roll, see below

8шт.

6

REF

INSTRUCTION

HOSE - 90 inch (2286 mm) long, cut from 1333818C1

1шт.

bulk roll, see below

4шт.

7

REF

INSTRUCTION

HOSE - 96 inch (2440 mm) long, cut from 1333818C1

1шт.

bulk roll, see below

1шт.

8

REF

INSTRUCTION

HOSE - 102 inch (2590 mm) long, cut from 1333818C1

1шт.

bulk roll, see below

3шт.

1333818C1

HOSE,100.00"

- manifold to furrow openers, bulk roll

1шт.

1-3/8 inch (35 mm) ID x 100 foot (30480 mm) long

1шт.
