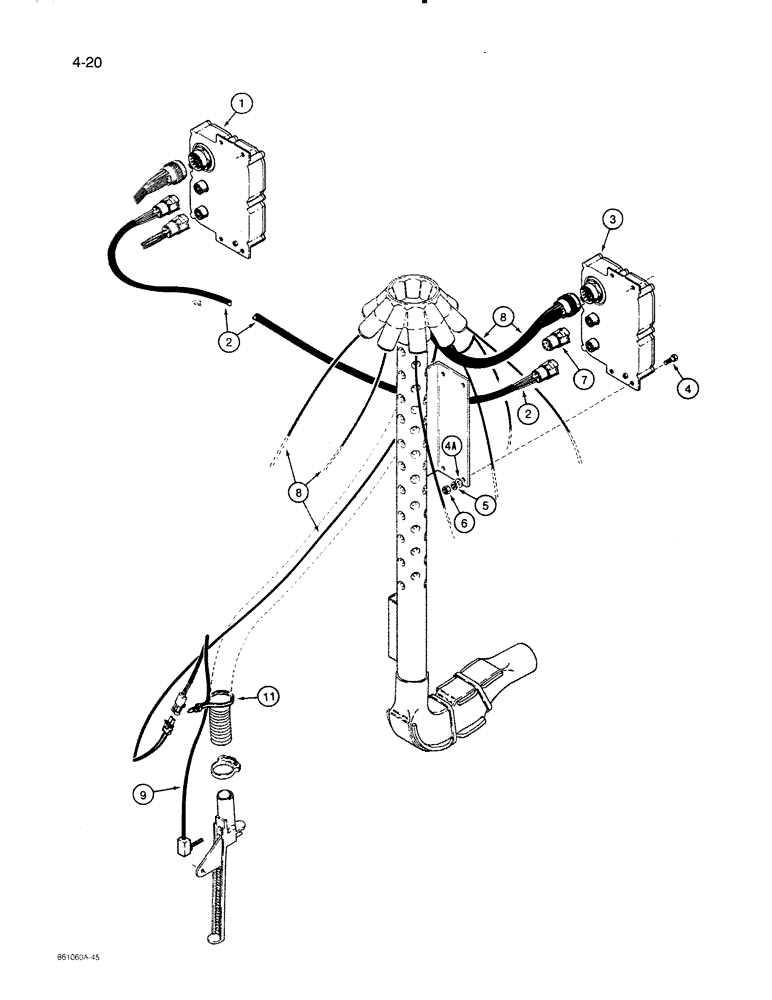

Запчасти Case IH 8500 (4-20) - BLOCKAGE MODULES & PIN SENSORS, UNITS W/ 10" ROW SPACING & BLOCKAGE MONITOR SYS., 33 FOOT WIDE DRILL (04) - ELECTRICAL SYSTEMS

1

91482C2

CONTROL

MODULE - blockage, number 3 and 4, see page 4-13 for tool bar harness connection

2шт.

2

91801C1

HARNESS

- jumper, to blockage modules 1, 2 and 5

3шт.

3

91482C2

CONTROL

MODULE - blockage, new, number 1, 2 and 5, see page 4-7, item 6 for remanufactured module and return part numbers

3шт.

4

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

12-16шт.

4a

120392

WASHER,1/4", SAE

- flat, 1/4"

12шт.

5

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

12шт.

6

120375

NUT,Hex, 1/4" - 20, Gr 5

12шт.

7

1337046C1

PLUG

- terminator, blockage module, used at number 1 and 5 modules

2шт.

8

91893C1

HARNESS

- at manifold pipe, blockage module to pin sensor

5шт.

9

84202C1

SENSOR

PIN AND WIRE - blockage module, at furrow openers

40шт.

10

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - nylon tie, large, jumper harness to manifold pipes, not shown

1шт.

11

533959R1

CABLE TIE,.135" x 11"

STRAP - nylon tie, small, sensor wire to furrow opener hoses

1шт.
