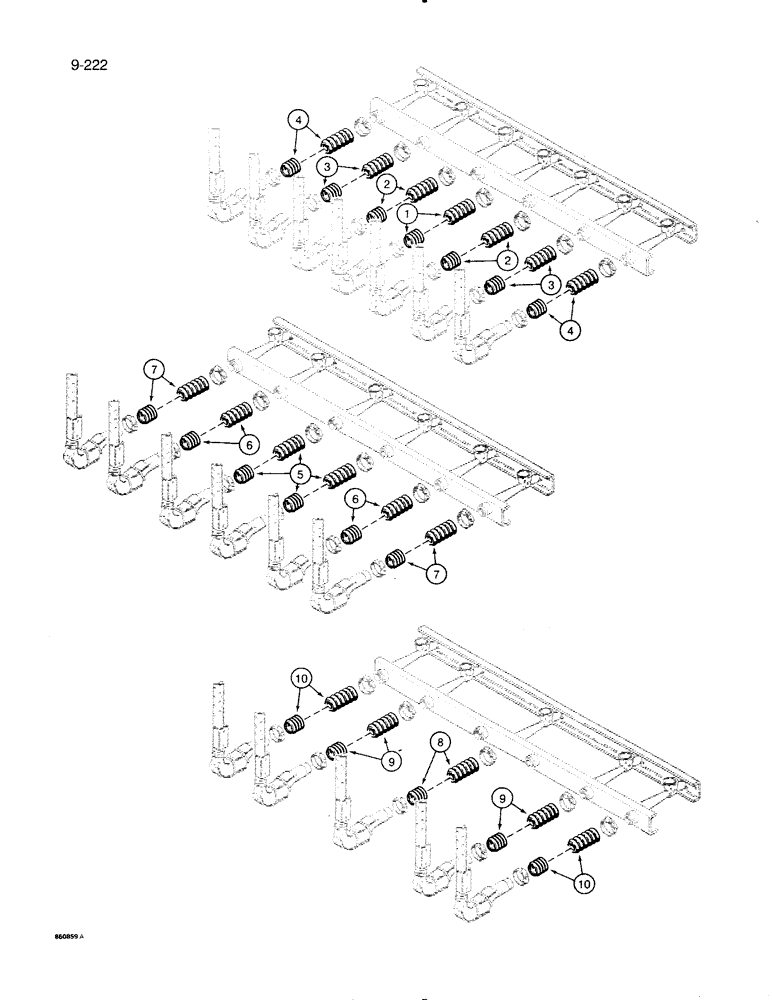

Запчасти Case IH 8500 (9-222) - AIR SYSTEM HOSES, 2-1/2 INCH ID, VENTURIS TO MANIFOLD PIPES, 45 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
89026C1
HOSE - 9 foot 6 inches (2900 mm) long, Serial Range: venturi-manifold
1шт.
pipe, cut from 1978963C1 or 1978964C1 bulk roll, see below
1шт.
2
841629C2
HOSE - 12 foot 4 inches (3760 mm) long, Serial Range: venturi-manifold
1шт.
pipe, cut from 1978963C1 or 1978964C1 bulk roll, see below
2шт.
3
89024C2
HOSE - 21 foot (6400 mm) long, Serial Range: venturi-manifold
1шт.
pipe, cut from 1978963C1 or 1978964C1 bulk roll, see below
2шт.
4
89023C1
HOSE - 23 foot (7010 mm) long, Serial Range: venturi-manifold
1шт.
pipe, cut from 1978963C1 or 1978964C1 bulk roll, see below
2шт.
5
1333744C1
HOSE
- 9 foot (2740 mm) long, venturi to manifold UNITS WITH 10 INCH ROW SPACING
1шт.
pipe, cut from 1978963C1 or 1978964C1 bulk roll, see below UNITS WITH 10 INCH ROW SPACING
2шт.
6
841628C1
HOSE - 16 foot (4880 mm) long, venturi to manifold UNITS WITH 10 INCH ROW SPACING
1шт.
pipe, cut from 1978963C1 or 1978964C1 bulk roll, see below UNITS WITH 10 INCH ROW SPACING
2шт.
7
89024C1
HOSE - 21 foot (6400 mm) long, venturi to manifold UNITS WITH 10 INCH ROW SPACING
1шт.
pipe, cut from 1978963C1 or 1978964C1 bulk roll, see below UNITS WITH 10 INCH ROW SPACING
2шт.
8
841628C1
HOSE - 16 foot (4880 mm) long, venturi to manifold UNITS WITH 12 INCH ROW SPACING
1шт.
pipe, cut from 1978963C1 or 1978964C1 bulk roll, see below UNITS WITH 12 INCH ROW SPACING
1шт.
9
89025C1
HOSE - 16 foot 6 inches (5030 mm) long, venturi to manifold UNITS WITH 12 ROW SPACING
1шт.
pipe, cut from 1978963C1 or 1978964C1 bulk roll, see below UNITS WITH 12 INCH ROW SPACING
2шт.
10
89023C1
HOSE - 23 foot (7010 mm) long, venturi to manifold UNITS WITH 12 INCH ROW SPACING
1шт.
pipe, cut from 1978963C1 or 1978964C1 bulk roll, see below UNITS WITH 12 INCH ROW SPACING
2шт.
1978963C1
HOSE
- manifold to venturi, bulk roll, UNITS WITH 12 INCH ROW SPACING
1шт.
2-1/2 inch (64 mm) ID x 81 ft (24690 mm) long UNITS WITH 12 ROW SPACING
1шт.
86993497
HOSE,2.50" ID
1978964C1 Sold by the Foot, Units with 12 Inch Row Spacing 2.50" ID
1шт.
2-1/2 inch (64 mm) ID x 50 ft (15240 mm) long UNITS WITH 12 ROW SPACING
1шт.
Выбрано товаров: 24
