Запчасти Case IH 8500 (9-220) - AIR SYSTEM HOSES, 2 INCH ID, FAN MANIFOLD TO VENTURIS, 33 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS

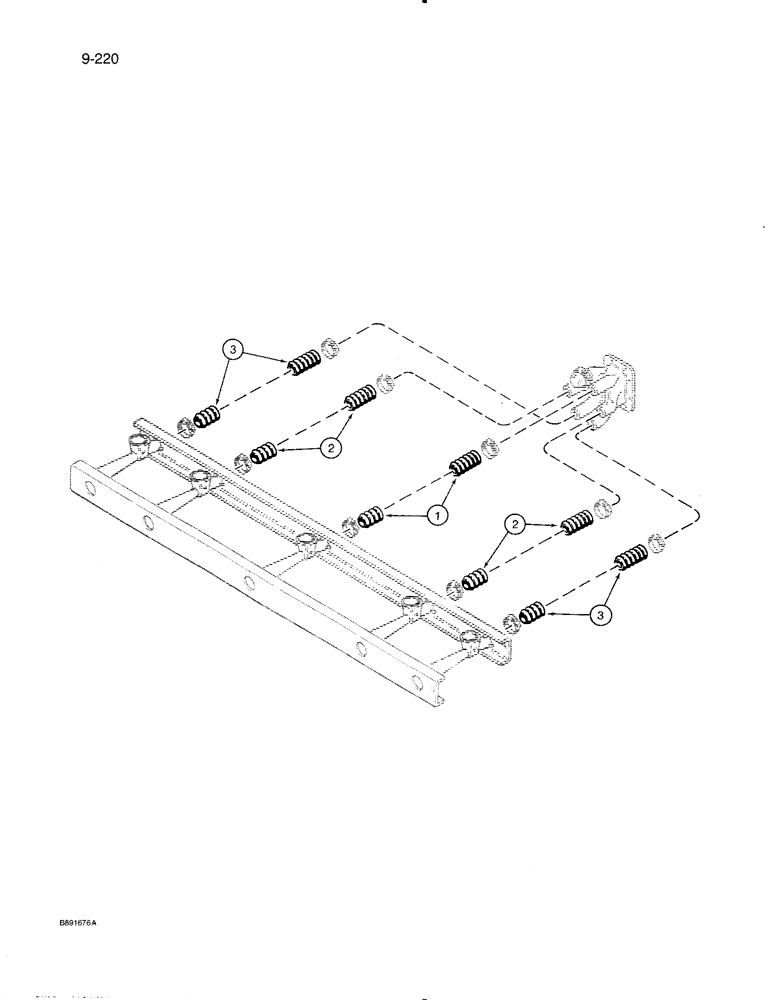

Схема запчастей Case IH 8500 - (9-220) - AIR SYSTEM HOSES, 2 INCH ID, FAN MANIFOLD TO VENTURIS, 33 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS
2
3
1
2
3

Артикул

Название

Примечание

Количество

1

842025C1

HOSE - 15 inch (381 mm) long, Serial Range: manifold-venturi,

1шт.

cut from 1333819C1 bulk roll, see below

1шт.

2

843003C1

HOSE - 34-1/2 inch (876 mm) long, Serial Range: manifold-venturi,

1шт.

cut from 1333819C1 bulk roll, see below

2шт.

3

843004C1

HOSE - 46-1/2 inch (1181 mm) long, Serial Range: manifold-venturi,

1шт.

cut from 1333819C1 bulk roll, see below

2шт.

1333819C1

HOSE,2.00" ID x 20.00"

- manifold to venturi, bulk roll

1шт.

2 inch (51 mm) ID x 100 ft (30480 mm) long

1шт.
