Запчасти Case IH 8500 (9-218) - AIR SYSTEM HOSES, 2 INCH ID, FAN MANIFOLD TO VENTURIS, 45 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS

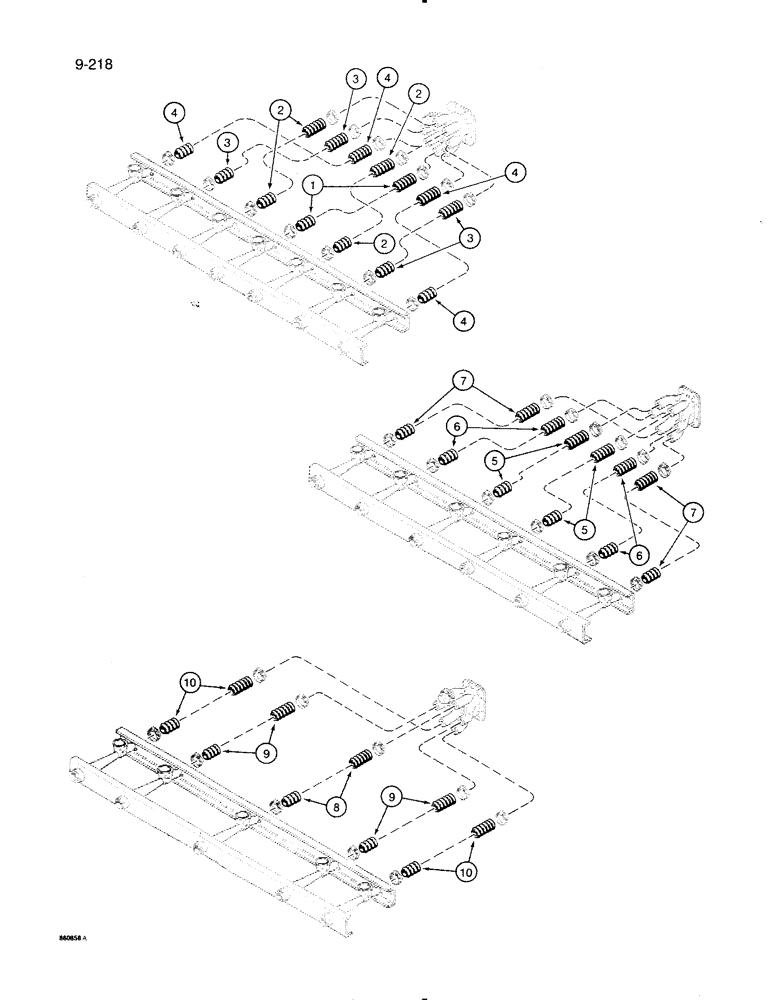

Схема запчастей Case IH 8500 - (9-218) - AIR SYSTEM HOSES, 2 INCH ID, FAN MANIFOLD TO VENTURIS, 45 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS
2
2
4
4
9
7
2
1
8
4
3
6
6
9
7
10
10
3
3
5
4
5

Артикул

Название

Примечание

Количество

1

842025C1

HOSE - 15 inch (381 mm) long, Serial Range: manifold-venturi,

1шт.

cut from 1333819C1 bulk roll, see below

1шт.

2

843005C1

HOSE - 21-1/2 inch (546 mm) long, Serial Range: manifold-venturi,

1шт.

cut from 1333819C1 bulk roll, see below

2шт.

3

843002C1

HOSE - 32-1/2 inch (826 mm) long, Serial Range: manifold-venturi,

1шт.

cut from 1333819C1 bulk roll, see below

2шт.

4

843004C1

HOSE - 46-1/2 inch (1181 mm) long, Serial Range: manifold-venturi,

1шт.

cut from 1333819C1 bulk roll, see below

2шт.

5

843077C1

HOSE - 17 inch (432 mm) long, manifold to venturi, UNITS WITH 10 ROW SPACING

1шт.

cut from 1333819C1 bulk roll, see below UNITS WITH 10 INCH ROW SPACING

2шт.

6

843003C1

HOSE - 34-1/2 inch (876 mm) long, manifold to venturi, UNITS WITH 10 ROW SPACING

1шт.

cut from 1333819C1 bulk roll, see below UNITS WITH 10 INCH ROW SPACING

2шт.

7

843004C1

HOSE - 46-1/2 inch (1181 mm) long, manifold to venturi, UNITS WITH 10 INCH ROW SPACING

1шт.

cut from 1333819C1 bulk roll, see below UNITS WITH 10 INCH ROW SPACING

2шт.

8

842025C1

HOSE - 15 inch (381 mm) long, manifold to venturi, UNITS WITH 12 ROW SPACING

1шт.

cut from 1333819C1 bulk roll, see below UNITS WITH 12 INCH ROW SPACING

1шт.

9

843003C1

HOSE - 34-1/2 inch (876 mm) long, manifold to venturi, UNITS WITH 12 ROW SPACING

1шт.

cut from 1333819C1 bulk roll, see below UNITS WITH 12 INCH ROW SPACING

2шт.

10

843004C1

HOSE - 46-1/2 inch (1181 mm) long, manifold to venturi, UNITS WITH 12 ROW SPACING

1шт.

cut from 1333819C1 bulk roll, see below UNITS WITH 12 INCH ROW SPACING

2шт.

1333819C1

HOSE,2.00" ID x 20.00"

- manifold to venturi, bulk roll, UNITS WITH 12 INCH ROW SPACING

1шт.

2 inch (51 mm) ID x 100 ft (30480 mm) long UNITS WITH 12 ROW SPACING

1шт.

Выбрано товаров: 22
