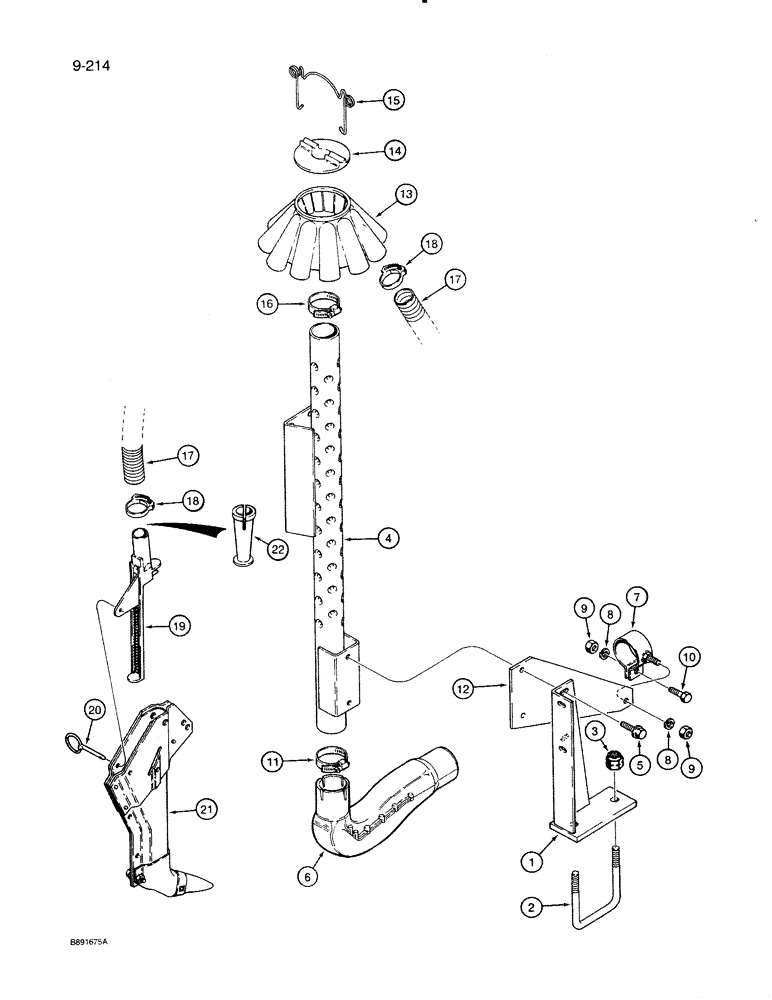

Запчасти Case IH 8500 (9-214) - AIR SYSTEM, MANIFOLD PIPE TO FURROW OPENERS, UNITS WITH 10 INCH ROW SPACING, 33 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS

1

842819C1

ANCHOR

BRACKET - mounting, manifold, Serial Range: pipe-frame

5шт.

2

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

-, Serial Range: bracket-frame

5шт.

3

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex, self-locking, 5/8" - 11 NC

10шт.

4

841217C1

TUBE ASSY.,485, 230 mm Length

PIPE - manifold, air

5шт.

5

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- special, locking

10шт.

6

1960634C1

ELBOW

- manifold pipe

5шт.

7

842860C1

CLAMP

- elbow, special

5шт.

8

120384

WASHER,1/2"

LOCK, 1/2"

10шт.

9

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

10шт.

10

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

- hex head, 1/2" - 13 NC x 1-1/4"

5шт.

11

1960339C1

HOSE CLAMP,2.25/3.125 HD Worm, W/liner

CLAMP - elbow to manifold pipe

5шт.

12

842862C1

PLATE

SUPPORT - manifold pipe and elbow

5шт.

13

842693C1

MANIFOLD

- distribution, 8 outlet

5шт.

14

842276C1

CAP

- manifold

5шт.

15

842890C2

SPRING

RETAINER - manifold cap

5шт.

16

1960339C1

HOSE CLAMP,2.25/3.125 HD Worm, W/liner

CLAMP - manifold to pipe

5шт.

17

REF

INSTRUCTION

HOSE - manifold to furrow openers

1шт.

see page 9-233 for correct lengths

40шт.

18

91174C1

CLAMP,40.4mm - 46.1mm

- hose, manifold to furrow openers

1шт.

1.60" - 1.80" (40 mm - 46 mm) range

80шт.

18

97612C1

CLAMP

- hose, manifold to furrow openers

1шт.

1.70" - 2.0" (43 mm - 51 mm) range

80шт.

19

89079C1

ADAPTER

- hose to furrow opener

40шт.

20

32-1640

COTTER PIN,1/4" x 2 1/2"

PIN - retainer, adapter to furrow opener

40шт.

21

REF

INSTRUCTION

OPENER ASSEMBLY - furrow, see pages 9-153 and 9-161

1шт.

for furrow openers and mounting parts

40шт.

22

1546951C1

FUNNEL

- hose adapter, small seed, one used per furrow opener

1шт.
