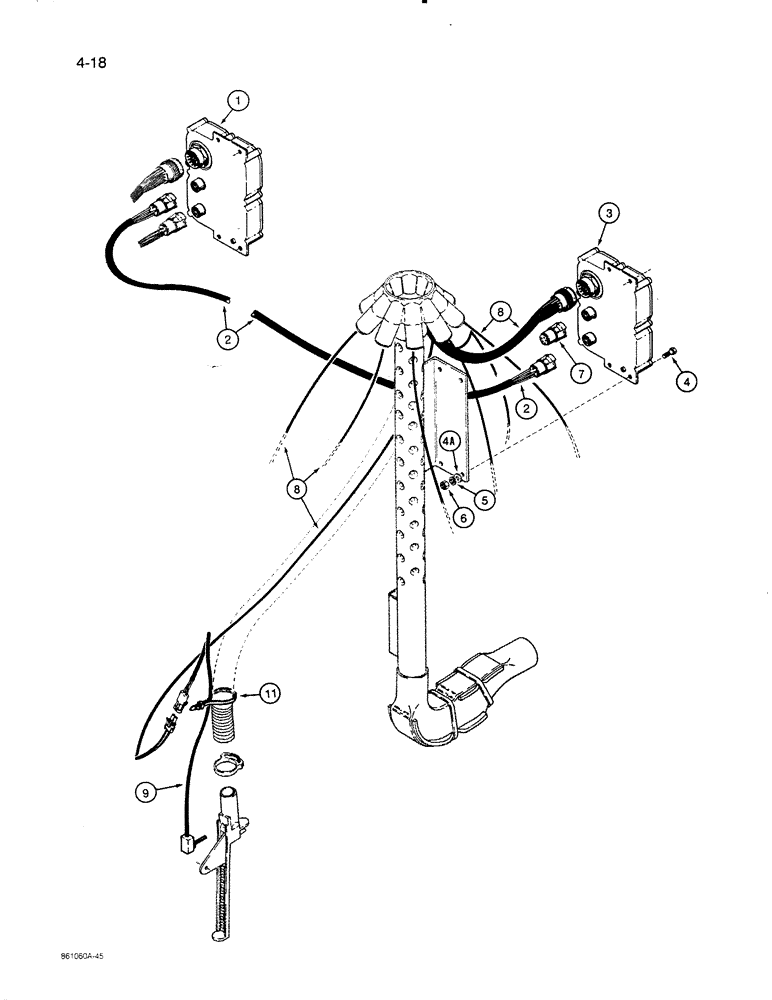

Запчасти Case IH 8500 (4-18) - BLOCKAGE MODULES & PIN SENSORS, UNITS W/ 10 INCH AND 12 INCH ROW SPACING AND BLOCKAGE MONITOR SYS. (04) - ELECTRICAL SYSTEMS

1

91482C2

CONTROL

MODULE - blockage, number 3 and 4, see page 4-11 for tool bar harness connection

2шт.

2

91801C1

HARNESS

- jumper, 242-1/2 inch (6160 mm) long, used on 10 inch row spacing units

4шт.

2

1964509C1

CABLE

HARNESS - jumper, 264-3/16 inch (6710 mm) long, used on 12 inch row spacing units

3шт.

3

91482C2

CONTROL

MODULE - blockage, new, 3 used on 12 inch row spacing units, 4 used on 10 inch row spacing units, see page 4-7, item 6 for remanufactured module and return part numbers

3-4шт.

4

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

12-16шт.

4a

120392

WASHER,1/4", SAE

- flat, 1/4"

12-16шт.

5

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

12-16шт.

6

120375

NUT,Hex, 1/4" - 20, Gr 5

12-16шт.

7

1337046C1

PLUG

- terminator, blockage module, number 1 and 6 on 10 inch units, number 1 and 5 on 12 inch units

2шт.

8

91982C1

HARNESS

- at manifold pipe, blockage module to pin sensor, 5 used on 12 inch row spacing units, 6 used on 10 inch row spacing units

5-6шт.

9

84202C1

SENSOR

PIN AND WIRE - blockage module, at furrow openers, 45 used on 12 inch row spacing units, 54 used on 10 inch row spacing units

45-54шт.

10

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - nylon tie, large, jumper harness to manifold pipes, not shown

1шт.

11

533959R1

CABLE TIE,.135" x 11"

STRAP - nylon tie, small, sensor wire to furrow opener hoses

1шт.
