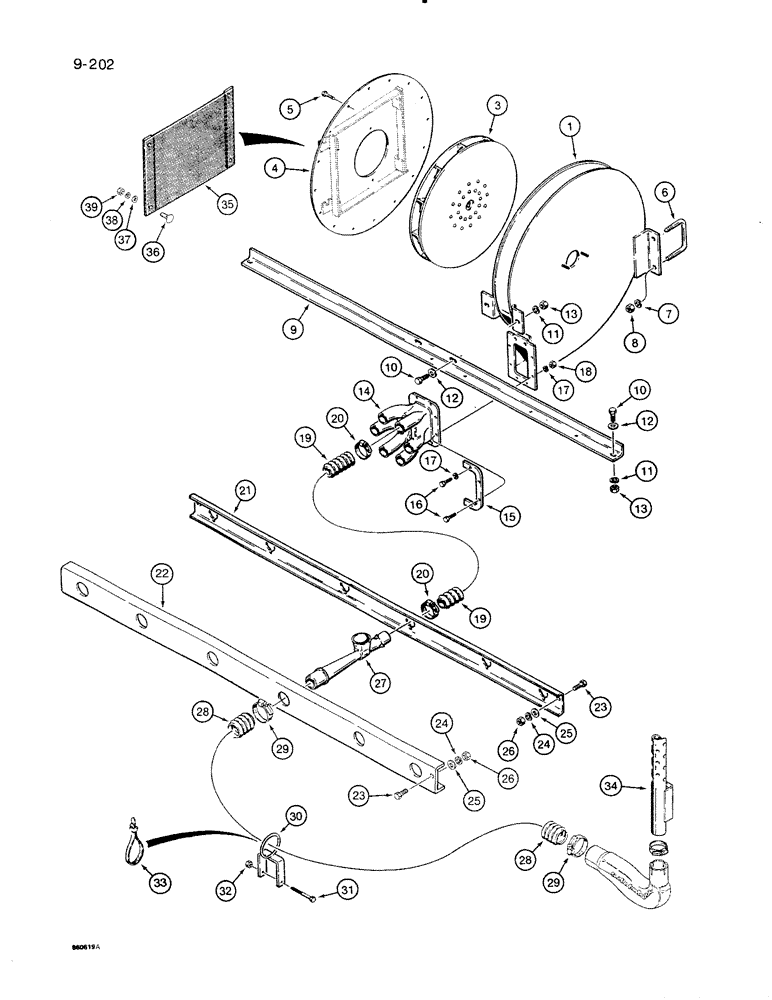

Запчасти Case IH 8500 (9-202) - AIR SYSTEM, FAN TO MANIFOLD PIPE, UNITS WITH 10 INCH ROW SPACING, 45 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS

1

842318C2

HOUSING ASSY.

HOUSING - 3-1/4" fan, air system

1шт.

3

843049C4

ROTOR ASSY.

IMPELLER - fan, 3-1/4"

1шт.

4

842316C1

HEAD ASSY.

COVER - impeller, 3-1/4" fan

1шт.

5

850679C1

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 3/4"

SCREW - hex head, self-tapping, 5/16" - 18 NC x 3/4"

16шт.

6

842977C1

BOLT

U-BOLT -, Serial Range: housing-frame

2шт.

7

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

8

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8" - 11 NC

4шт.

9

842967C1

ANGLE

SUPPORT - fan housing, rear

1шт.

10

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

- hex head, 1/2" - 13 NC x 1-1/4"

4шт.

11

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

12

20601R1

WASHER

- flat, 1/2"

4шт.

13

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

14

842069C1

MANIFOLD

- air, 6 outlet

1шт.

15

842563C1

REINFORCEMENT

PLATE - mounting, manifold

2шт.

16

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

- hex head, 5/16" - 18 NC x 1"

8шт.

17

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

18

120376

NUT,5/16"-18, G5

6шт.

19

REF

INSTRUCTION

HOSE - manifold to venturi, see page 9-219 for hose lengths

6шт.

20

995222R1

CLAMP

- hose, Serial Range: manifold-venturi

12шт.

21

97530C1

SUPPORT

- venturi, front

1шт.

22

97533C1

SUPPORT

- venturi, rear

1шт.

23

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

- hex head, 1/2" - 13 NC x 1-1/4"

4шт.

24

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

25

20601R1

WASHER

- flat, 1/2"

4шт.

26

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

27

96287C1

VENTURI

- air

6шт.

28

REF

INSTRUCTION

HOSE - venturi to manifold pipes

1шт.

see page 9-223 for hose lengths

6шт.

29

995224R1

CLAMP

- hose, venturi to manifold pipe

12шт.

30

842816C1

HOLDER

RETAINER - hose to frame, ring-type

10шт.

31

191127

BOLT,Hex, 5/16" - 18 x 5", Gr 5

- hex head, 5/16" - 18 NC x 5"

10шт.

32

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, self-locking, 5/16" - 18 NC

10шт.

33

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - tie, hose to ring retainer

1шт.

34

REF

INSTRUCTION

PIPE - manifold, see page 9-213 for continuation of air system

6шт.

35

117666A1

COVER

SCREEN - impeller cover, used when hydraulic oil cooler is not installed

1шт.

36

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

4шт.

37

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

38

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

39

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.
