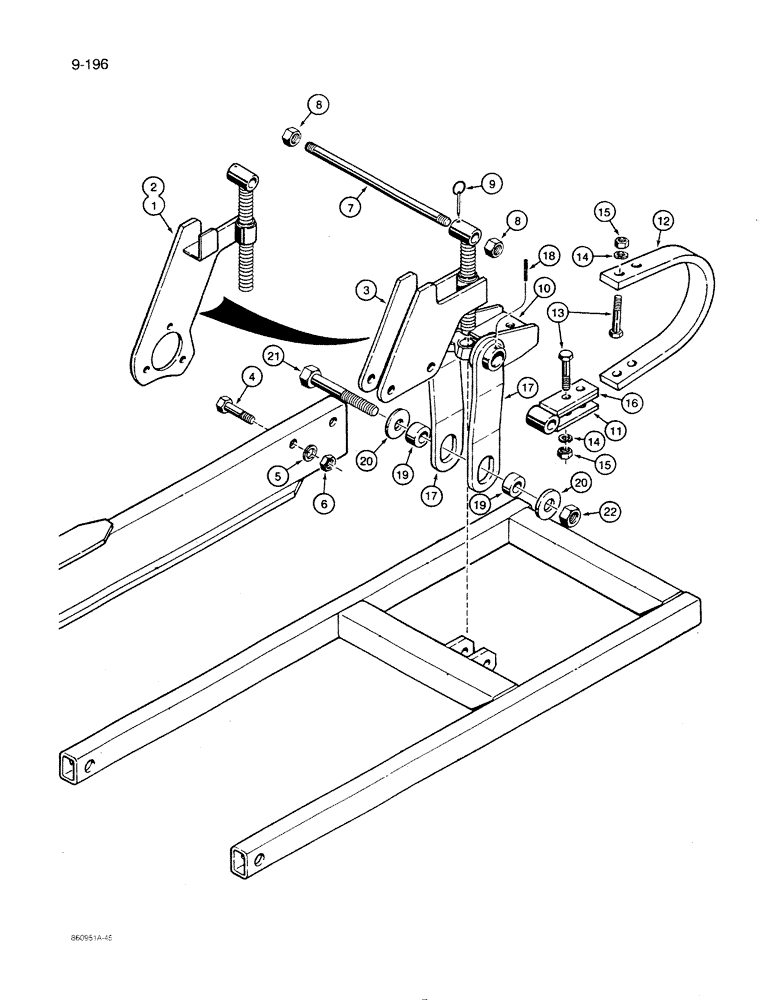

Запчасти Case IH 8500 (9-196) - PRESS WHEEL FRAME CUSHION PARTS, UNITS WITH 7 INCH ROW SPACING, 45 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS

1

1337389C1

SUPPORT

BRACKET AND ADJUSTING SCREW - press wheel, used with drill frame section number 6, see page 9-107

1шт.

for mounting parts

1шт.

2

1337390C1

SUPPORT

BRACKET AND ADJUSTING SCREW - press wheel, used with drill frame section number 1, not shown

1шт.

see page 9-103 for mounting parts

1шт.

3

1337392C1

ADJUSTMENT SCREW

BRACKET AND ADJUSTING SCREW - press wheel

1шт.

used with drill frame sections number 2, 3, 4 and 5

4шт.

4

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

- hex head, 5/8" - 11 NC x 3-1/2"

8шт.

5

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

6

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8" - 11 NC

8шт.

7

1337398C1

ROD,3/4" - 10 x 17 1/2"

HANDLE - adjusting screw

6шт.

8

280954

NUT,3/4"-10, G5

12шт.

9

1337334C1

PIN

- hitch, Klik type, 1/4" diameter x 2"

6шт.

10

1960455C1

TRUNNION

BRACKET - mounting, adjusting screw to press wheel frame

6шт.

11

1337394C2

SUPPORT

BRACKET- pivot mount, spring, lower

6шт.

12

1337393C1

SPRING

- cushion, press wheel

6шт.

13

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

- hex head, 5/8" - 11 NC x 3"

24шт.

14

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

24шт.

15

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8" - 11 NC

24шт.

16

1960458C1

SHIM

- press wheel cushion spring

6шт.

17

1960481C1

BAR

- cushion spring travel limiter

12шт.

18

19506R1

PIN,3/16" x 2", Coiled

12шт.

19

1960459C1

BUSHING

- travel limiter bar

12шт.

20

1960480C1

WASHER

- flat, travel limiter bar

12шт.

21

20300R1

SCREW,Hex, 3/4"-10 x 6", G5

BOLT - hex head, 3/4" - 10 NC x 6"

6шт.

22

9413971

LOCK NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4" - 10 NC

6шт.
