(9-194) - ROCK AND MUD GUARDS, PRESS WHEELS WITH 7 INCH ROW SPACING, 33 FOOT WIDE DRILL

Запчасти Case IH 8500 (9-194) - ROCK AND MUD GUARDS, PRESS WHEELS WITH 7 INCH ROW SPACING, 33 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS

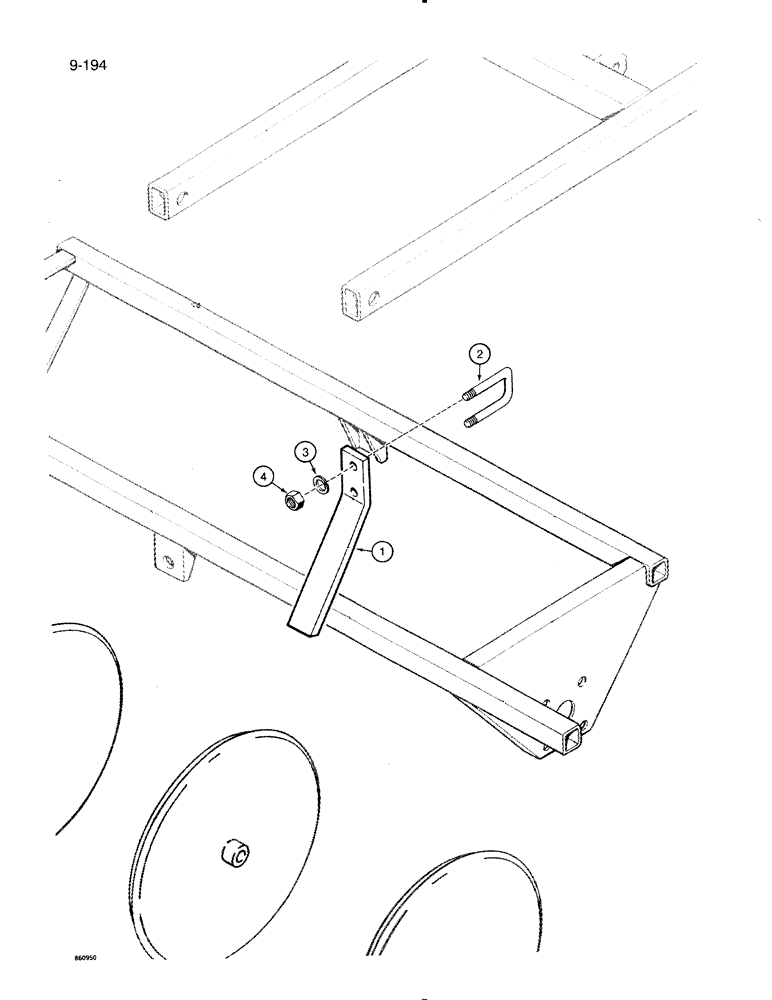

Схема запчастей Case IH 8500 - (9-194) - ROCK AND MUD GUARDS, PRESS WHEELS WITH 7 INCH ROW SPACING, 33 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS
2
3
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1337327C1

GUARD

- rock and mud, press wheel

49шт.

2

PO27435

U-BOLT

- guard to frame, 1/2" - 13 NC x 3-1/4"

49шт.

3

120384

WASHER,1/2"

LOCK, 1/2"

98шт.

4

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

98шт.
