Запчасти Case IH 8500 (9-190) - PRESS WHEELS, 33 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS

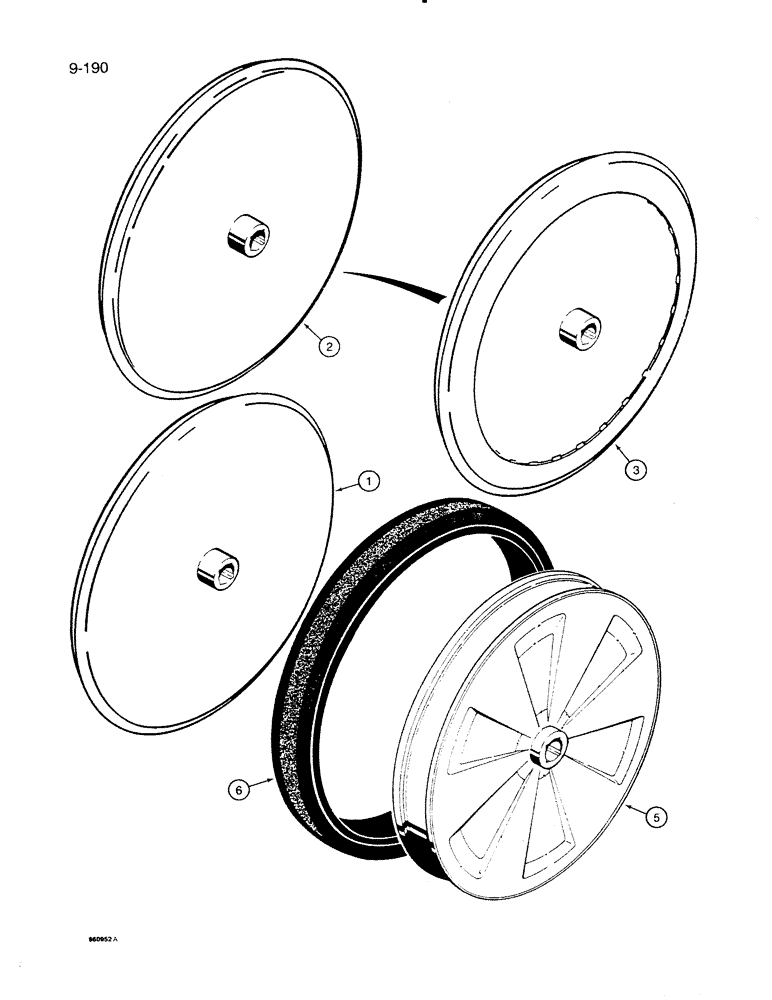

Схема запчастей Case IH 8500 - (9-190) - PRESS WHEELS, 33 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS
5
3
2
5
1

Артикул

Название

Примечание

Количество

1

80881C91

WHEEL,533.4mm OD x 60.33mm W

- press, convex steel, 2 inch wide

40-55шт.

2

81467C1

WHEEL

- press, convex steel, 3 inch wide, uncapped, standard

40-55шт.

3

1995524C1

PRESS

WHEEL - press, convex steel, 3 inch wide, capped, optional

40-55шт.

4

80882C91

WHEEL

- press, "V" steel, 3 inch wide, used with 10

1шт.

inch row drill only, not shown

40шт.

843264C91

PRESS

WHEEL ASSEMBLY - press, rubber

40-55шт.

5

NSS

NOT SOLD SEPARAT

WHEEL - press, used with rubber tire, 3 inch wide

1шт.

6

843188C1

TYRE/TIRE

TIRE - rubber, press wheel

1шт.

Выбрано товаров: 8
