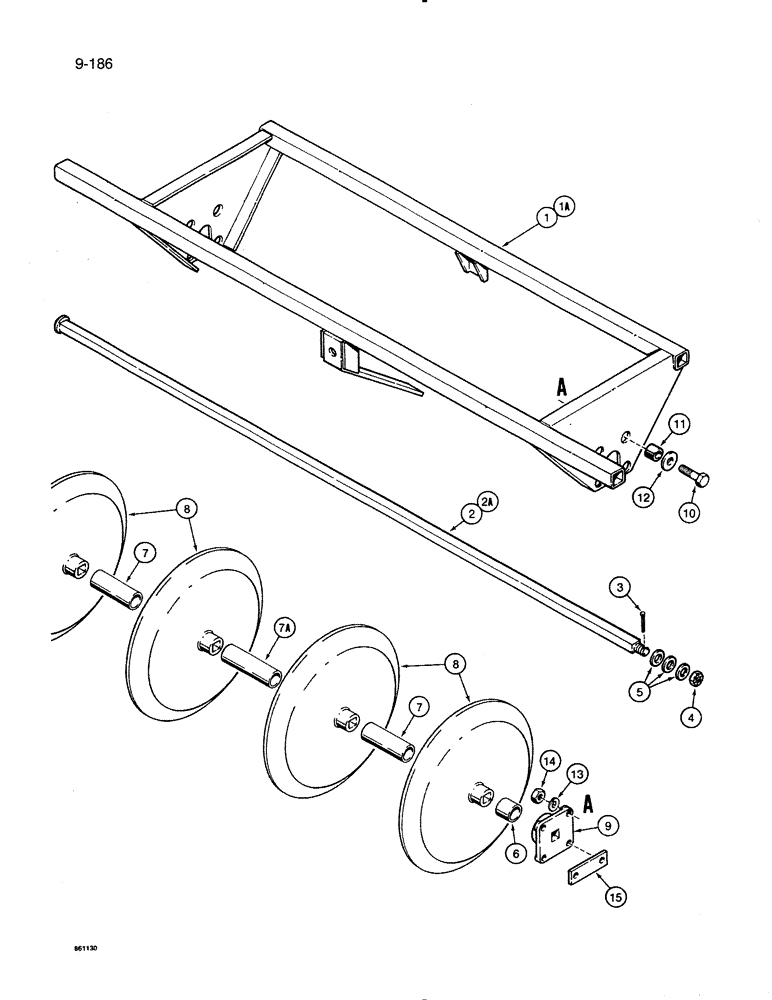

Запчасти Case IH 8500 (9-186) - PRESS WHEELS AND FRAMES, 3 INCH X 20 INCH V STEEL, UNITS W/ 12 INCH ROW SPACING, 45 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS

1

1337348C1

FRAME

- press wheel, 8 wheels per gang

3шт.

1a

1337347C1

FRAME

- press wheel, 7 wheels per gang, not shown

3шт.

2

1337335C1

SHAFT

AXLE - press wheel, 8 wheels per gang

3шт.

2a

1337336C1

DRILL

AXLE - press wheel, 7 wheels per gang, not shown

3шт.

3

108562

PIN,7/32" x 2"

Split (Cotter), 7/32" x 2"

6шт.

4

427649

SLOTTED NUT,1"-8, G5

NUT - hex, slotted, 1" - 8 NC

6шт.

5

496-21106

WASHER,1 1/16" x 2" x .209", HDN

- flat, 1"

18шт.

6

1337359C1

SPACER

- tube, press wheel, 2"

24шт.

7

1337365C1

SPACER

- tube, press wheel, 6-23/32" long

21шт.

7a

1337364C1

SPACER

- tube, press wheel, 8" long

6шт.

8

80882C91

WHEEL

- press, grain drill, "V" steel

45шт.

9

1337447C1

HOUSING ASSY.

BEARING - press wheel

12шт.

10

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex head, 5/8" - 11 NC x 2-1/4"

48шт.

11

1337369C1

SPACER

- bolt, 1/2"

48шт.

12

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- flat, 5/8"

48шт.

13

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

48шт.

14

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8" - 11 NC

48шт.

15

1337368C1

STRAP

- press wheel bearing

12шт.
