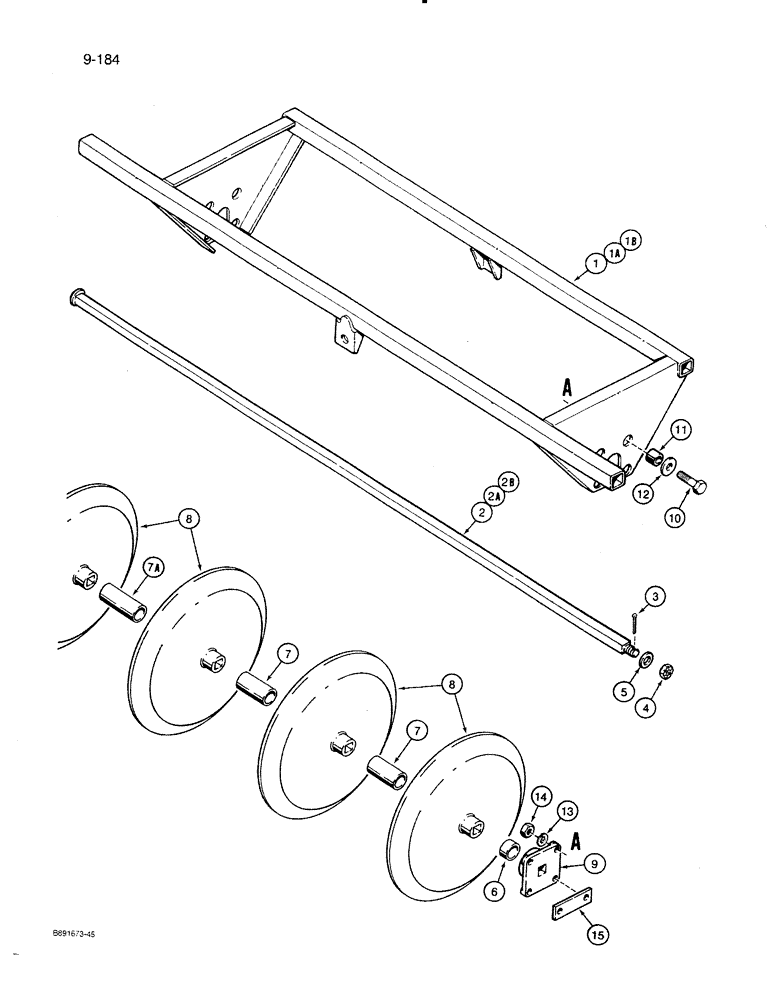

Запчасти Case IH 8500 (9-184) - PRESS WHEELS AND FRAMES, 3 INCH X 20 INCH V STEEL, UNITS W/ 10 INCH ROW SPACING, 33 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS

1

1337346C1

FRAME

- press wheel, 9 wheels per gang

2шт.

1a

1344604C1

FRAME

- press wheel, 6 wheels per gang, not shown

2шт.

1b

1344595C1

FRAME

- press wheel, 5 wheels per gang, not shown

2шт.

2

1337337C1

SHAFT

AXLE - press wheel, 9 wheels per gang

2шт.

2a

1344605C1

SHAFT

AXLE - press wheel, 6 wheels per gang, not shown

2шт.

2b

1344611C1

AXLE

- press wheel, 5 wheels per gang, not shown

2шт.

3

108562

PIN,7/32" x 2"

Split (Cotter), 7/32" x 2"

6шт.

4

427649

SLOTTED NUT,1"-8, G5

NUT - hex, slotted, 1" - 8 NC

6шт.

5

131019

SWEEP

- flat, 1"

6шт.

6

1337370C1

SPACER

- tube, press wheel, 1" long

24шт.

7

1337363C1

SPACER

- tube, press wheel, 4-23/32" long

16шт.

7a

1337362C1

SPACER

- tube, press wheel, 6" long

6шт.

8

80882C91

WHEEL

- press, grain drill, "V" steel

40шт.

9

1337447C1

HOUSING ASSY.

BEARING - press wheel

12шт.

10

271724

PIN,Hex, 5/8" - 11 x 2 1/4", Gr 5

- hex head, 5/8" - 11 NC x 2-1/4"

48шт.

11

1337369C1

SPACER

- bolt, 1/2" long

48шт.

12

NLS

NO LONGER SERVICED

- flat, 5/8"

48шт.

13

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

48шт.

14

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8" - 11 NC

48шт.

15

1337368C1

STRAP

- press wheel bearing

12шт.
