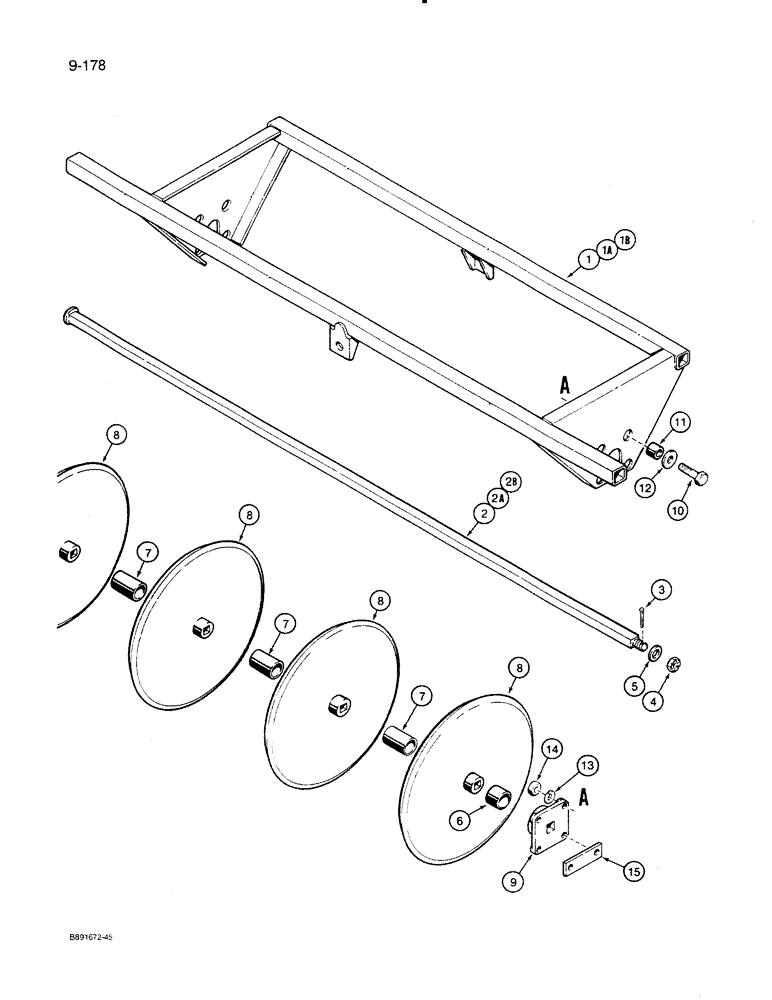

Запчасти Case IH 8500 (9-178) - PRESS WHEELS AND FRAMES, 20" CONVEX STEEL AND 20" RUBBER, UNITS WITH 10" ROW SPACING, 33 WIDE DRILL (09) - CHASSIS/ATTACHMENTS

1

1337346C1

FRAME

- press wheel, 9 wheels per gang

2шт.

1a

1344604C1

FRAME

- press wheel, 6 wheels per gang, not shown

2шт.

1b

1344595C1

FRAME

- press wheel, 5 wheels per gang, not shown

2шт.

2

1337342C1

AXLE

- press wheel, 9 wheels per gang

2шт.

2a

1344606C1

AXLE

- press wheel, 6 wheels per gang, not shown

2шт.

2b

1344610C1

AXLE

- press wheel, 5 wheels per gang, not shown

2шт.

3

108562

PIN,7/32" x 2"

Split (Cotter), 7/32" x 2"

6шт.

4

427649

SLOTTED NUT,1"-8, G5

NUT - hex, slotted, 1" - 8 NC

6шт.

5

496-21106

WASHER,1 1/16" x 2" x .209", HDN

- flat, 1"

6шт.

6

1337355C1

SPACER

- tube, press wheel, 2-37/64" long

24шт.

7

1337356C1

SPACER

- tube, press wheel, 6-19/32" long

22шт.

8

REF

INSTRUCTION

WHEEL - press, grain drill, see page 9-191 for wheel options

40шт.

9

1337447C1

HOUSING ASSY.

BEARING - press wheel

12шт.

10

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex head, 5/8" - 11 NC x 2-1/4"

48шт.

11

1337369C1

SPACER

- bolt, 1/2" long

48шт.

12

131016

WASHER

- flat, 5/8"

48шт.

13

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

48шт.

14

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8" - 11 NC

48шт.

15

1337368C1

STRAP

- press wheel bearing

12шт.
