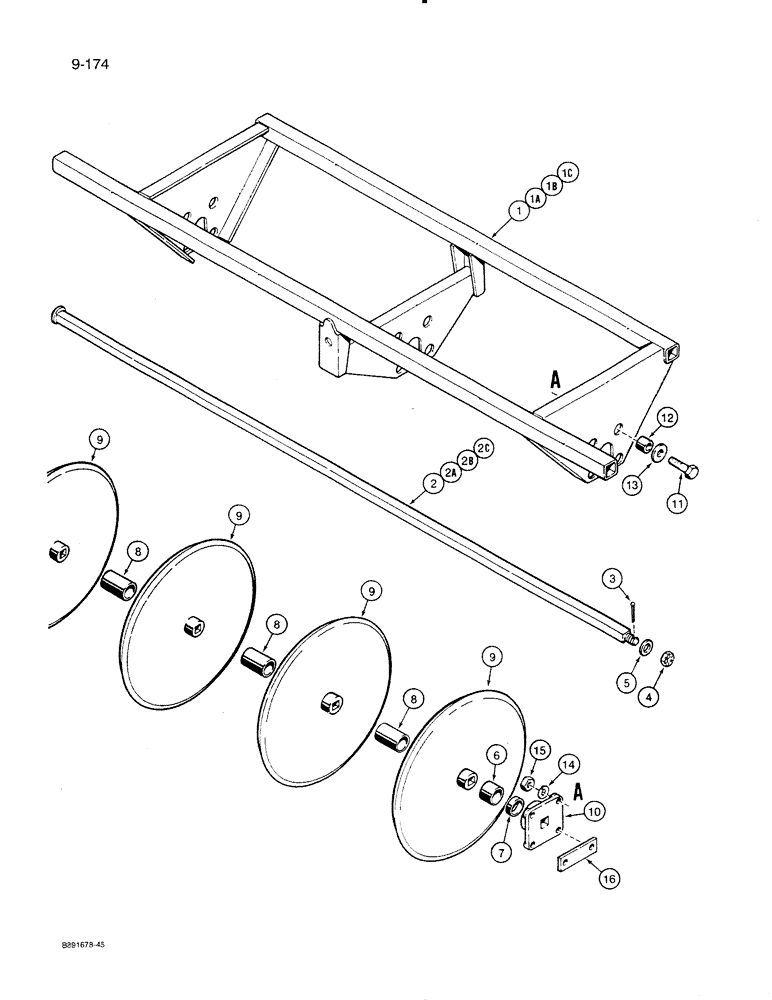

Запчасти Case IH 8500 (9-174) - PRESS WHEELS AND FRAMES, 20" CONVEX STEEL AND 20" RUBBER, UNITS WITH 7" ROW SPACING, 33 WIDE DRILL (09) - CHASSIS/ATTACHMENTS

1

1337345C1

FRAME

- press wheel, 13 wheels per gang

1шт.

1a

1337344C1

FRAME

- press wheel, 12 wheels per gang, not shown

1шт.

1b

1344601C1

FRAME

- press wheel, 8 wheels per gang, not shown

2шт.

1c

1344593C1

FRAME

- press wheel, 7 wheels per gang, not shown

2шт.

2

1337341C1

AXLE

- press wheel, 13 wheels per gang

1шт.

2a

1337340C1

AXLE

- press wheel, 12 wheels per gang, not shown

1шт.

2b

1344602C1

AXLE

- press wheel, 8 wheels per gang, not shown

2шт.

2c

1344630C1

AXLE

- press wheel, 7 wheels per gang, not shown

2шт.

3

108562

PIN,7/32" x 2"

Split (Cotter), 7/32" x 2"

6шт.

4

427649

SLOTTED NUT,1"-8, G5

NUT - hex, slotted, 1" - 8 NC

6шт.

5

496-21106

WASHER,1 1/16" x 2" x .209", HDN

- flat, 1"

6шт.

6

1337352C1

SPACER

- tube, press wheel, 1-9/16" long

14шт.

7

1337351C1

SPACER

- tube, press wheel, 9/16" long

12шт.

8

1337350C1

SPACER

- tube, press wheel, 3-19/32" long

35шт.

9

REF

INSTRUCTION

WHEEL - press, grain drill, see page 9-191 for wheel options

55шт.

10

1337447C1

HOUSING ASSY.

BEARING - press wheel

14шт.

11

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex head, 5/8" - 11 NC x 2-1/4"

56шт.

12

1337369C1

SPACER

- bolt, 1/2" long

56шт.

13

131016

WASHER

- flat, 5/8"

56шт.

14

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

56шт.

15

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8" -11 NC

56шт.

16

1337368C1

STRAP

- press wheel bearing

14шт.
