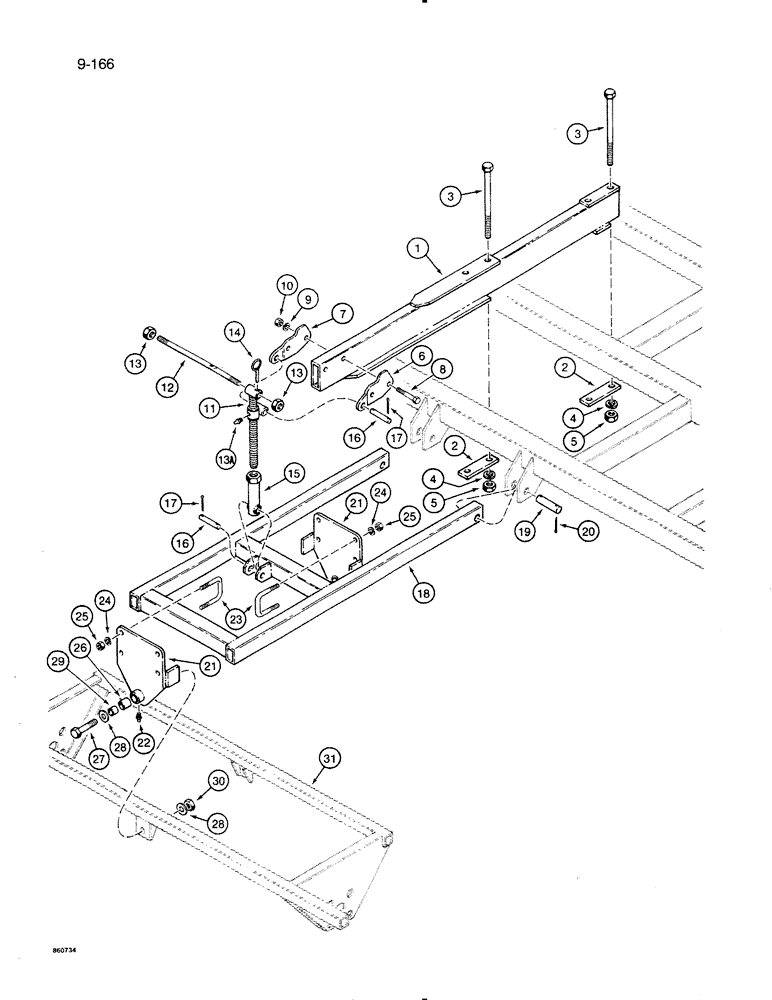

Запчасти Case IH 8500 (9-166) - PRESS WHEEL FRAME AND MOUNTING PARTS, USED WITH FRAME SECTIONS 2, 3, 4, AND 5, 45 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS

1

1337326C1

SUPPORT

ARM - mounting, press wheel screw

4шт.

2

1337329C1

PLATE

-, Serial Range: arm-frame

8шт.

3

22965R1

BOLT,Hex, 3/4" - 10 x 13 1/4", Gr 8

- hex head, 3/4" - 10 NC x 13"

16шт.

4

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

16шт.

5

280954

NUT,3/4"-10, G5

16шт.

6

1337325C1

PLATE

BRACKET - mounting, adjusting screw, right-hand

4шт.

7

1337324C1

PLATE

BRACKET - mounting, adjusting screw, left-hand

4шт.

8

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

- hex head, 5/8" - 11 NC x 3-1/2"

8шт.

9

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

10

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8" - 11 NC

8шт.

11

1337328C1

ADJUSTMENT SCREW

- adjusting, frame

4шт.

12

1337398C1

ROD,3/4" - 10 x 17 1/2"

HANDLE - adjusting screw

4шт.

13

280954

NUT,3/4"-10, G5

8шт.

13a

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

4шт.

14

1337334C1

PIN

- hitch, spring, 1/4" diameter x 2" long

4шт.

15

1337332C1

TUBE

- adjusting screw

4шт.

16

1337397C1

PIN

- mounting, adjusting screw and tube

8шт.

17

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

16шт.

18

1337331C1

HANGER

FRAME - mounting, press wheel, 19 inch inside

1шт.

dimension between arms

4шт.

19

1337399C1

PIN

- press wheel frame to drill frame

8шт.

20

432-1232

COTTER PIN,3/16" OD x 2" L

Pin, Split (Cotter), 3/16" x 1 3/4"

16шт.

21

1337333C1

HANGER

BRACKET - mounting, press wheel, Start Serial: frame

1шт.

mounting frame

8шт.

22

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

8шт.

23

1337378C1

BOLT

U-BOLT -, Serial Range: bracket-frame

16шт.

24

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

32шт.

25

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8" - 11 NC

32шт.

26

1337424C1

BUSHING

- bracket

8шт.

27

271821

BOLT,Hex, 7/8" - 9 x 3 1/2", Gr 5

- hex head, 7/8" - 9 NC x 3-1/2"

8шт.

28

27820R1

WASHER

- flat, 7/8"

16шт.

29

1337388C1

SLEEVE

SPACER - bolt, Serial Range: frame-bracket

8шт.

30

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

8шт.

31

REF

INSTRUCTION

PRESS WHEELS AND FRAME - drill, see pages 9-173, 9-177

1шт.

9-181, 9-183 and 9-187 for options

1шт.
