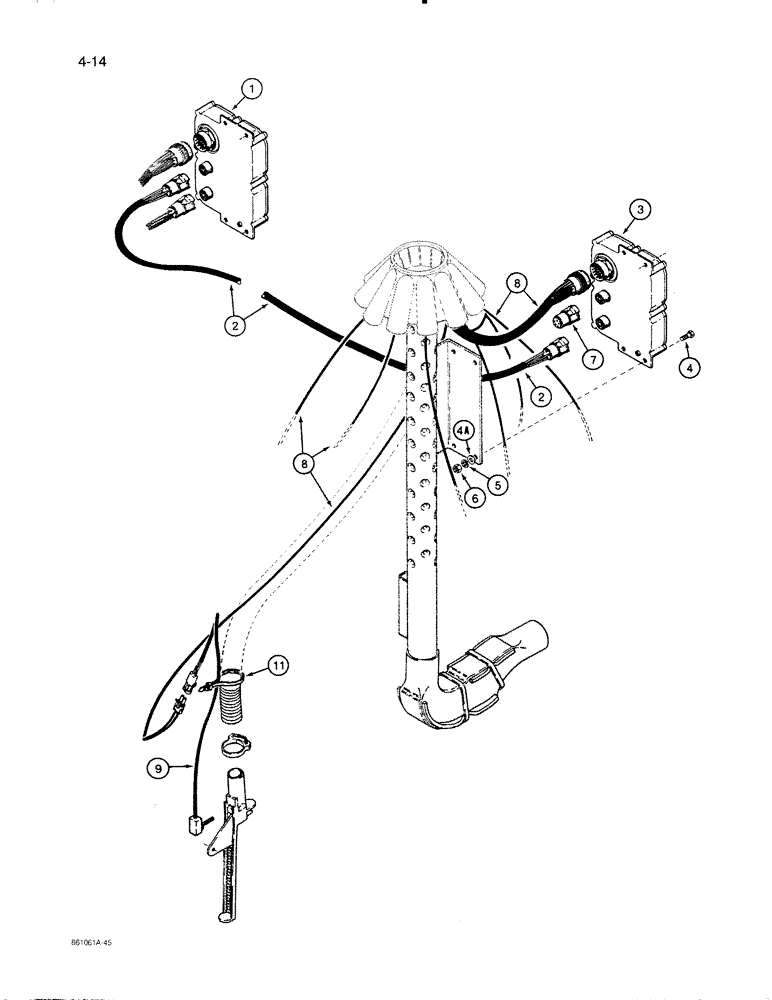

Запчасти Case IH 8500 (4-14) - BLOCKAGE MODULES & PIN SENSORS, UNITS W/ 7" ROW SPACING & BLOCKAGE MONITOR SYS., 45 FOOT WIDE DRILL (04) - ELECTRICAL SYSTEMS

1

91482C2

CONTROL

MODULE - blockage, number 3 and 4, see page 4-11 for tool

1шт.

bar harness connection

2шт.

2

91801C1

HARNESS

- jumper, to blockage modules 1, 2, 5, 6 and 7

5шт.

3

91482C2

CONTROL

MODULE - blockage, new, number 1, 2, 5, 6 and 7, see page

1шт.

4-7, item 6 for remanufactured module and return part numbers

5шт.

4

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

20шт.

4a

120392

WASHER,1/4", SAE

- flat, 1/4"

20шт.

5

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

20шт.

6

120375

NUT,Hex, 1/4" - 20, Gr 5

20шт.

7

1337046C1

PLUG

- terminator, blockage module, used at number 1

1шт.

and 7 modules

2шт.

8

91800C1

HARNESS

- at manifold pipe, blockage module to pin sensor

7шт.

9

84202C1

SENSOR

PIN AND WIRE - blockage module, at furrow openers

77шт.

10

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - nylon tie, large, jumper harness to manifold

1шт.

pipes, not shown

1шт.

11

533959R1

CABLE TIE,.135" x 11"

STRAP - nylon tie, small, sensor wire to furrow opener

1шт.

hoses

1шт.
