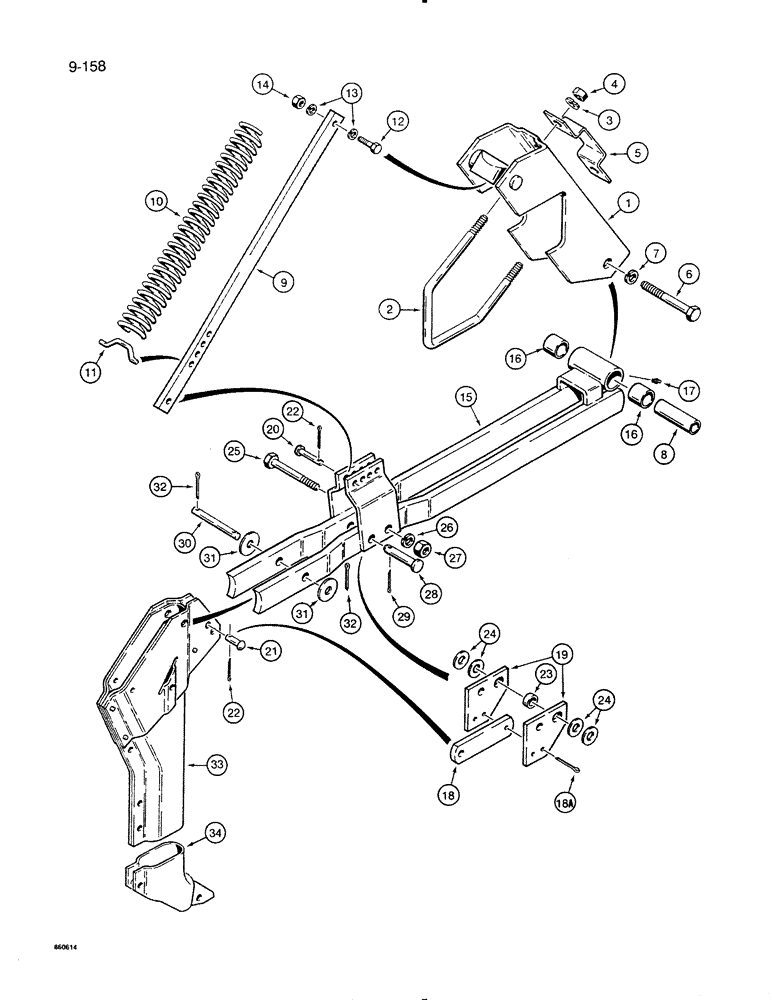

Запчасти Case IH 8500 (9-158) - FURROW OPENER, WITH SHEAR TRIP POINT, 45 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS

1

1337319C1

BRACKET

- mounting, opener

1шт.

2

1337386C1

BOLT

U-BOLT -, Serial Range: bracket-frame

1шт.

3

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

4

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8" - 11 NC

2шт.

5

1337426C1

CLIP

RETAINER -, Serial Range: hose-opener

1шт.

6

271732

SWASH PLATE,Hex, 5/8" - 11 x 4 1/4", Gr 5

- hex head, 5/8" - 11 NC x 4-1/4"

1шт.

7

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

8

88909C1

TUBE,16.129 mm ID x 22.352 mm OD x 76.2 mm L

SPACER - bracket

1шт.

9

1337320C1

ROD

BAR - opener float spring

1шт.

10

1337387C1

SPRING

- opener float

1шт.

11

1337321C1

CLIP

RETAINER - float spring

1шт.

12

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1"

1шт.

13

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

14

120377

NUT,3/8" - 16, Gr 5

1шт.

89090C91

BAR

DRAWBAR ASSEMBLY - opener, see page 9-157, item 5, for special drawbar, if used

1шт.

15

NSS

NOT SOLD SEPARAT

DRAWBAR - opener

1шт.

16

88901C1

BUSHING,22.45mm ID x 28.35mm OD x 25.4mm L

- pivot, drawbar

2шт.

17

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

18

1279376C1

LINK

- shear trip

1шт.

18a

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

19

818082C2

BAR

-, Serial Range: link-drawbar

2шт.

20

28234R1

HEADED PIN,3/8" x 1 1/2"

PIN - clevis, float spring bar to drawbar, 3/8" x 1-1/2"

1шт.

21

4837S

HEADED PIN,3/8" x 1"

PIN - clevis, trip link to opener, 3/8" x 1"

1шт.

22

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

23

610395R1

SPACER,1/2" X-Strng Pipe x 3/8"

- link support

1шт.

24

495-11053

WASHER,1/2", SAE

- flat, 1/2", used as spacer

4шт.

25

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

BOLT - hex head, 1/2" - 13 NC x 3-1/2"

1шт.

26

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

27

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

28

22804R1

HEADED PIN,1/2" x 2 1/2"

PIN - clevis, bar to drawbar, 1/2" x 2-1/2"

1шт.

29

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

30

1279374C1

PIN

- furrow, Serial Range: opener-drawbar

1шт.

31

21782R1

WASHER

- flat, 5/8"

2шт.

32

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

33

89185C1

OPENER

- furrow

1шт.

34

REF

INSTRUCTION

ADAPTER - point to opener, see page 9-163 for

1шт.

points and deflectors

1шт.
